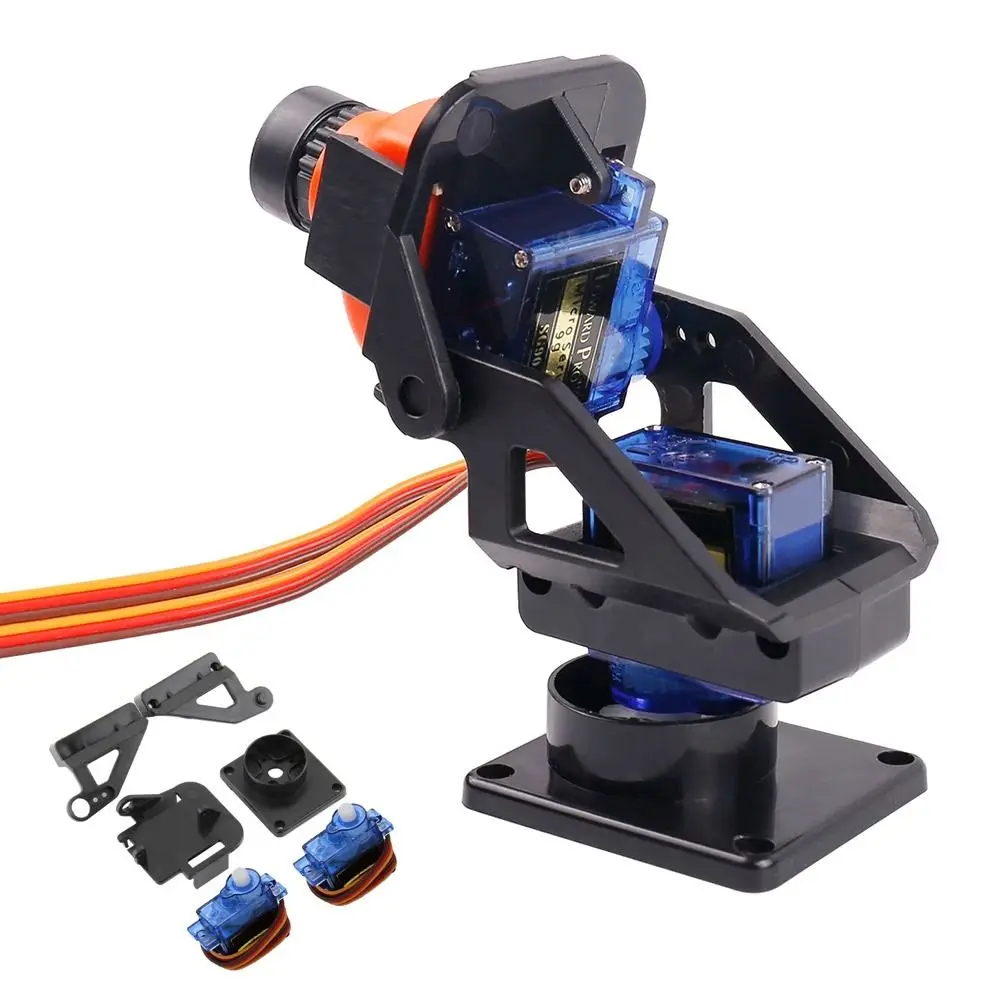

PTZ Ultrasonic Aviation Model Camera Installation FPV Camera Support Accessories Rc Aircraft Parts FPV Servo Gimbal Bracket

Brand new and high quality
Product size: 30.9 x 31.8 x 12.5 mm
Product torque: 1.6kg/cm (4.8V)
Operating voltage: 4.8V
Operating temperature: 0-55 degrees
Operation dead zone: 10us
Gear media: Nylon
Operating mode: Analog
The use of ordinary micro-motor, tension is second only to the 9g standard version of the servo, is currently a super good cost performance of the servo!
Due to the reduced tension, the manufacturer recommends only for ordinary small electric aircraft model, not recommended for larger fixed-wing and electric helicopter use!

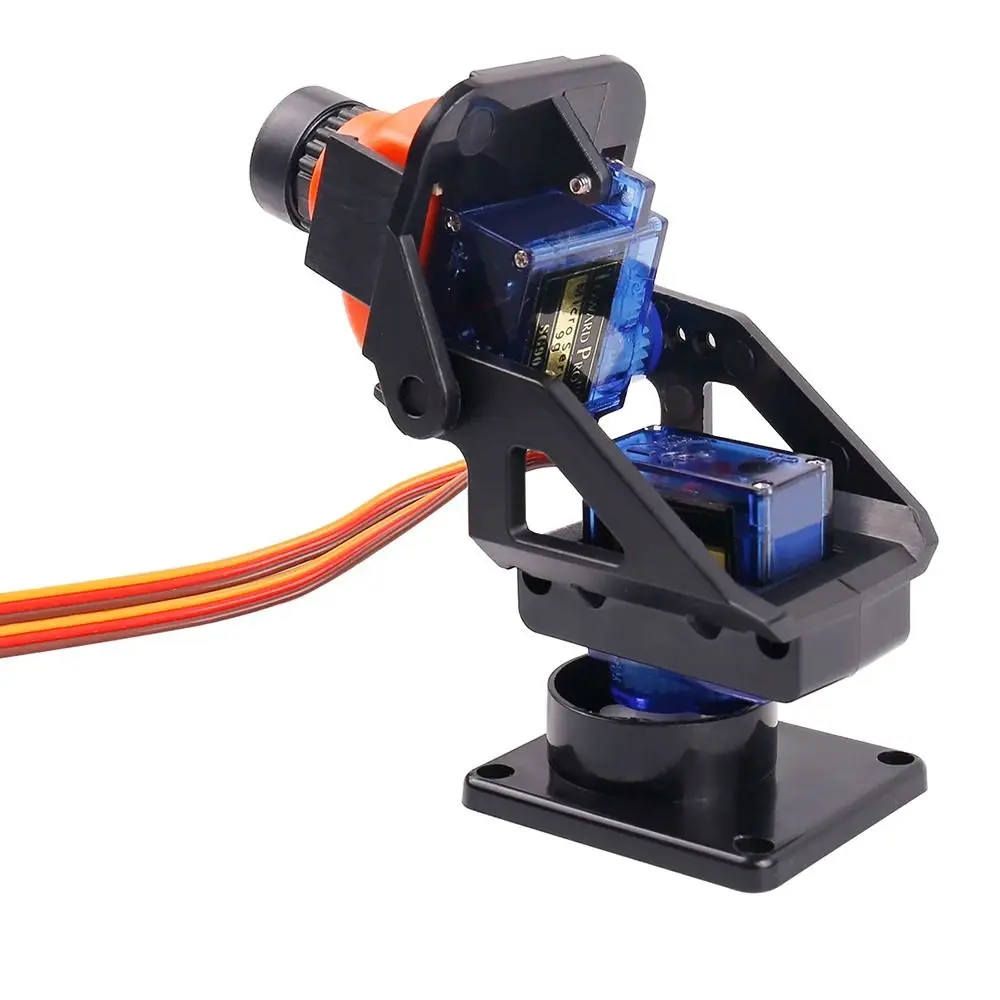

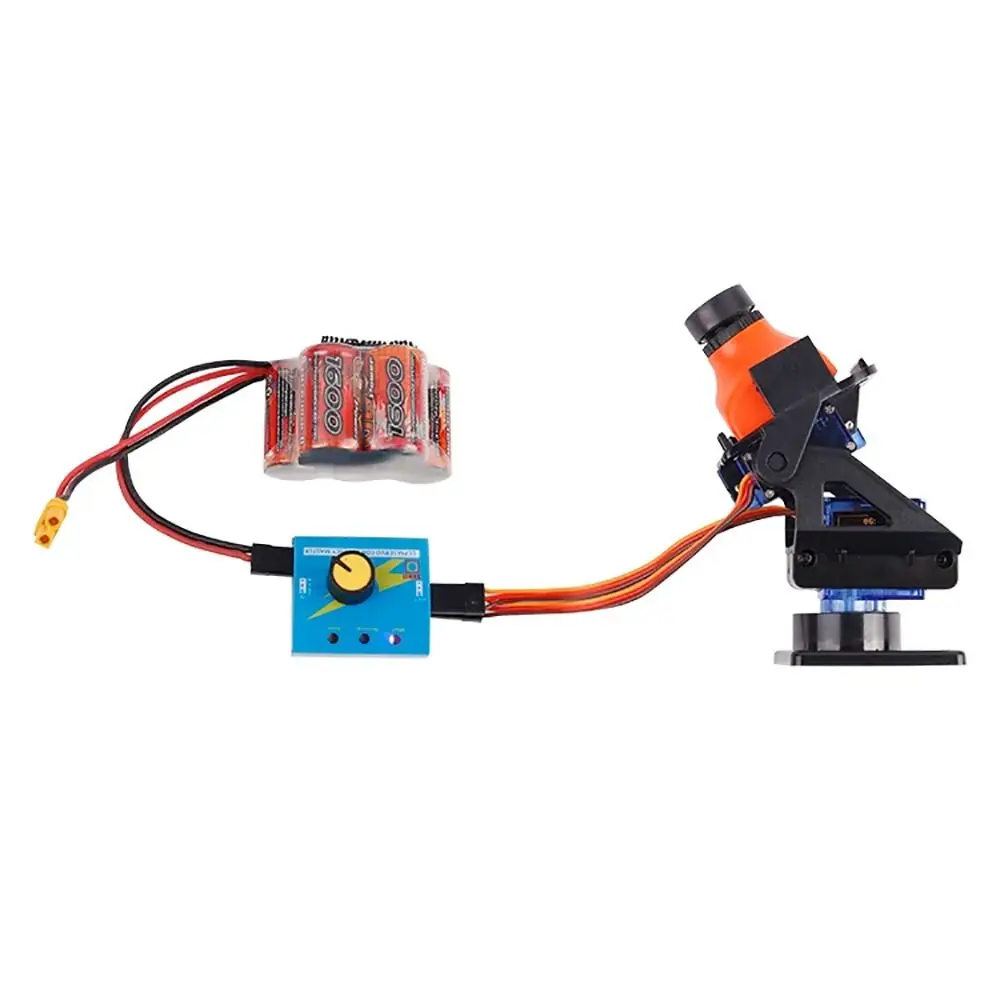

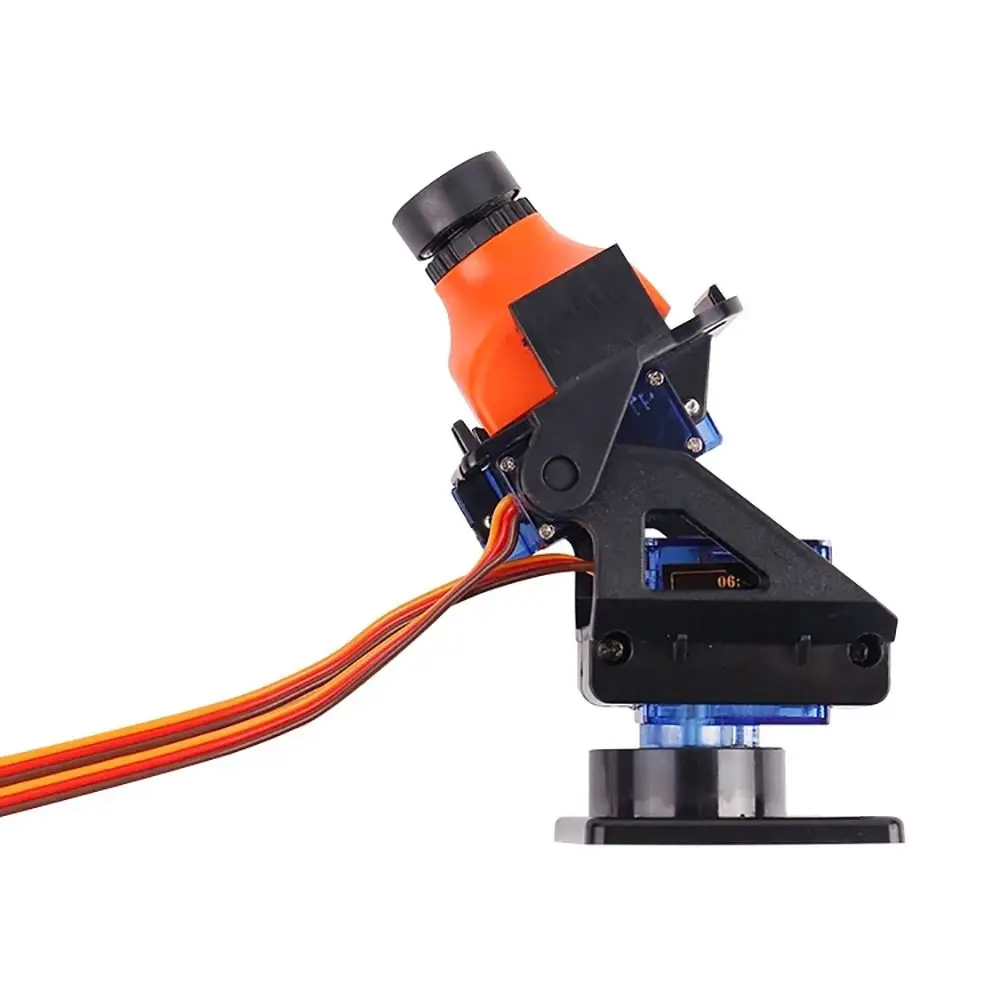

Note: the pictures show the complete installation effect. The steering gear and camera need to be purchased separately. This pan tilt can only be assembled with steering gear and camera.

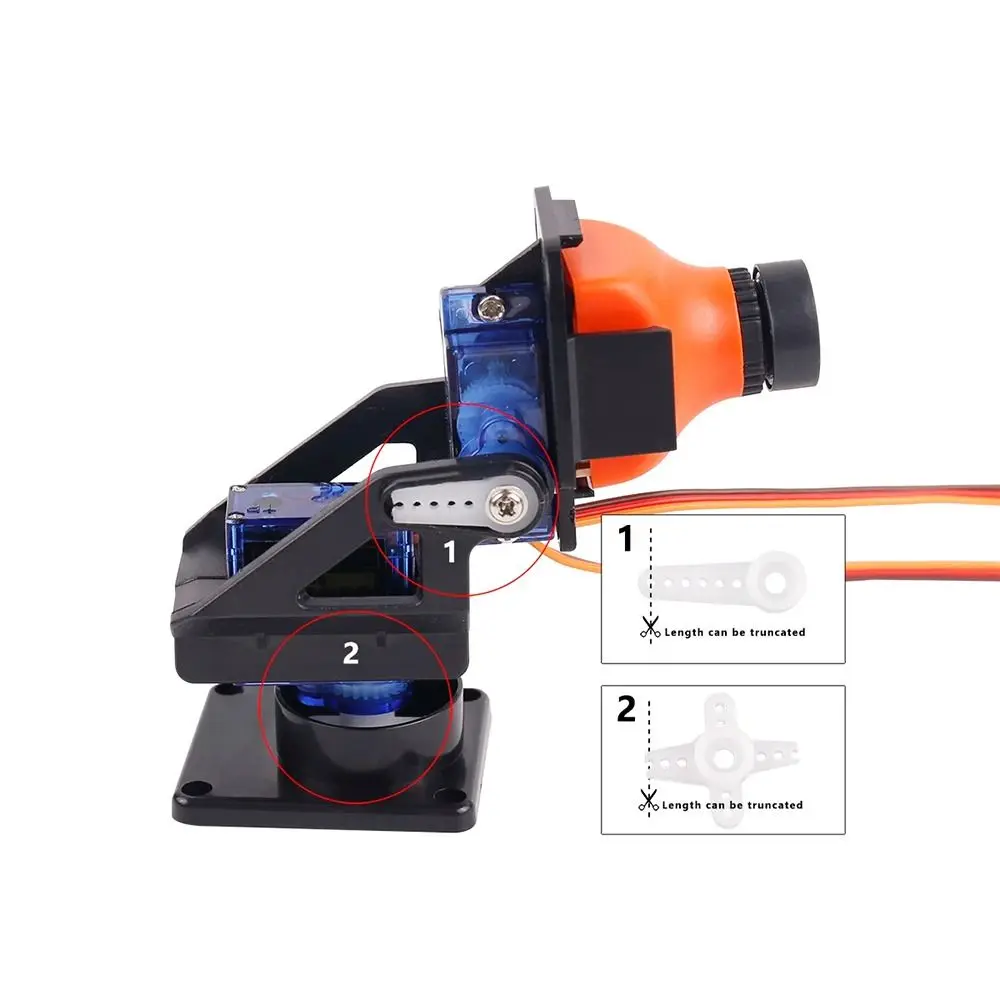

The rocker arm of the steering gear needs to be cut off a little before installation, and the installation of the steering gear on the base also needs to modify the rocker arm (remove the edge of the round hole, and then put the rocker arm in or trim the steering gear arm)!

At present, this kind of PTZ can only be installed with 28*28 camera modules, not 32 or 38 size cameras. (please know that the rudder arm of the steering gear needs to be trimmed.)

The 2-axis plastic pan tilt weighs 17 grams, which is suitable for 9g-12g steering gear. It has beautiful appearance, precise manufacture, no virtual position and no shaking. It has a steering gear wire winding clamp.

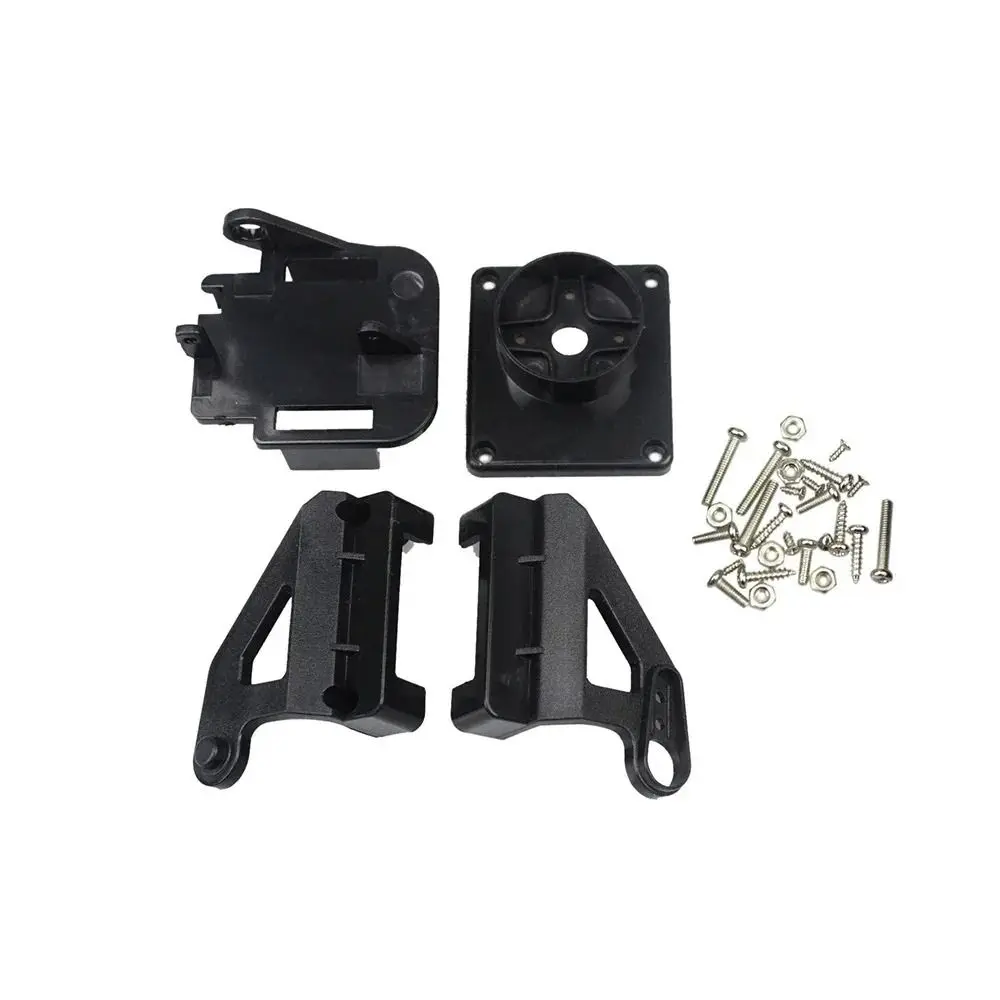

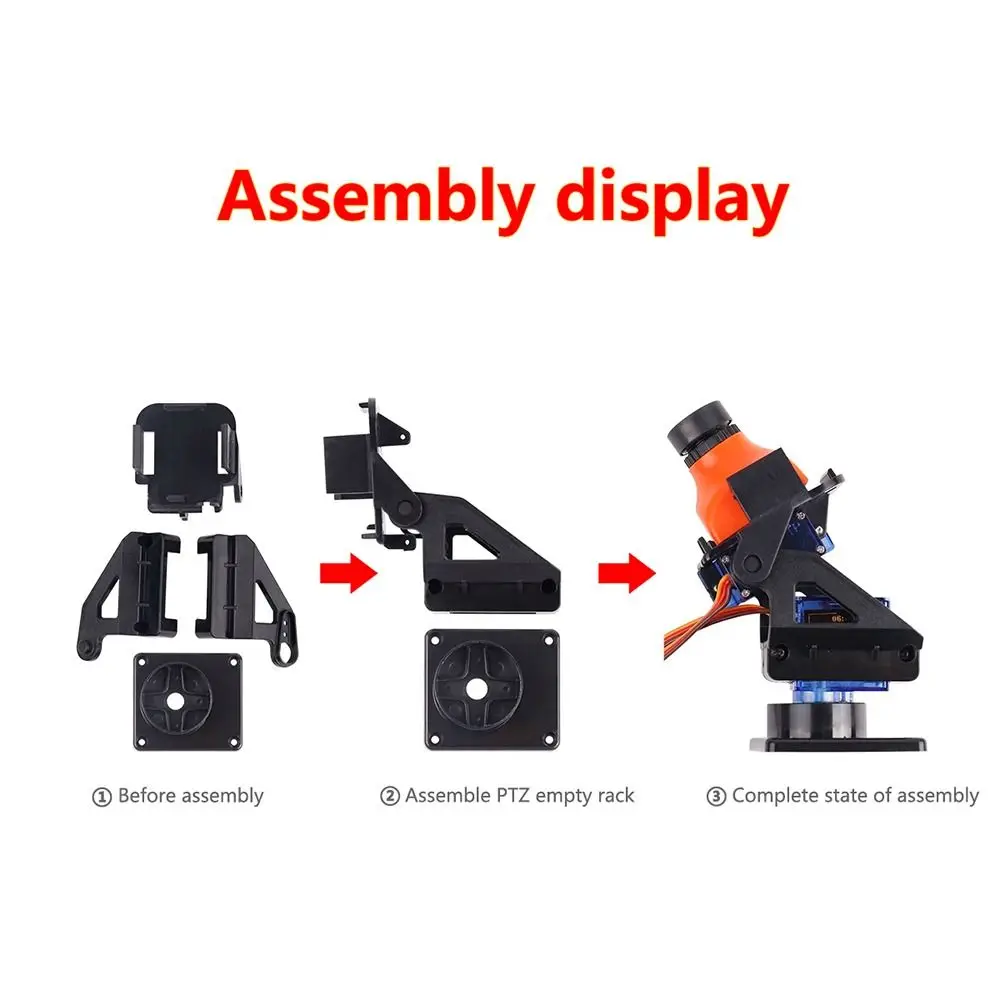

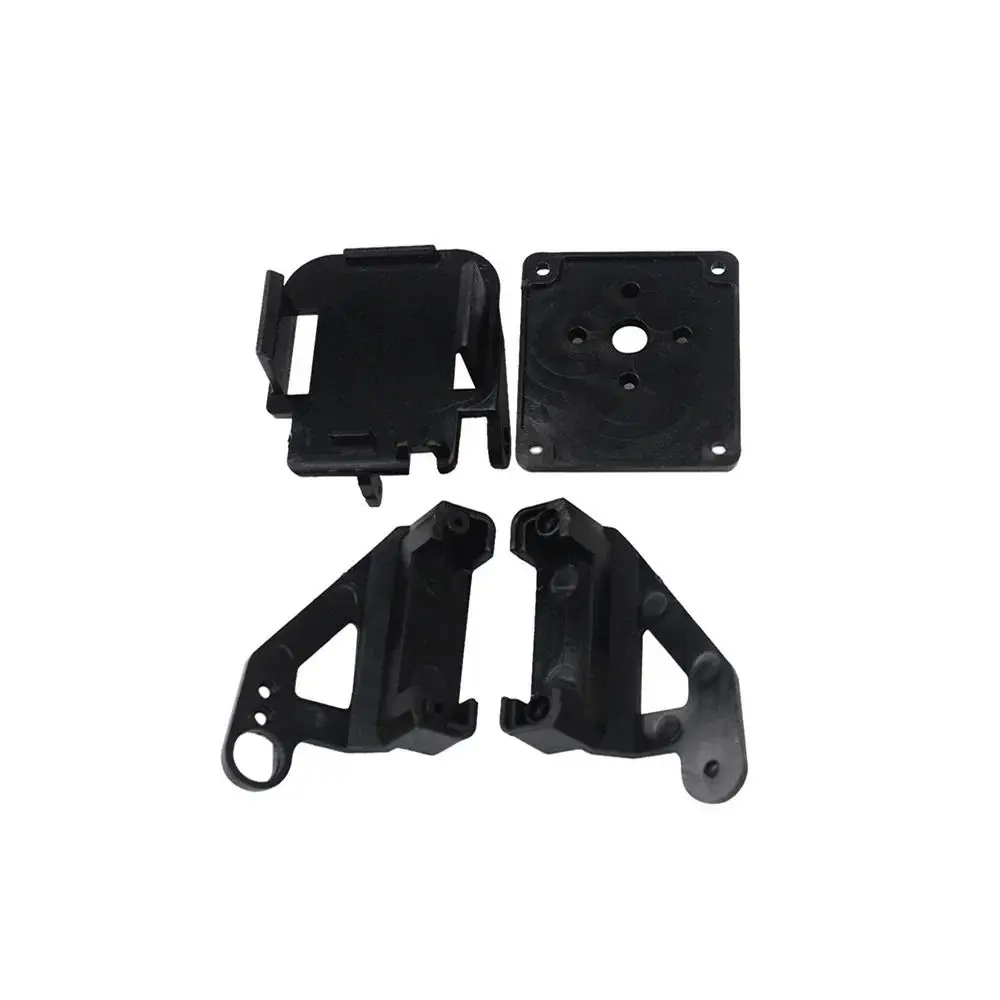

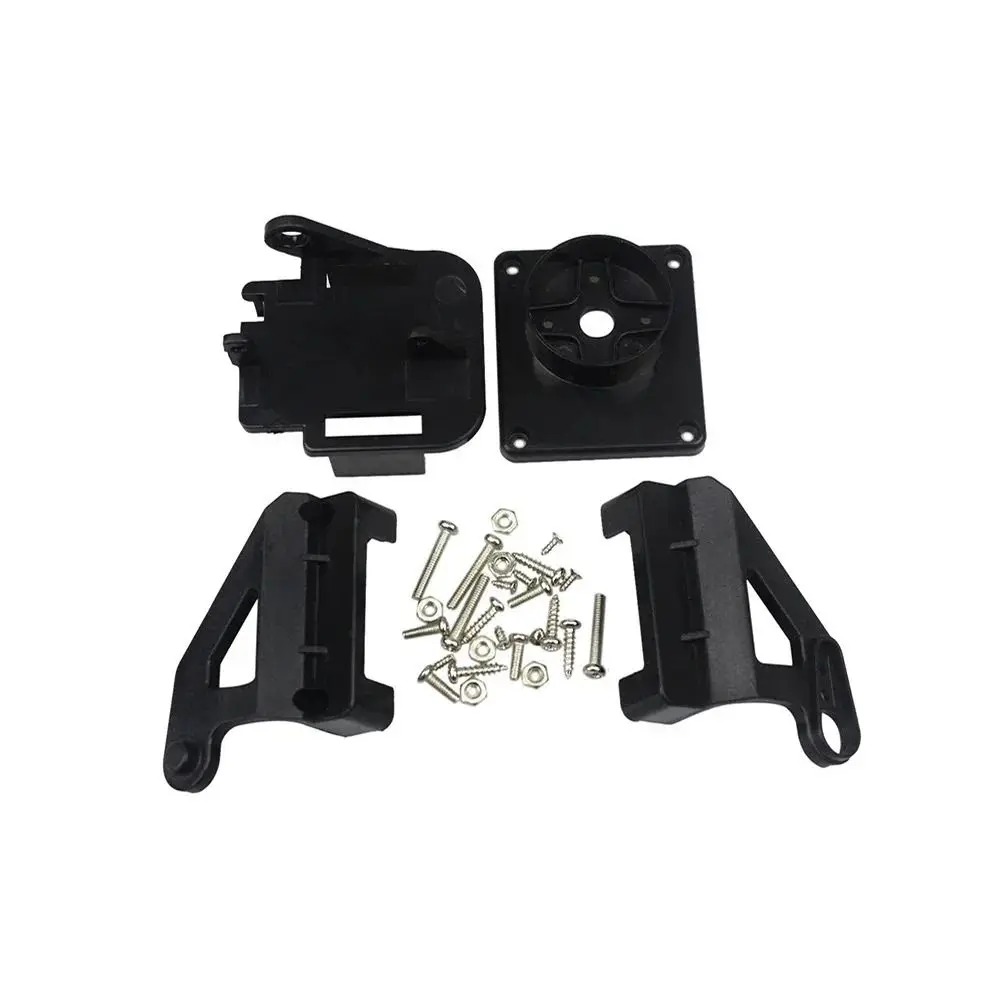

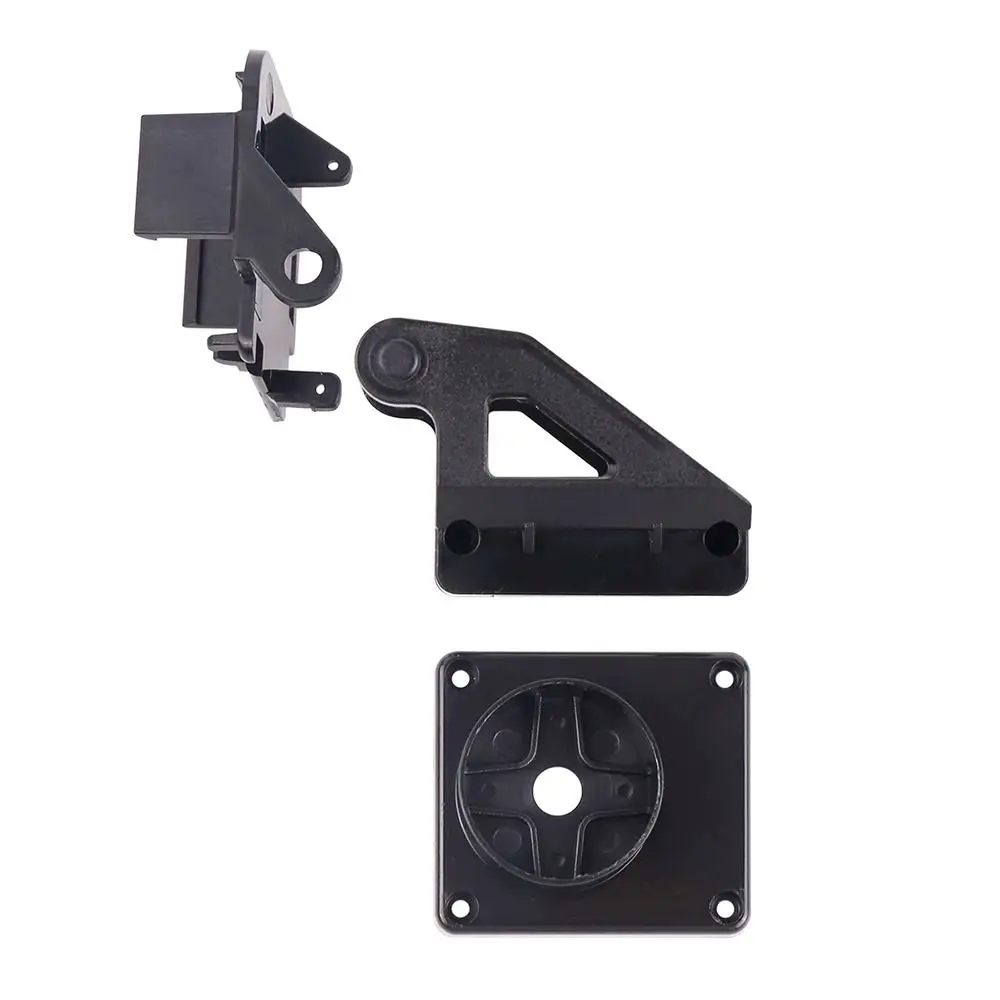

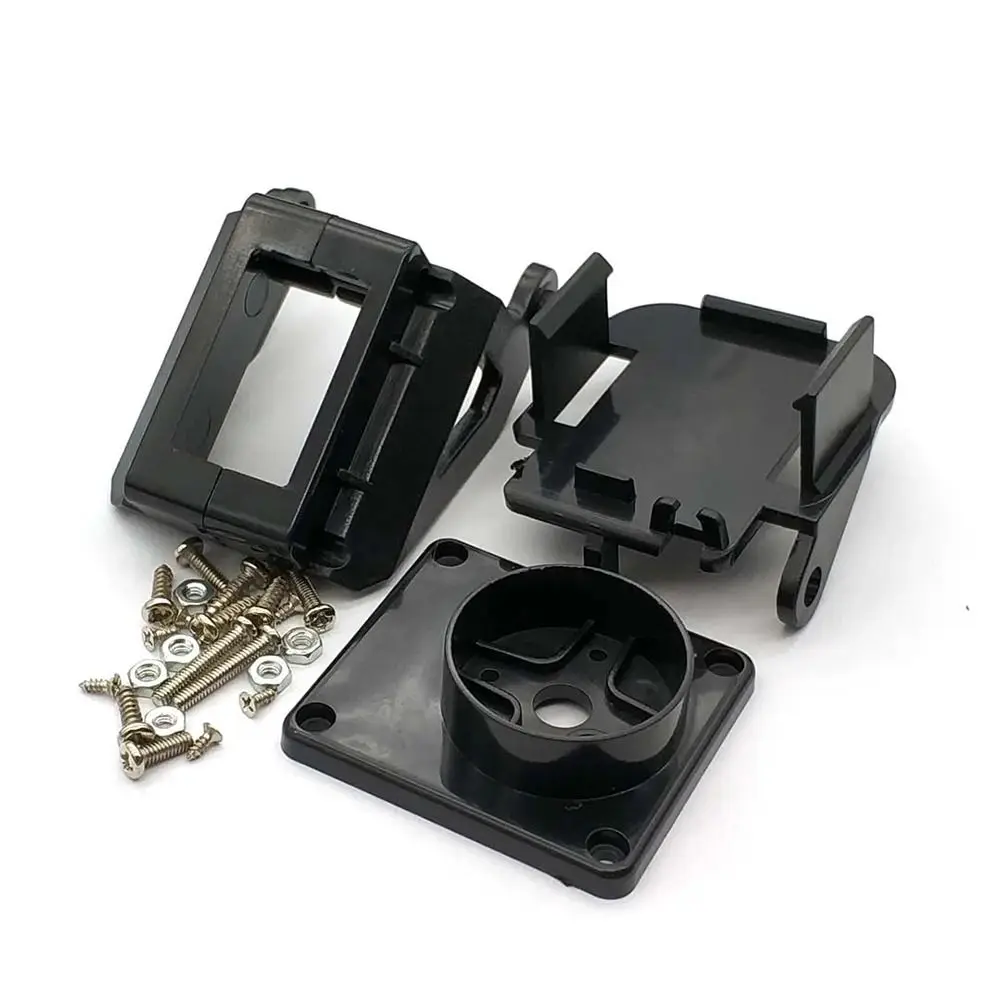

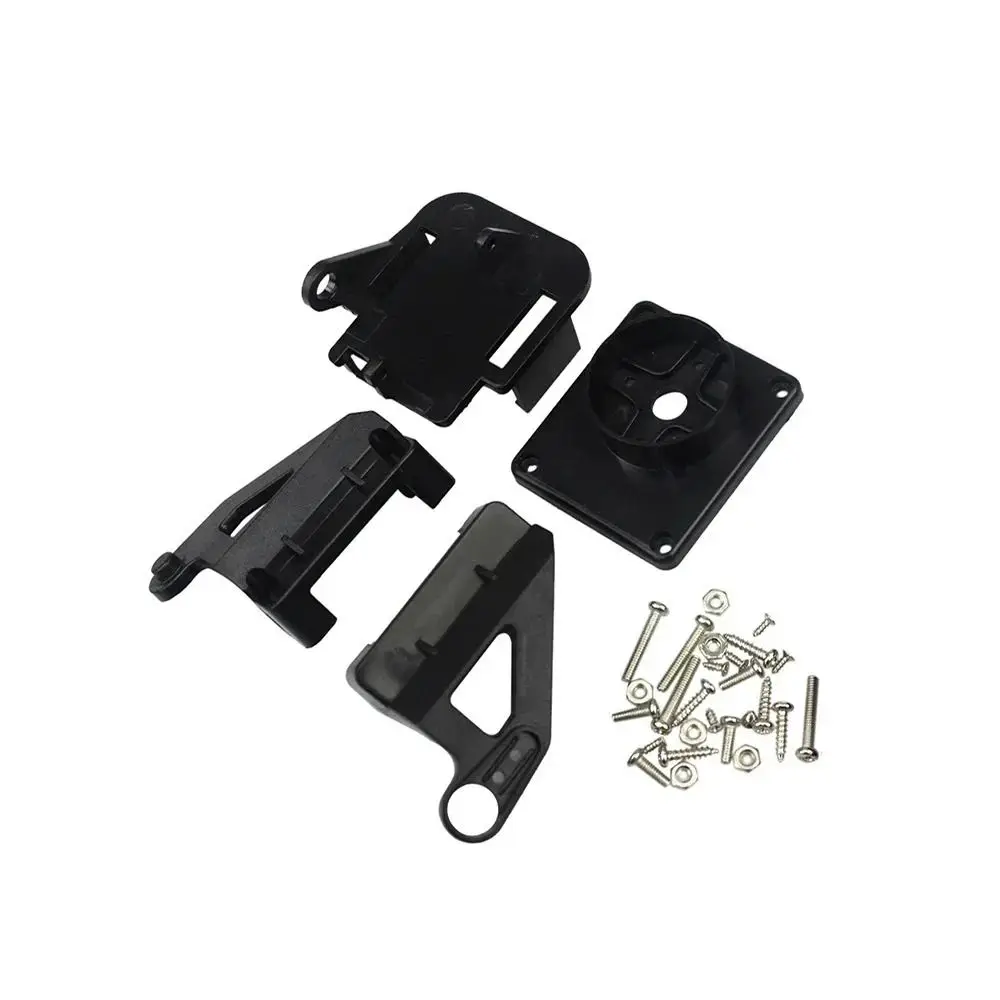

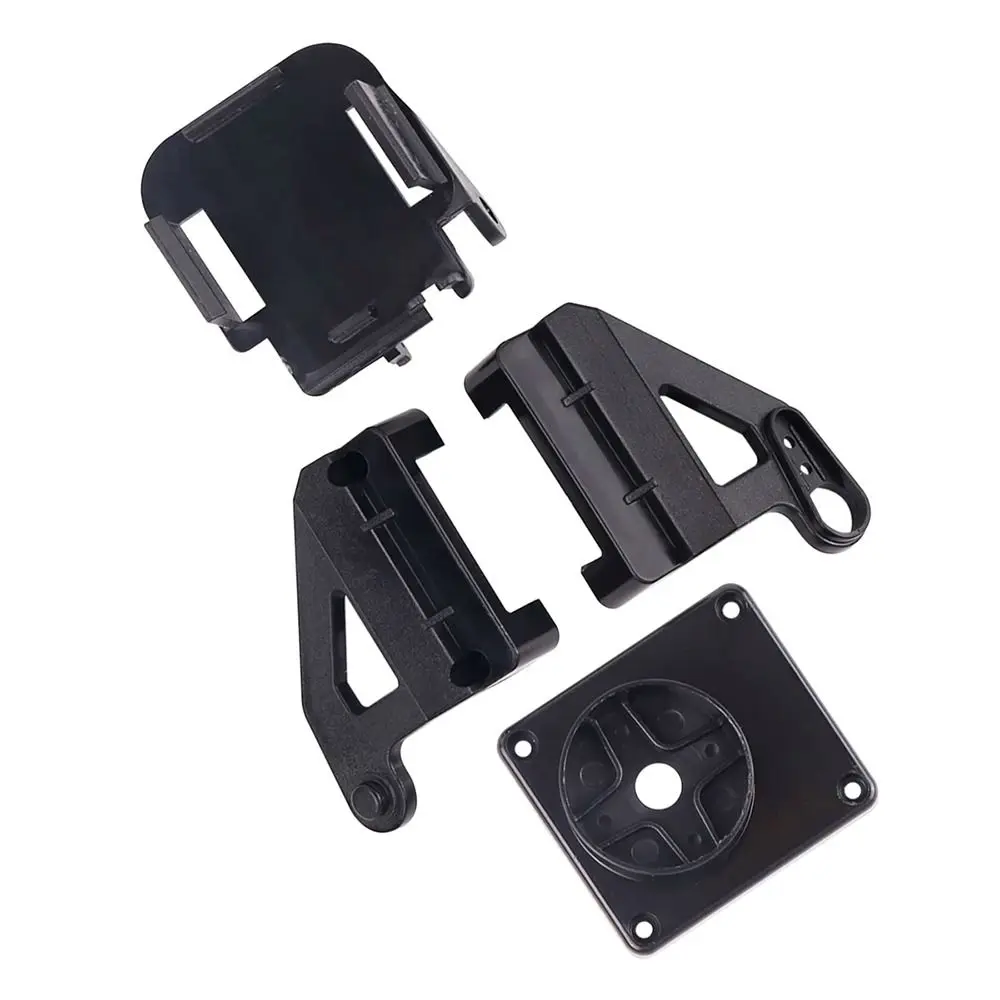

The product is shown in the figure, 4 nylon plastic parts, including screws. Self assembly is required.

Notice:
1. The real color of the item may be slightly different from the pictures shown on the website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data. Thank for your understanding.
3. 1cm=0.39''.

Package Included:

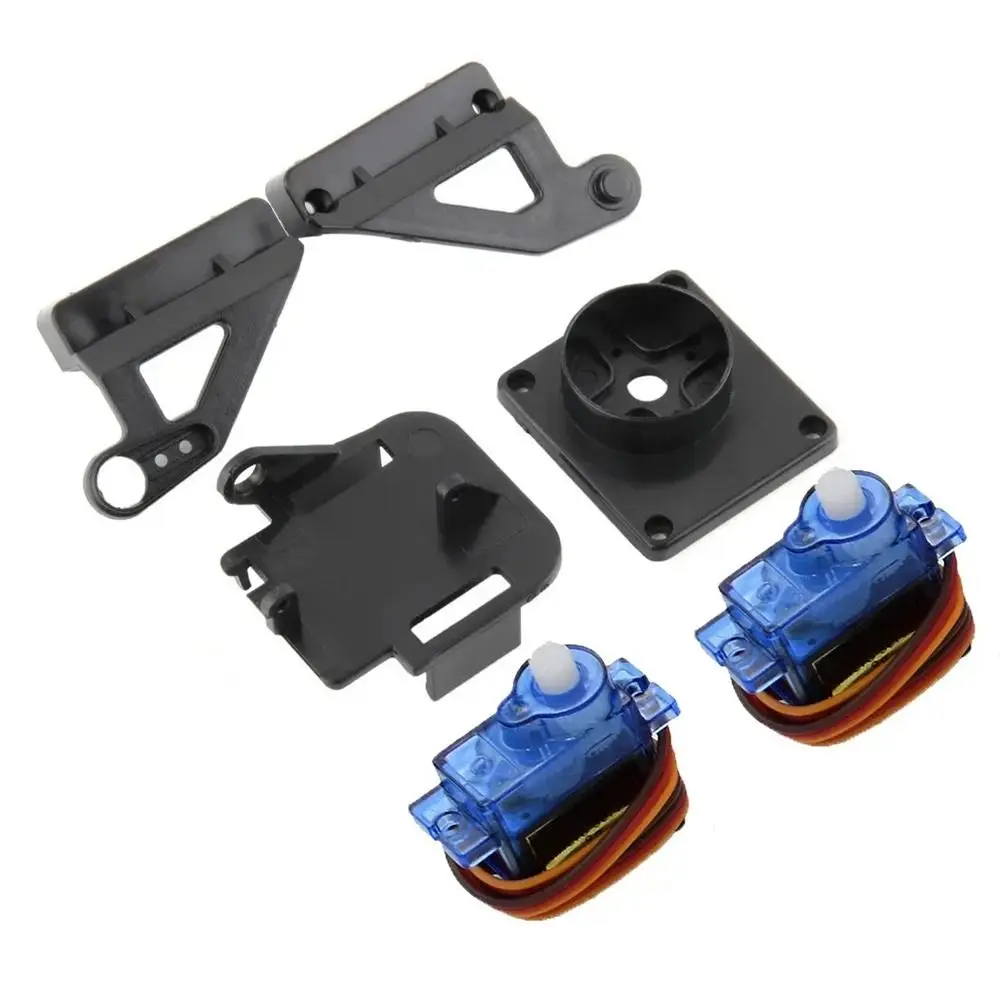

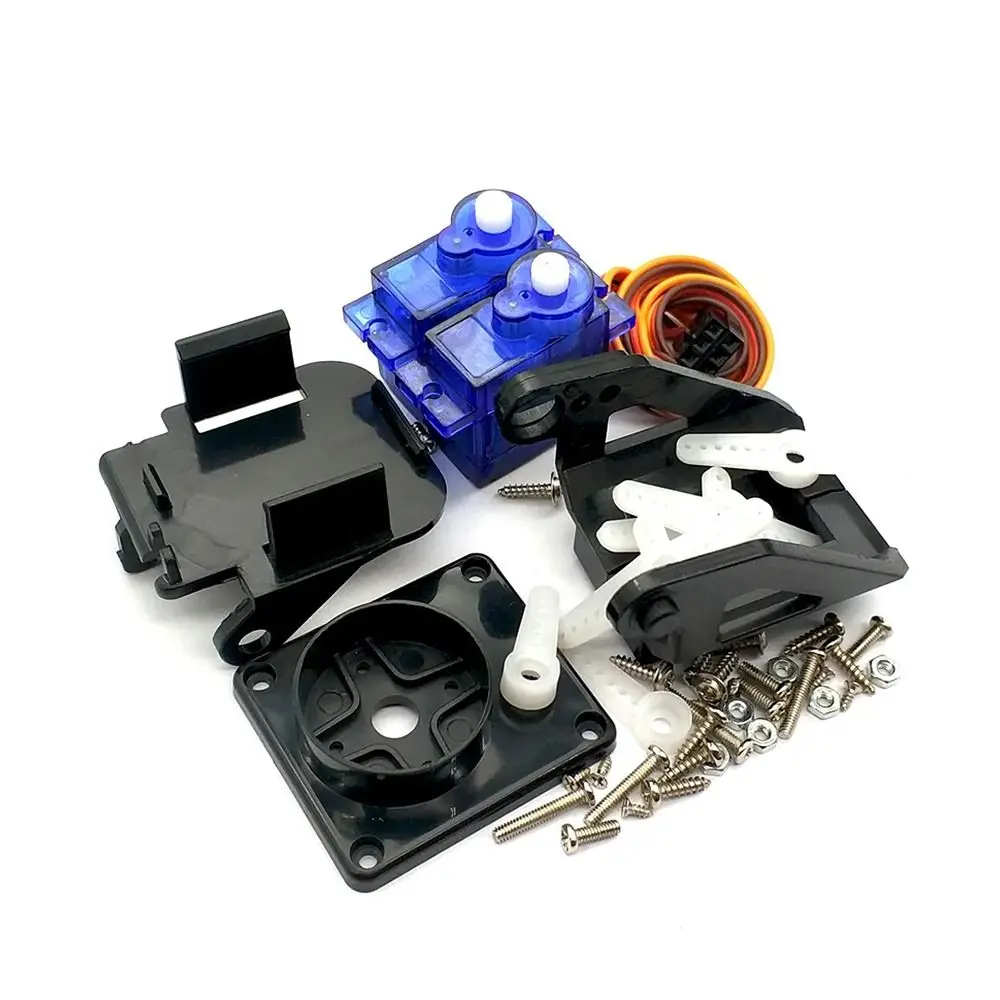

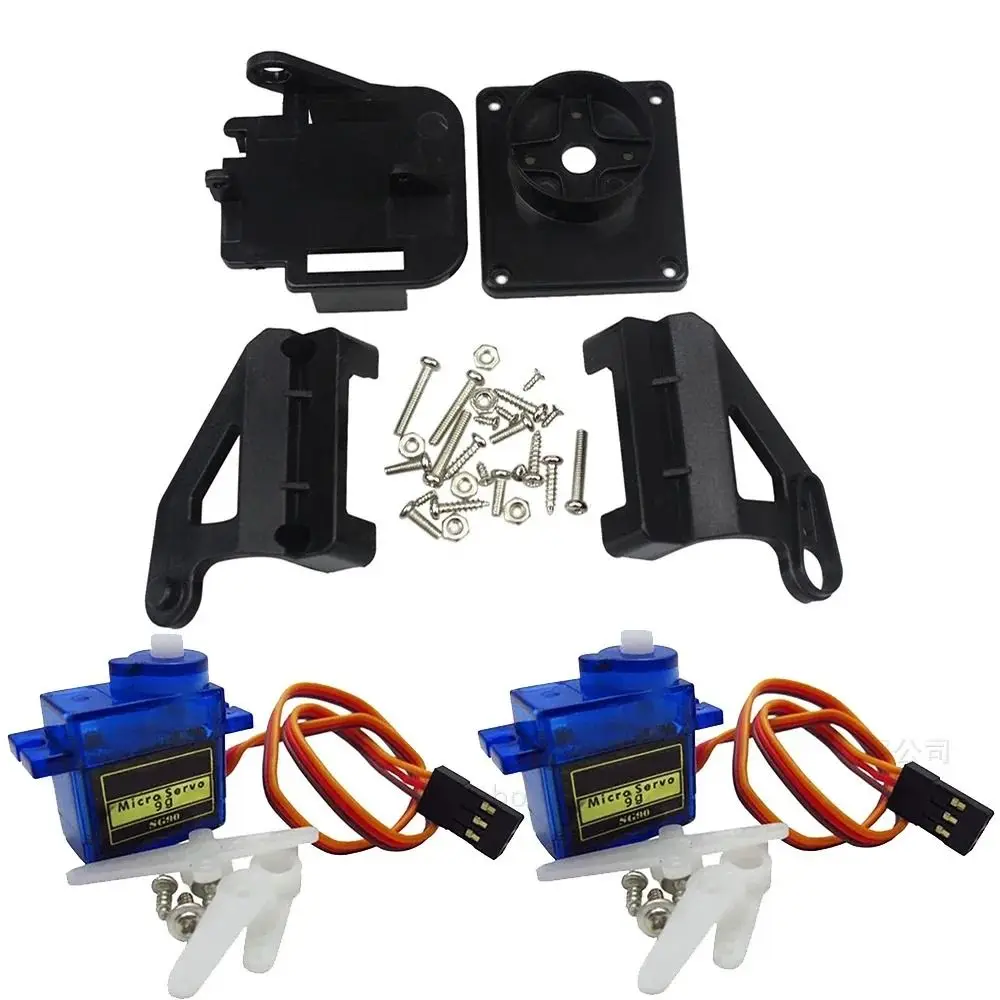

1Set PTZ Parts or PTZ with 2 Servo
