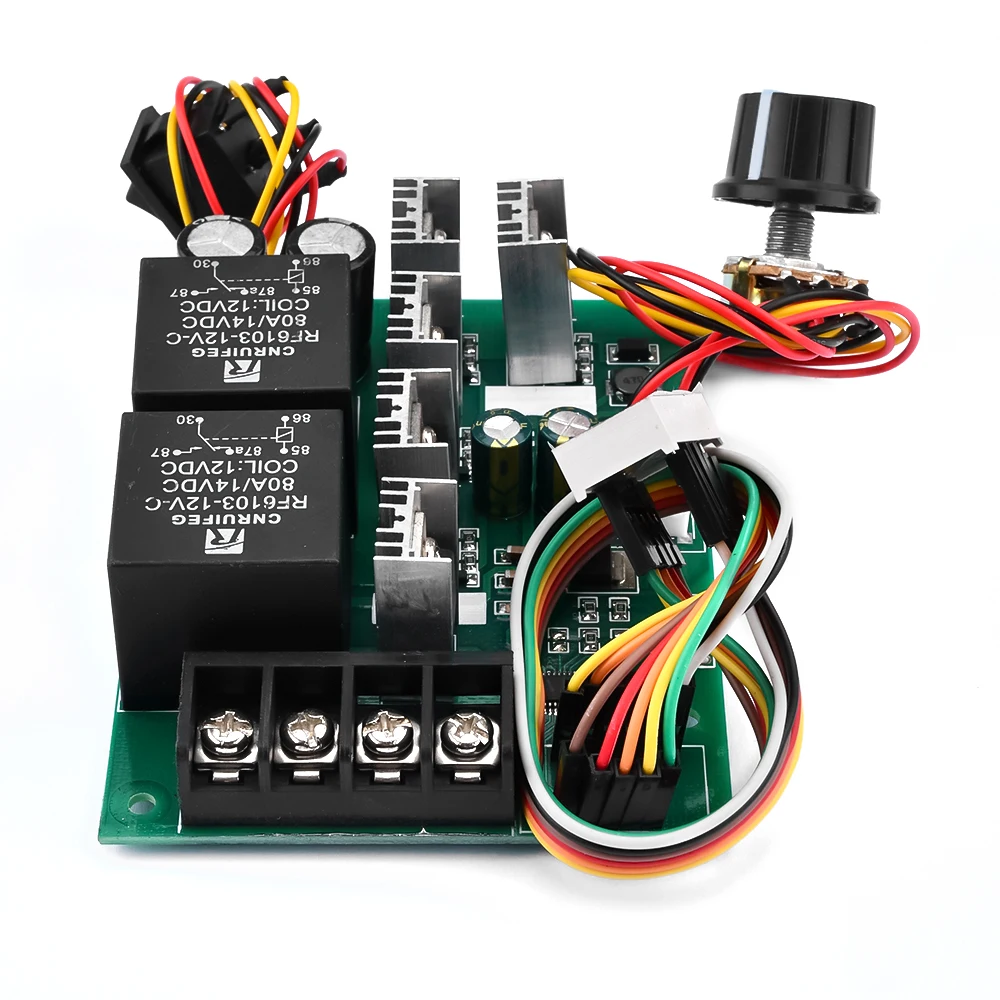

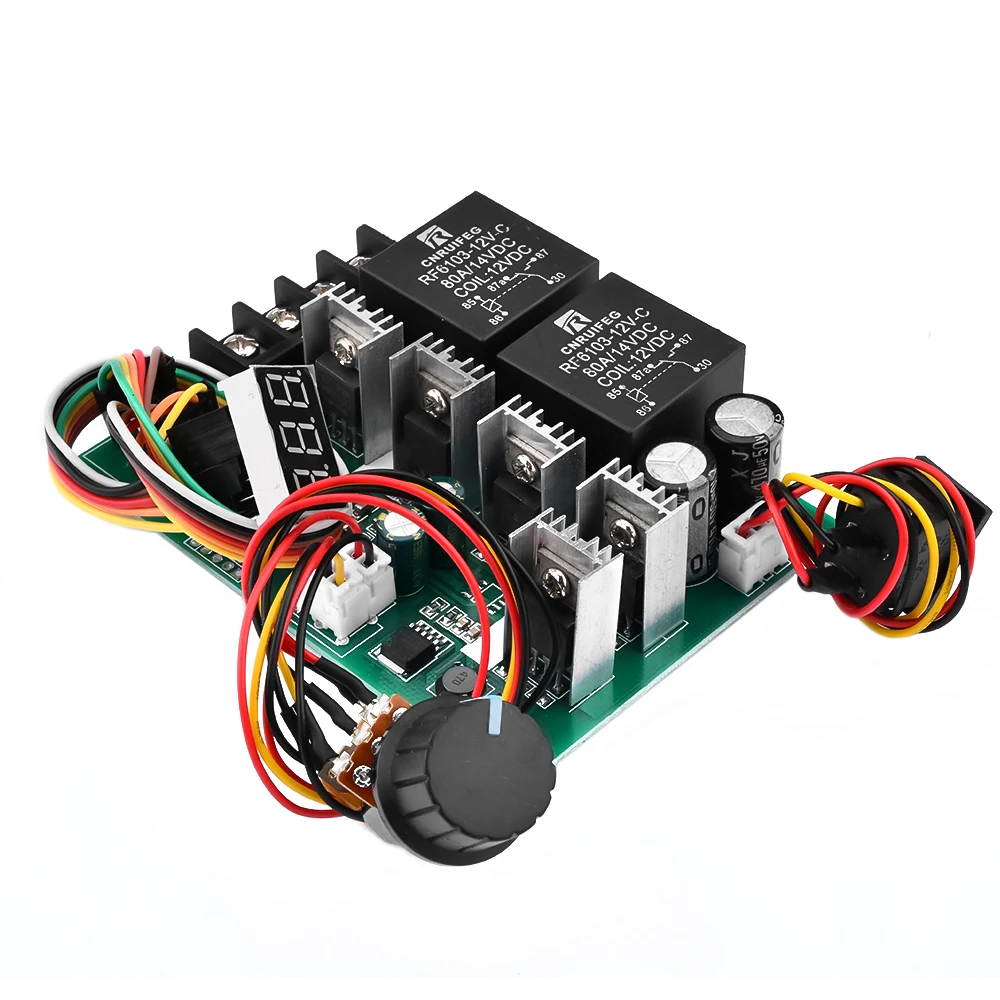

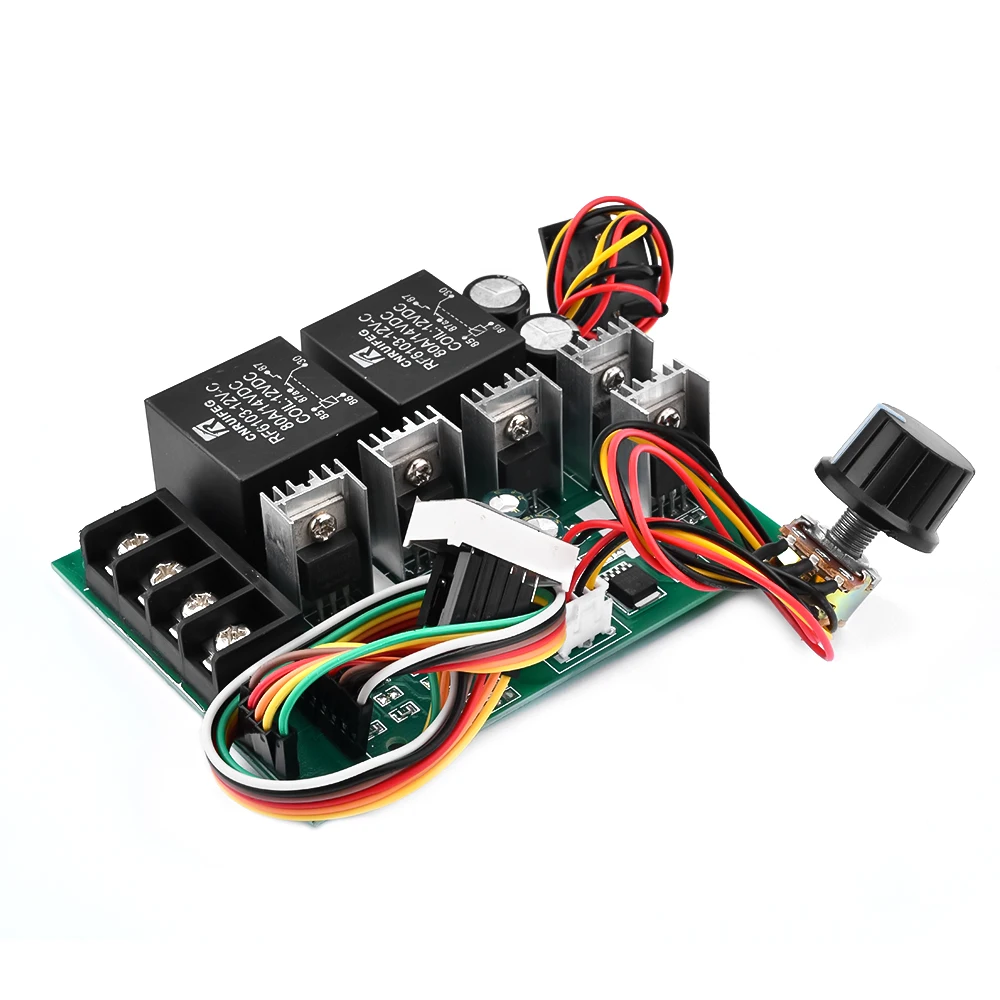

PWM DC Motor Speed Controller DC 10 -55V Digital LED Display 0 -100% Adjustable Drive Module Input MAX 60A 12V 24V 36V 48V
PWM DC Motor Speed Controller DC10-55V Digital Display 0~100% Adjustable Drive Module Input MAX 60A 12V 24V 36V 48VSpecification:Input voltage: DC 10-55V (equal to the rated voltage of the motor)Output voltage: linear under loadMaximum current: 60AContinuous current: 40ASpeed regulation type: current regulationSpeed regulation mode: potentiometer (linear)Support motor: DC brush motorForward rotation reverse: SupportSpeed range: 0 -100%Control frequency: 15KHzWiring type: terminal KnobSpecificati
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762PWM DC Motor Speed Controller DC10-55V Digital Display 0~100% Adjustable Drive Module Input MAX 60A 12V 24V 36V 48V
Specification:
Input voltage: DC 10-55V (equal to the rated voltage of the motor)
Output voltage: linear under load
Maximum current: 60
AContinuous current: 40A
Speed regulation type: current regulation
Speed regulation mode: potentiometer (linear)
Support motor: DC brush motor
Forward rotation reverse: Support
Speed range: 0 -100%
Control frequency: 15KHz
Wiring type: terminal Knob
Specification: 100K (with switch)

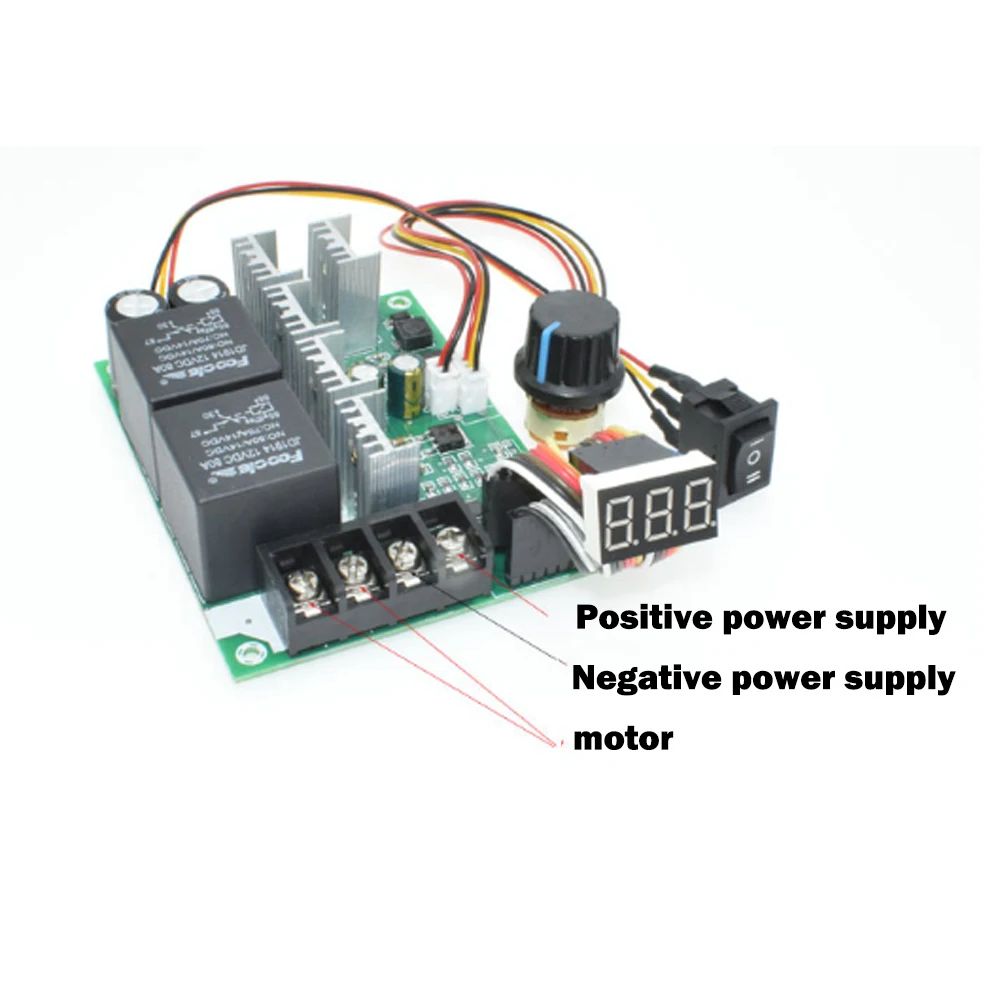

Wiring type: fence terminal block
Product weight: 170g

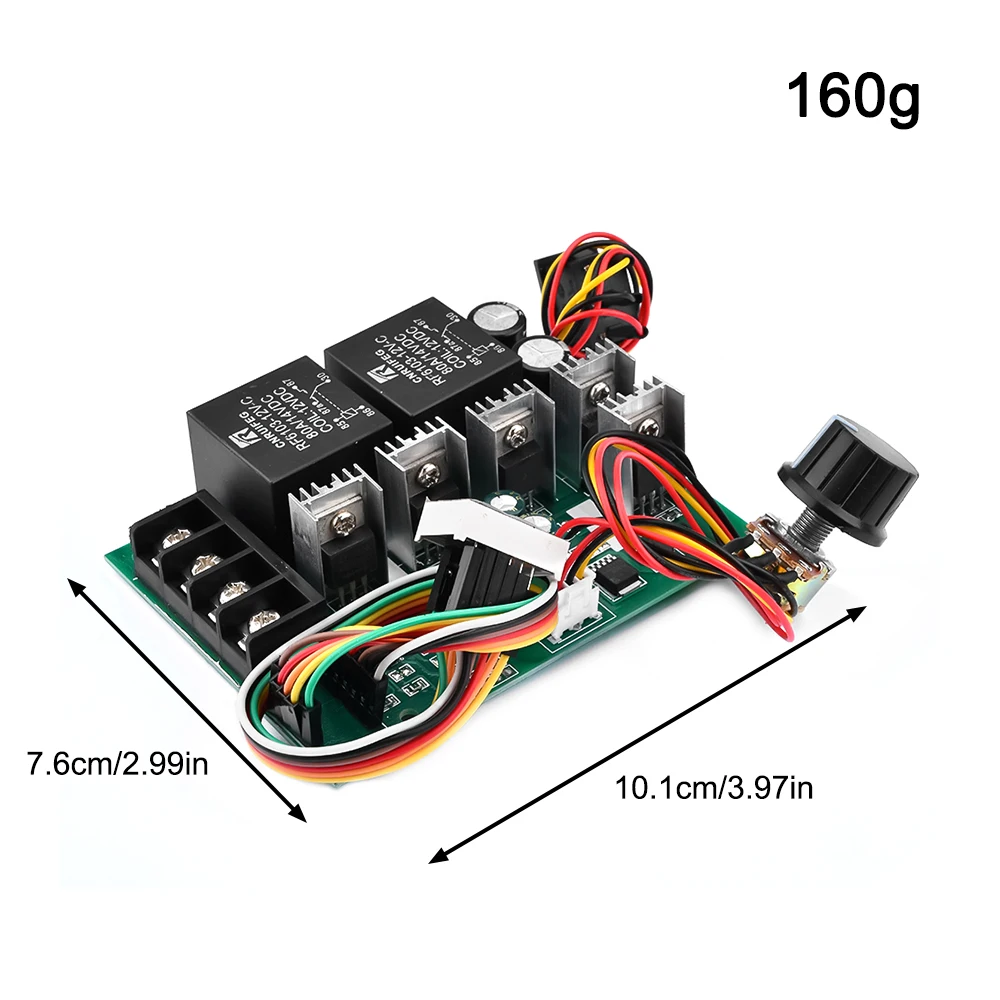

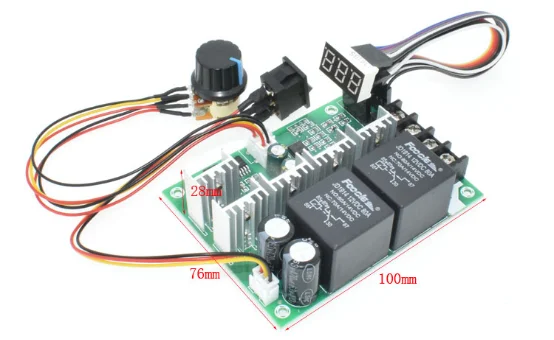

Motherboard size: 100 * 76 * 28mm
Note:
Electric bicycles cannot be used, including electric bicycle motors
The input voltage must be divided into positive and negative can not input 220V household electricity
The input voltage should be equal to the rated voltage of the motor (within 10-55V)
Package Included:
1 * PWM DC Motor Speed Controller DC 10-55V Digital Display 0~100% Adjustable Drive Module Inpu
