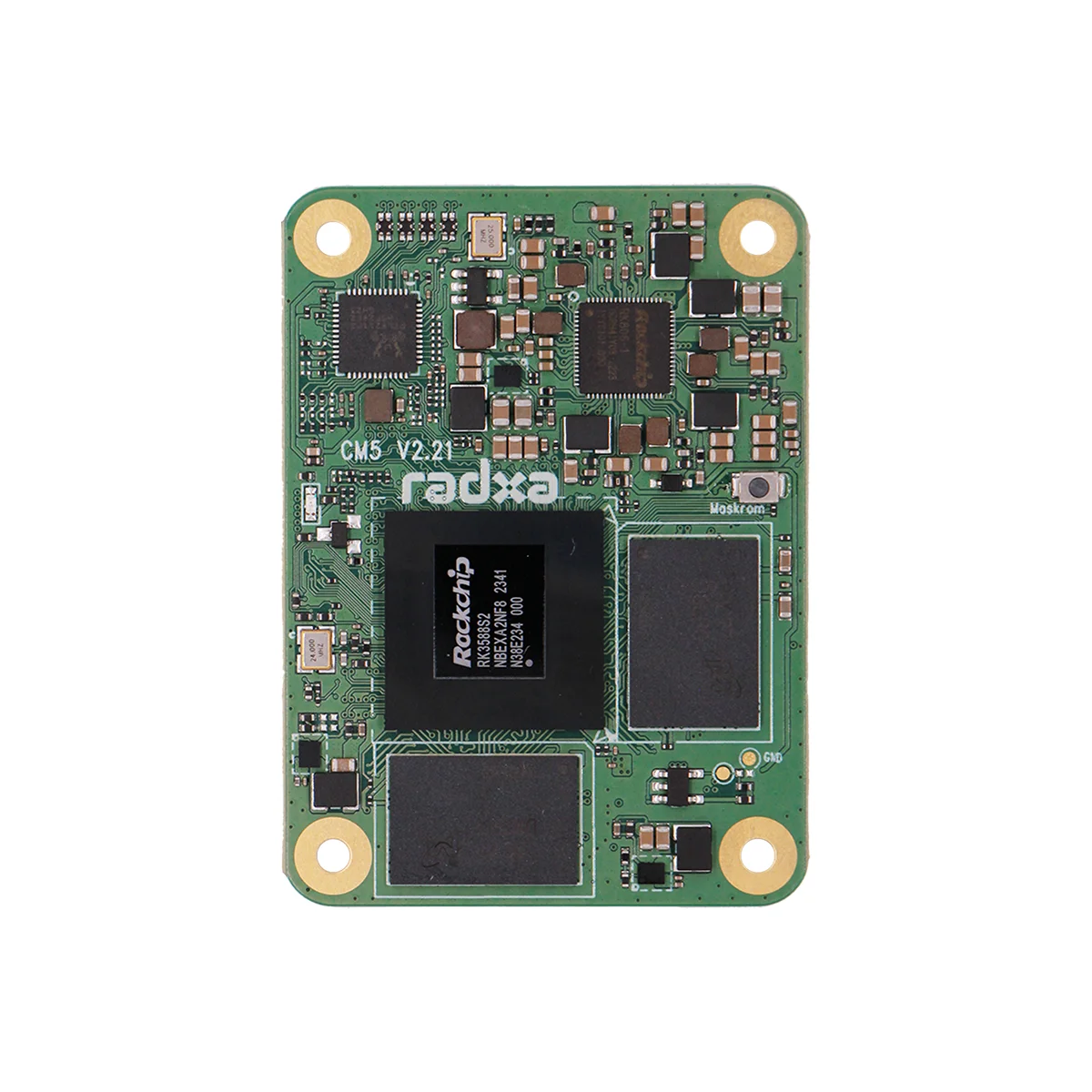

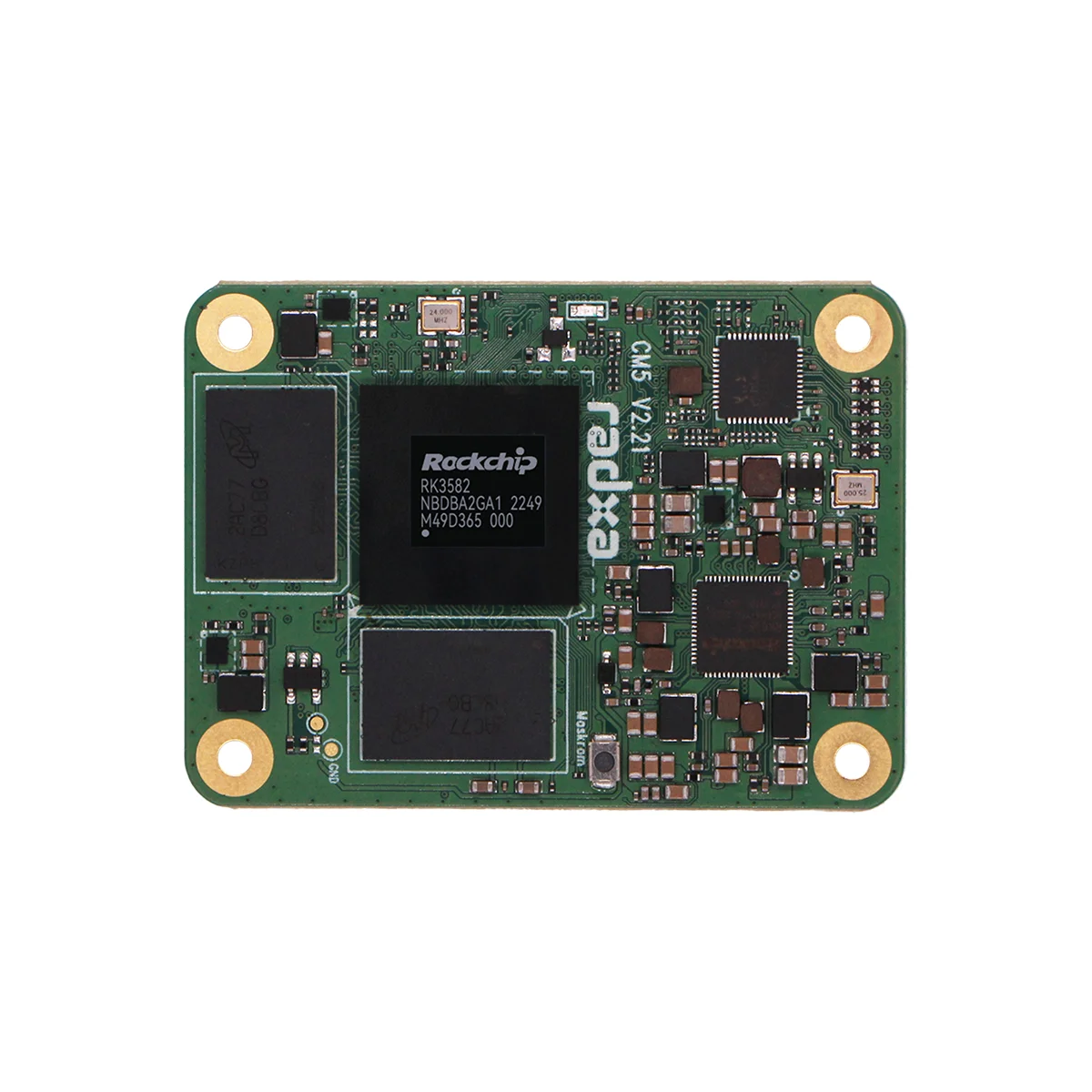

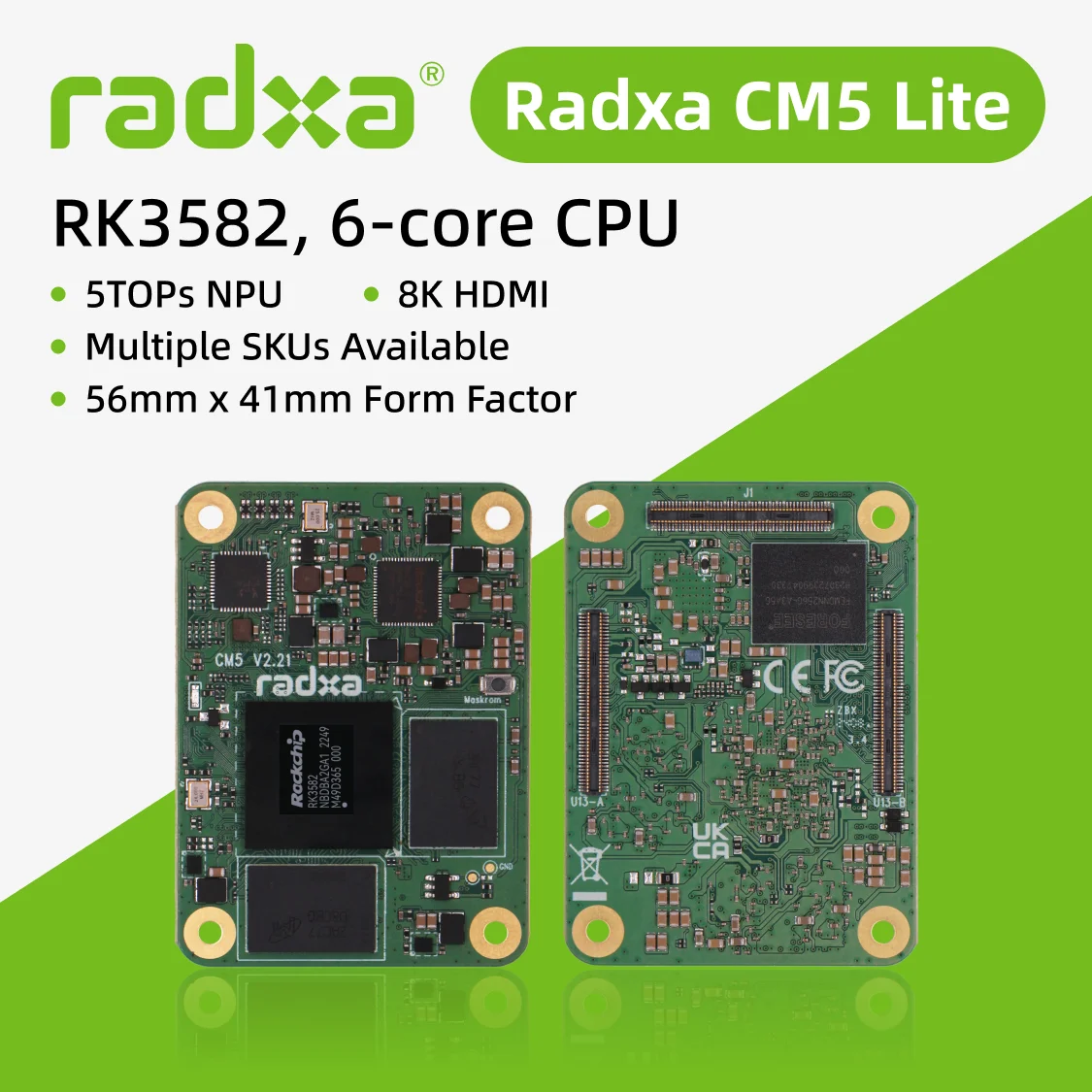

Radxa Cm5 Rk3588s2 8-core Cpu Radxa Cm5 Lite Rk3582 6-core Cpu Compute Module, Gpu, Npu, Single Board Computer
Radxa CM5 RK3588S2 8-core CPU Radxa CM5 Lite RK3582 6-core CPU Compute Module, GPU, NPU,Special time limited discount, Single Board ComputerProduct nameRadxa CM5SoCRockchip RK3588S2CPUQuad ARM Cortex®-A76 and Quad ARM Cortex®-A55GPUARM Mali-G610MC4NPU6TOPs@INT8MemoryLPDDR4X Up to 32GBMultimediaH.265 and VP9 decoder by 8K@60fpsH.264 decoder by 8K@30fpsAV1 decoder by 4K@60fpsH.264 and H.265 encoder by 8K@30fpseMMCOnboard eMMC Up to 256GBEthernet1 x Onboard Gigabit Ethernet PHYDisplay1x HDMI TX up
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Radxa CM5 RK3588S2 8-core CPU Radxa CM5 Lite RK3582 6-core CPU Compute Module, GPU, NPU,Special time limited discount, Single Board Computer

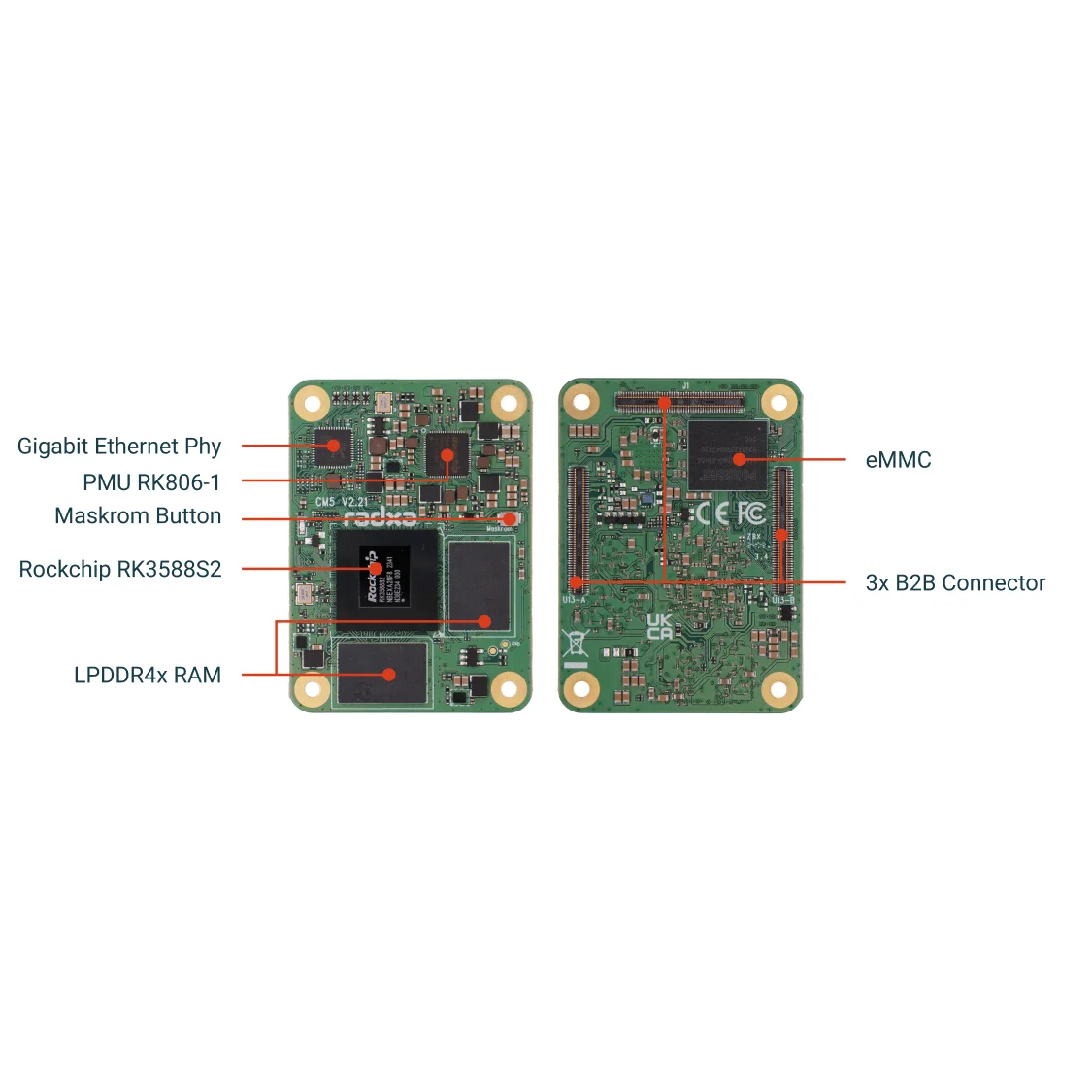

Product name | Radxa CM5 |

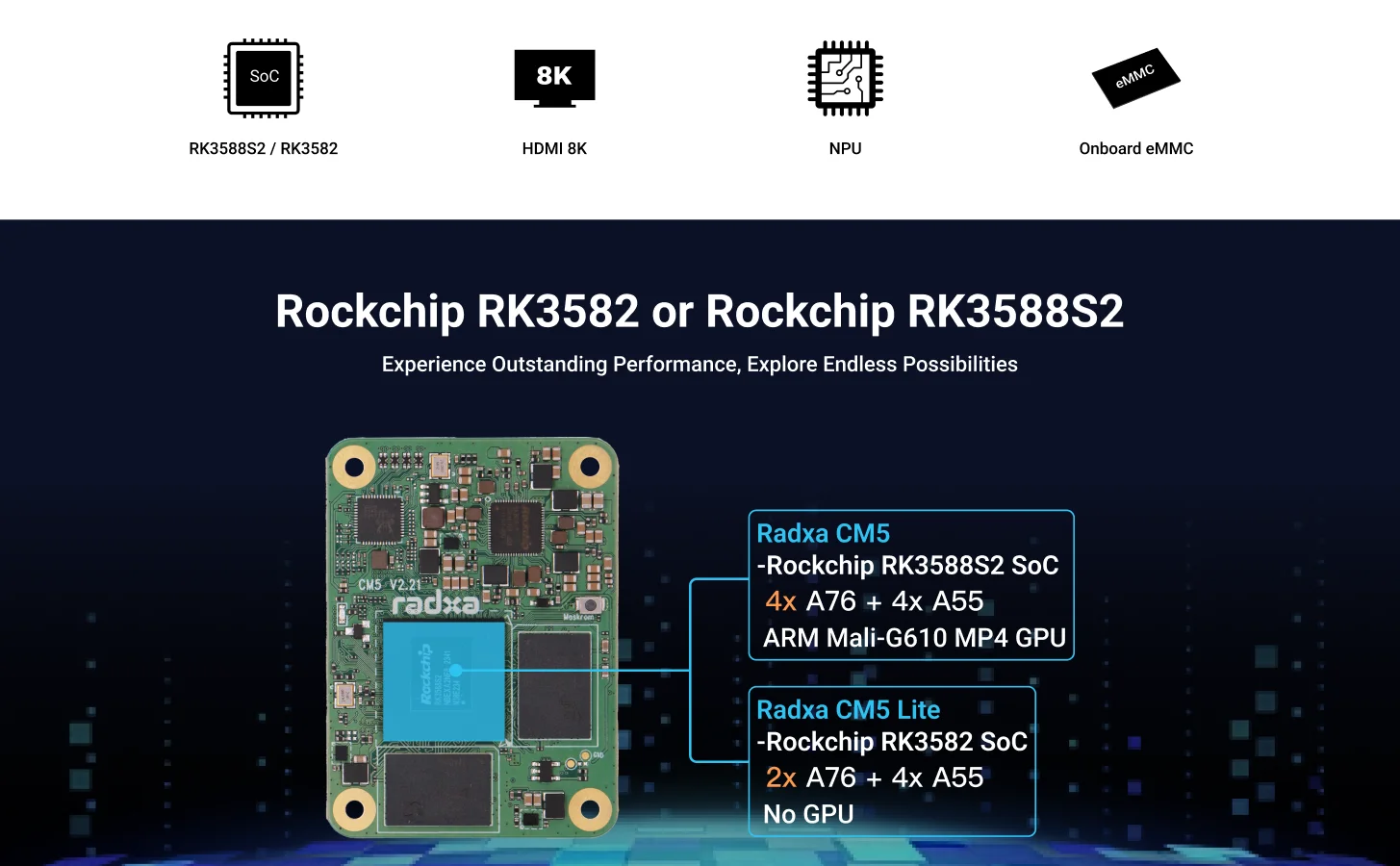

SoC | Rockchip RK3588S2 |
CPU | Quad ARM Cortex®-A76 and Quad ARM Cortex®-A55 |
GPU | ARM Mali-G610MC4 |
NPU | 6TOPs@INT8 |
Memory | LPDDR4X Up to 32GB |
Multimedia | H.265 and VP9 decoder by 8K@60fps |
eMMC | Onboard eMMC Up to 256GB |
Ethernet | 1 x Onboard Gigabit Ethernet PHY |
Display | 1x HDMI TX up to 8K@60hz |
Camera | 1x 2-lane MIPI DPHY CSI RX |
USB | 2 × USB 2.0 Host Port (HighSpeed) |
PCIe | 2 x PCIe2.0 1‑lane, one shared with USB3 and SATA, one shared with SATA |
SATA | 2 x SATA ports, one shared with USB3 and PCIe2.0, one shared with PCIe2.0 |
Connectivity | I2S |

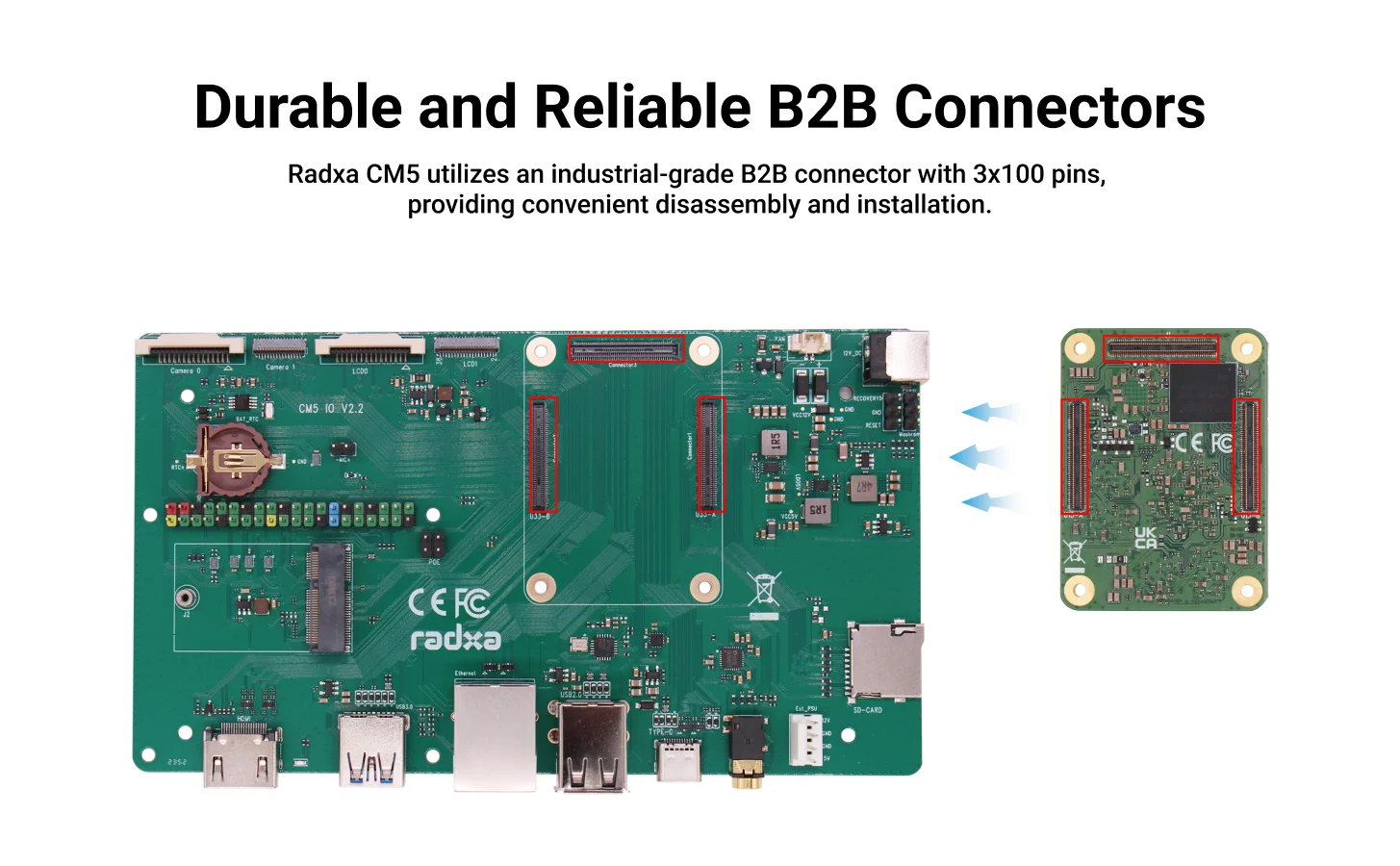

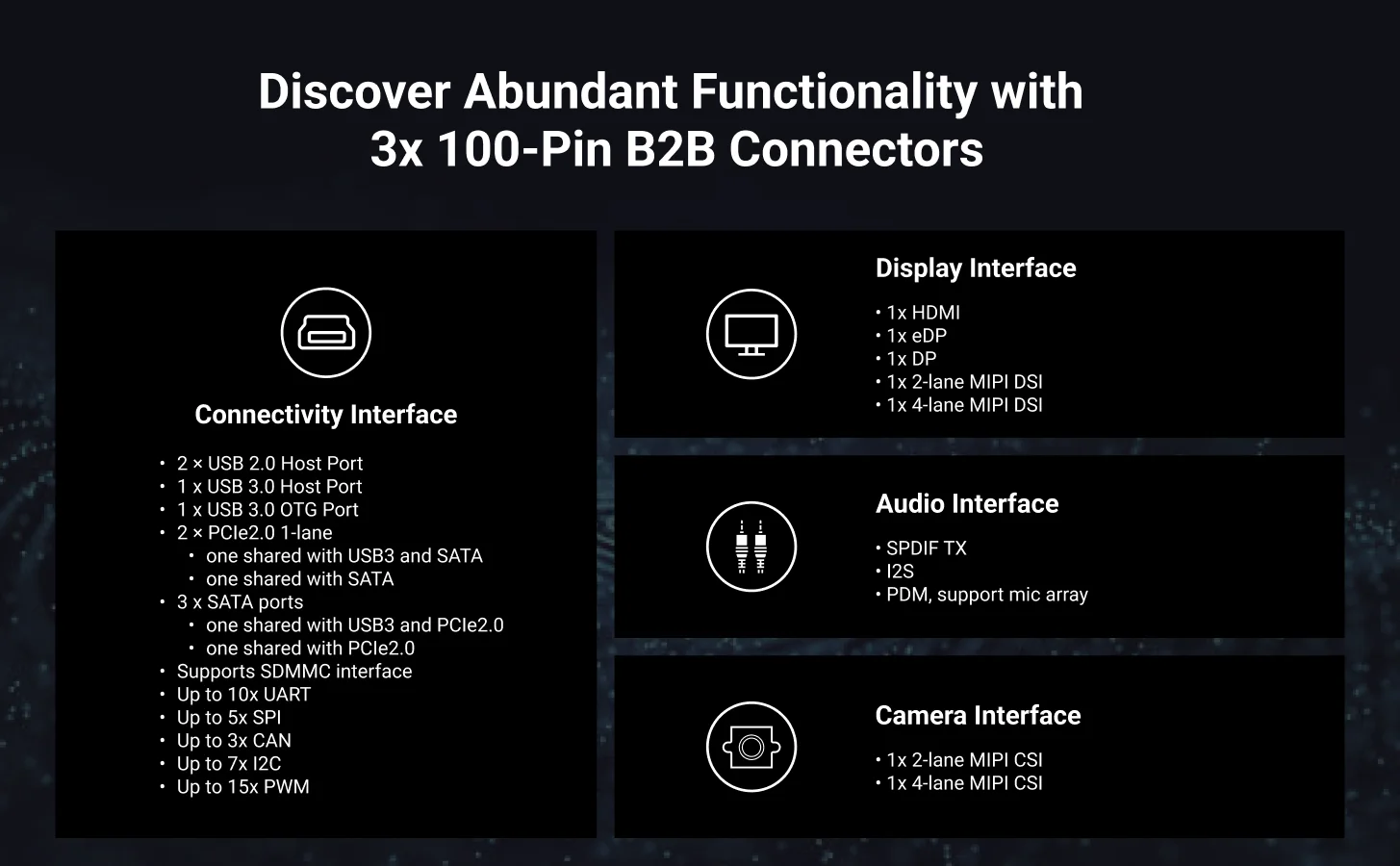

Connector | 3x 100-Pin B2B Connector |
Form Factor | 56mm x 41mm |
