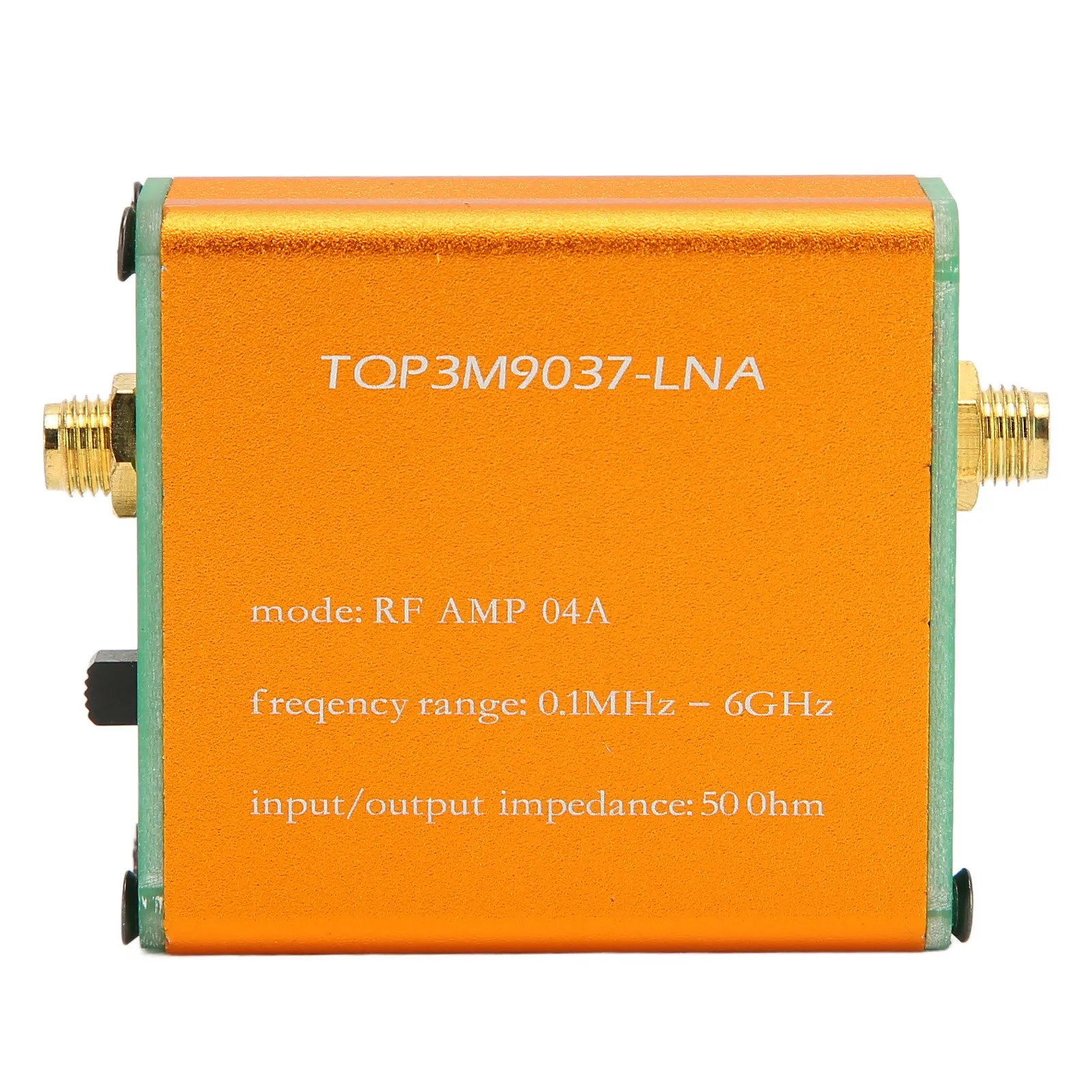

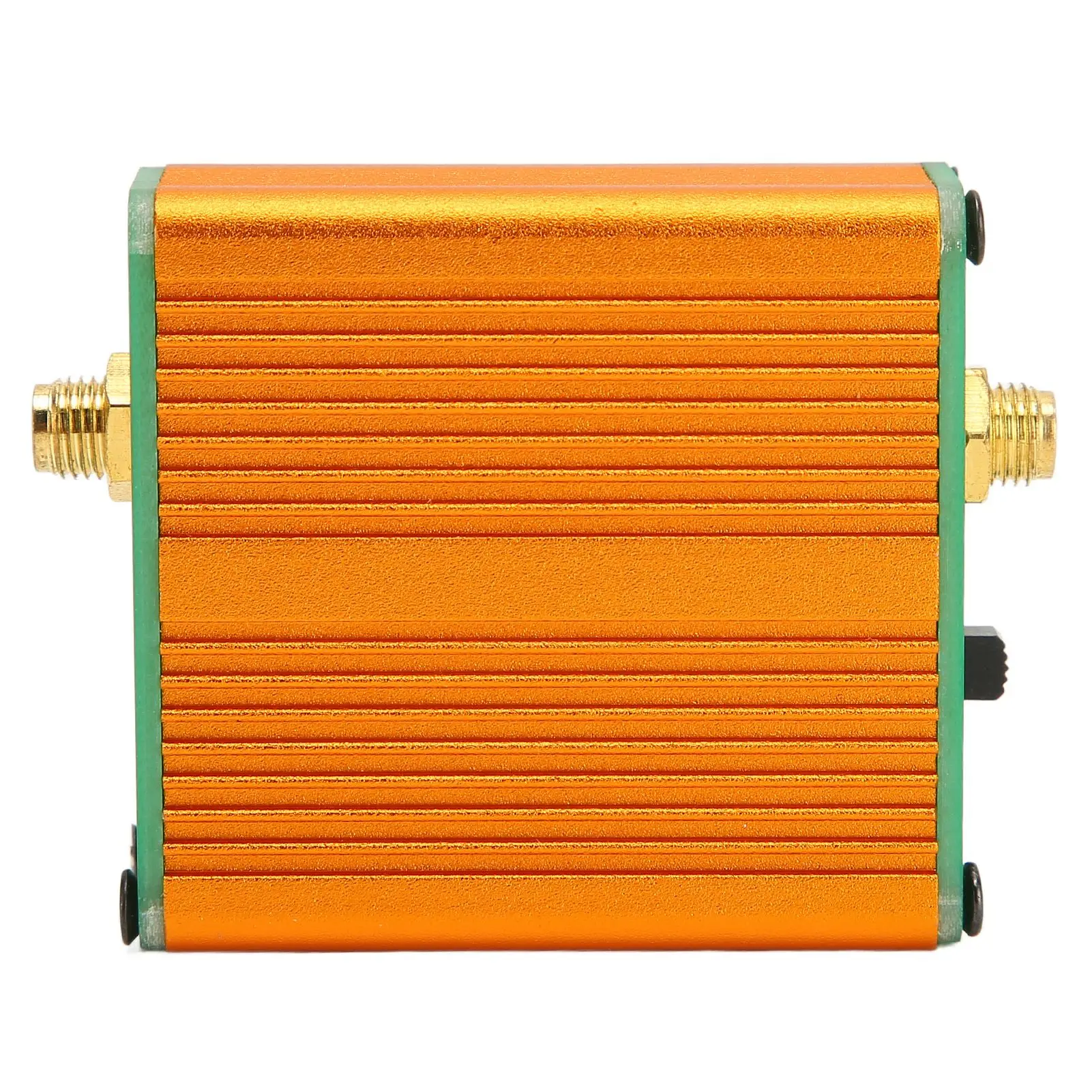

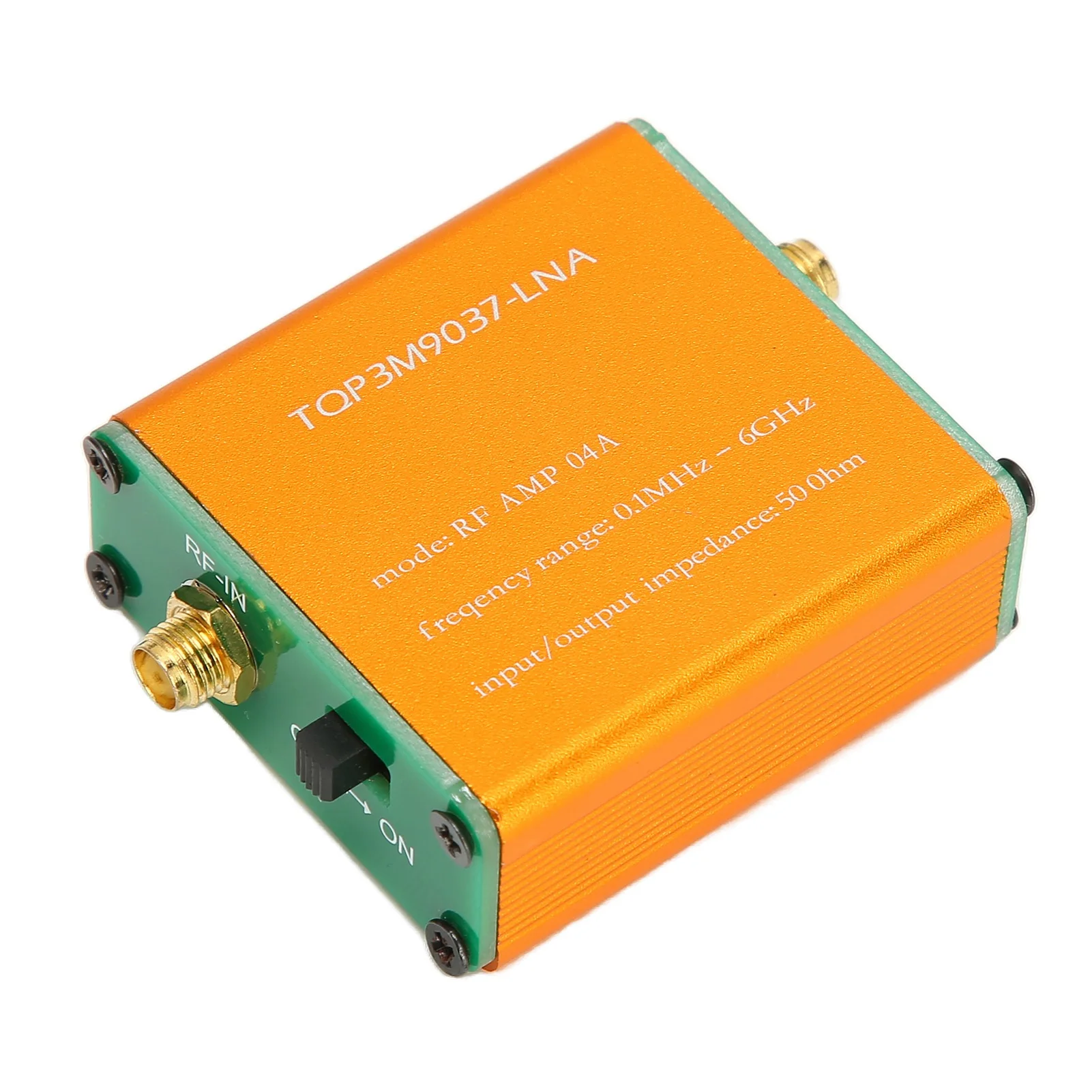

RF Amplifier 0.1MHz‑6GHz Full Band Low Noise Amplifier Professional 20dB High Gain LNA RF Power Preamplifier Module
0.1MHz‑6GHz Full Band Low Noise Amplifier Professional 20dB High Gain LNA RF Power Preamplifier ModuleFeature:1. Professional: High linearity,ultra low noise gain block amplifier. High linearity: +35dBm output IP3; high input power ruggedness, +22dBm continuous wave.2. Stable Performance: RF amplifier ultra bandwidth, high reliability, not easy to corrosion and fall off. Amplifier module with wide frequency range, high gain, low noise figure, unconditionally stable.3. Parameters: Low noise ampli
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-97620.1MHz‑6GHz Full Band Low Noise Amplifier Professional 20dB High Gain LNA RF Power Preamplifier Module
Feature:
1. Professional: High linearity,ultra low noise gain block amplifier. High linearity: +35dBm output IP3; high input power ruggedness, +22dBm continuous wave.2. Stable Performance: RF amplifier ultra bandwidth, high reliability, not easy to corrosion and fall off. Amplifier module with wide frequency range, high gain, low noise figure, unconditionally stable.
3. Parameters: Low noise amplifier module1.95GHz at 20dB high gain, input and output impedance: 50Ω, bandwidth: 0.1MHz‑6GHz.
4. Applicable: RF amplifier has excellent performance, excellent uniformity and high reliability. It is suitable for shortwave, FM radio, remote control receiver, cable TV signal amplifier, etc.

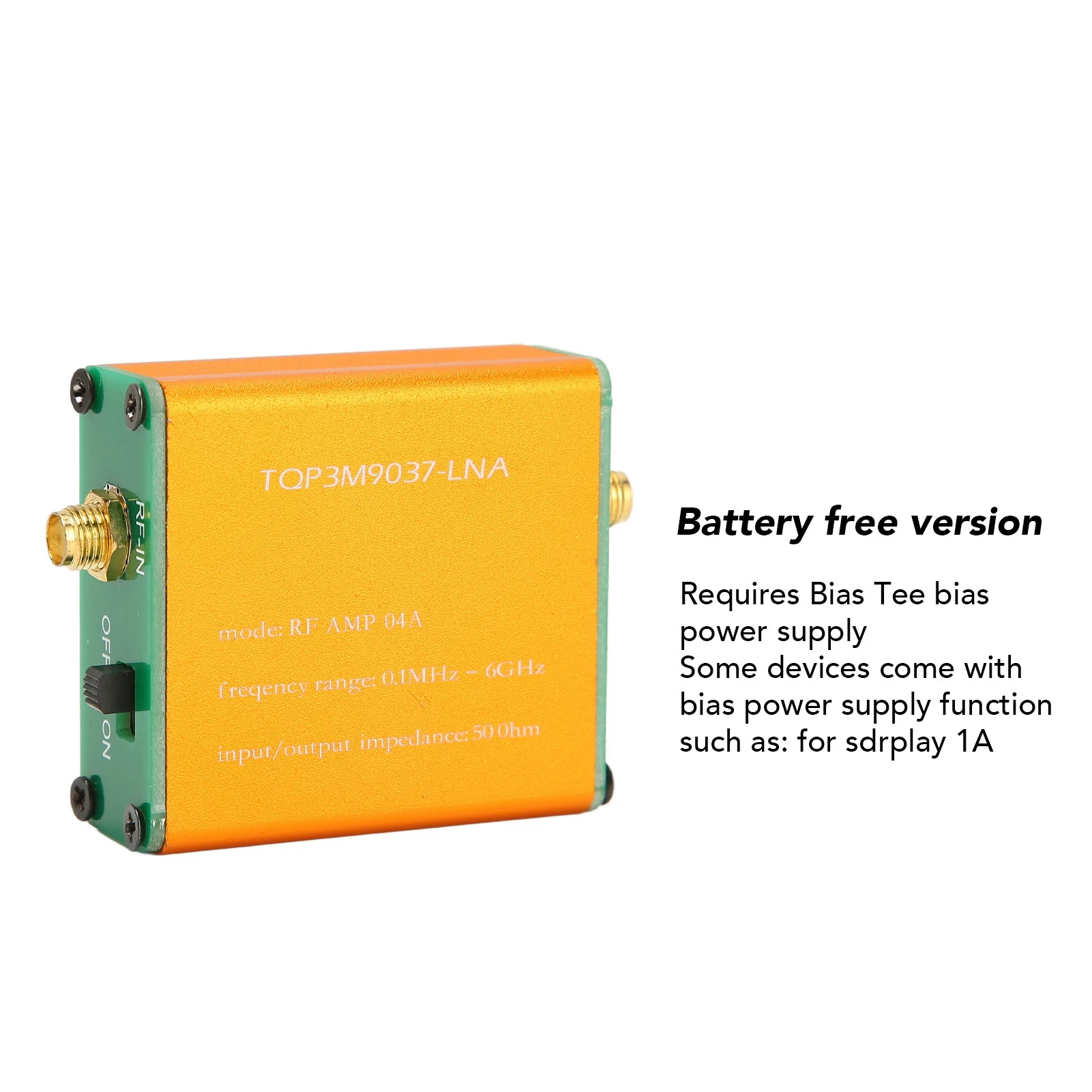

5. Power Supply: Battery less version needs Bias Tee bias power supply, some devices come with bias power supply function such as: for sdrplay 1A.
Specification:
Item Type: Low Noise AmplifierMaterial: Metal
Frequency Range: 0.1MHz-6GHz

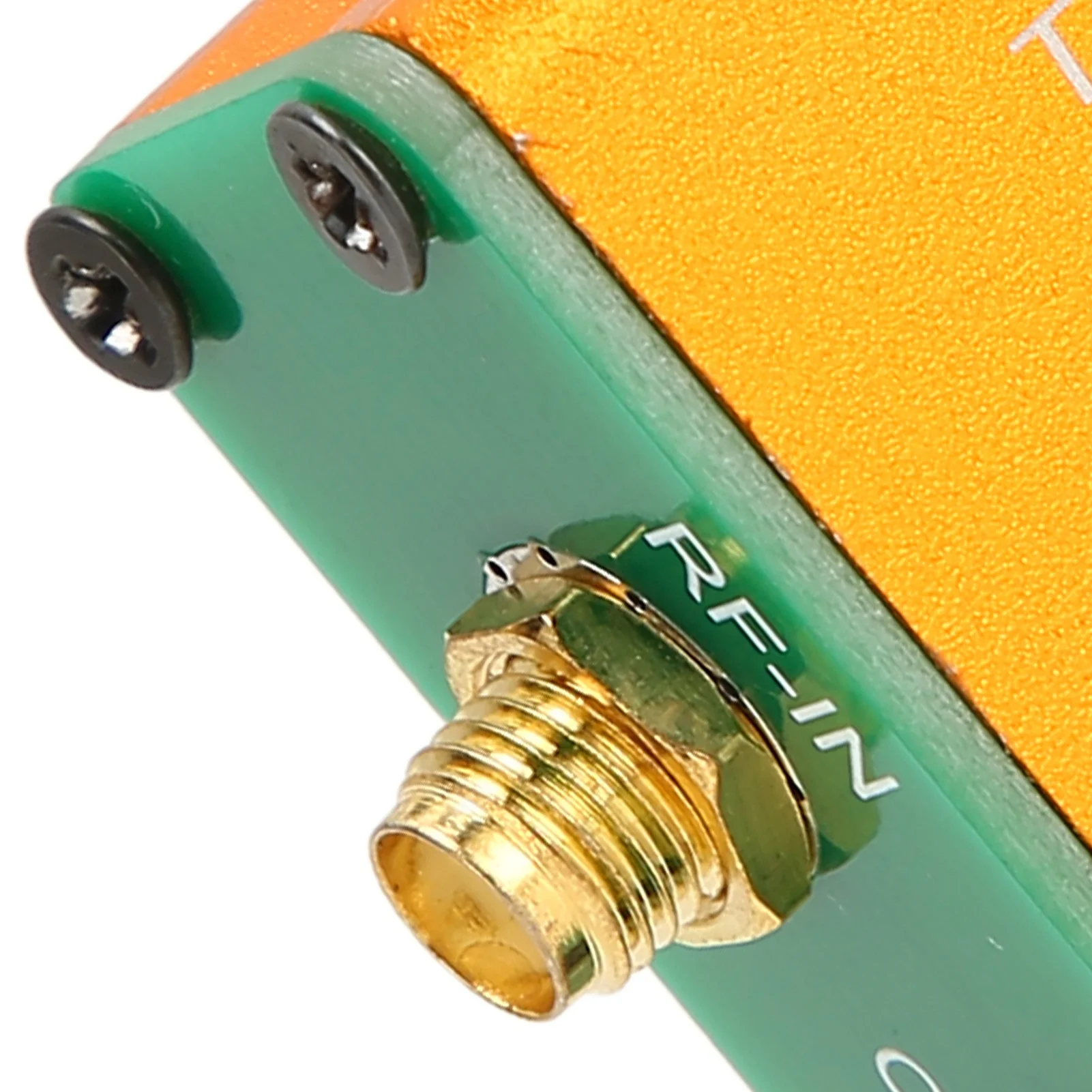

Connector: SMA Female
Gain: 20dB
Input, Output Impedance: 50Ω
Input Voltage: 5V 70mA
How to Use:
Plug and PlayPackage List:
1 x Low Noise Amplifier1 x USB Cable
Note:
