Surpass Hobby Digital Servo 9G 17G 25G 6KG 9KG 15KG 20KG Metal Gear micro Servo for 1/8 1/10 RC Car Plane Airplane Robot Glider

SURPASSHobby Digital Servo 9G 17G 25G 6KG 9KG 15KG 20KG Metal Gear Servo for 1/8 1/10 RC Car Boat Plane Airplane Robot Glider

Specifications:

Brand: SURPASS Hobby

S0009M

Torque: 1.1 kgf.cm at 4.8V; 1.4 kgf.cm at 6V;

No load speed: 0.11s/60°at 4.8V; 0.09s/60°at 6V;

Product weight: 13.5g (0.47oz);

Boundary dimension: 23 * 12 * 27.3mm (0.92 * 0.48 * 1.07inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520μs / 333hz;

Motor type: core motor;

Gear type: metal gear;

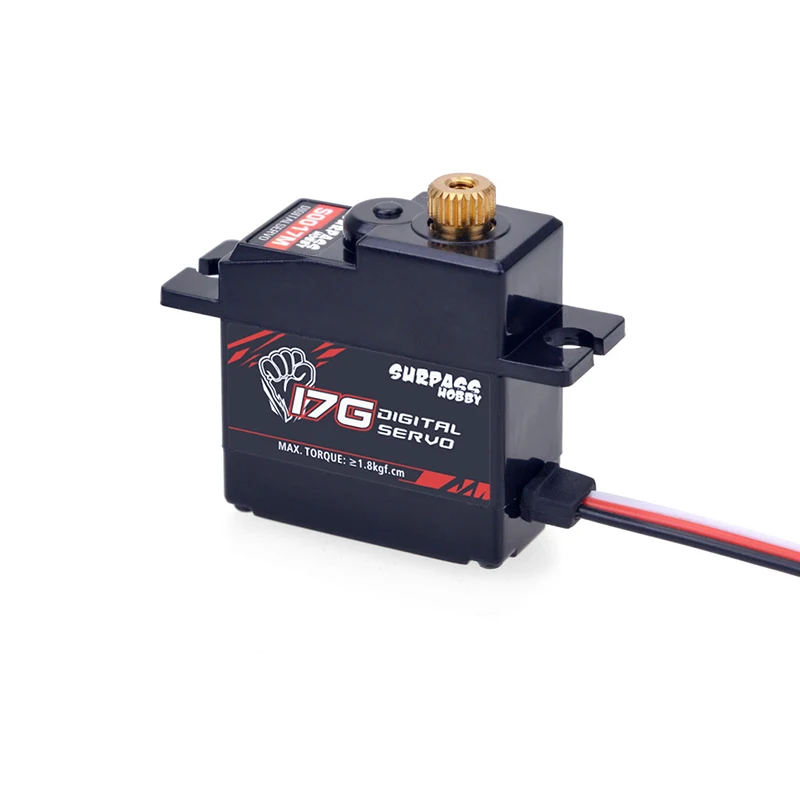

S0017M

Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;

No load speed: 0.23s/60°at 4.8V; 0.20s/60°at 6V;

Product weight: 21g (0.74oz);

Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520μs / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

S0025M

Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;

No load speed: 0.08s/60°at 4.8V; 0.06s/60°at 6V;

Product weight: 21g(1.05oz);

Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520μs / 333hz;

Motor type: core motor;

Gear type: metal gear;

Bearing type: 2BB;

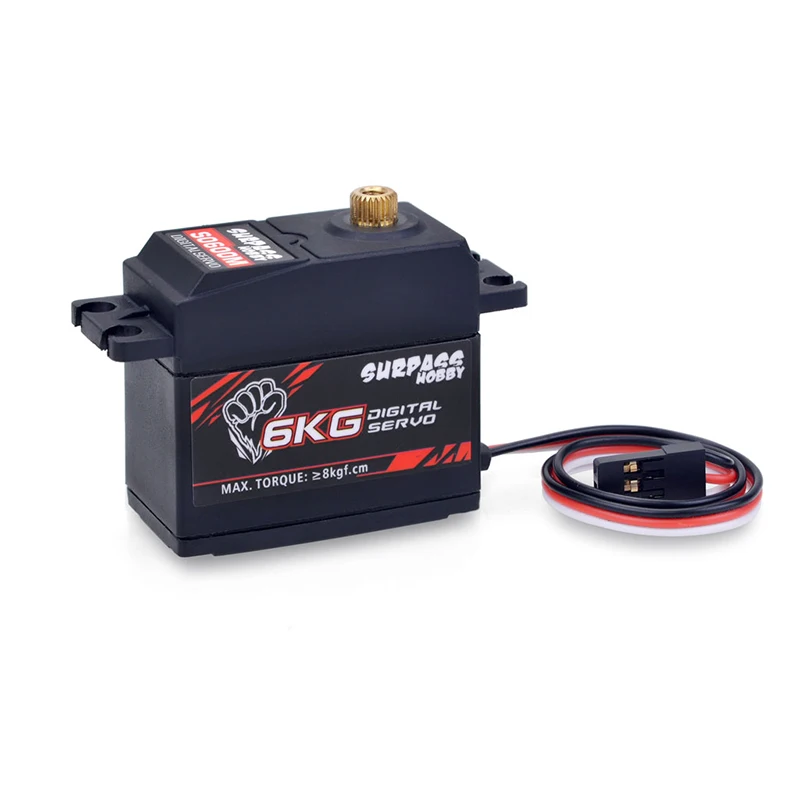

S0600M

Torque: 7kgf.cm at 4.8V; 8kgf.cm at 6.0V;

No load speed: 0.20s/60°at 4.8V; 0.18s/60°at 6V;

Product weight: 37g (1.3oz);

Boundary dimension: 40.6*20.2*36.6mm (1.60*0.78*1.44 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520μs / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

S0900M

Torque: 10kgf.cm at 4.8V; 14kgf.cm at 6.0V;

No load speed: 0.21s/60°at 4.8V; 0.19s/60°at 6V;

Product weight: 55g (1.94oz);

Boundary dimension: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);

Operating voltage: 4.8V ~ 6VDC;

Working frequency: 1520μs / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

S1500M

Torque: 15kgf.cm at 6.0V; 23kgf.cm at 7.4V;

No load speed: 0.20s/60°at 6.0V；0.18s/60°at 7.4V

Product weight: 58g(2.11oz)

Boundary dimension:40.4*20.0*38.6mm（1.59*0.79*1.51 inch）

Operating voltage: 6.0~7.4VDC

Working frequency: 1520μs / 333hz;

Motor type: DC motor;

Gear type: Metal gear;

Bearing type: 2BB;

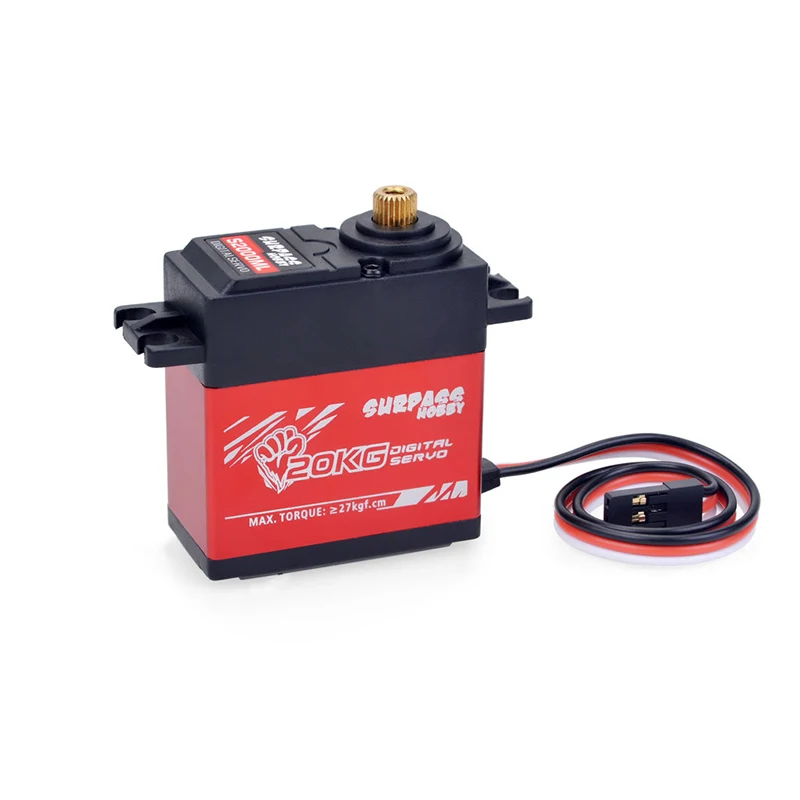

S2000ML

Stall Torque: 20Kgf.cm at 7.4V;

No Load Speed：0.2s/60°at 7.4V；

Weight : 58g(2.11oz);

Outside Dimension: 40.4*43.5*20mm;

Working Voltage: 7.4VDC;

Working Frequency:1500μs/333Hz；

Gears Type : Metal Gear

Bearing Type:2BB

Package included:

1 x Metal Gear Servo

Note:

1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.

2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
