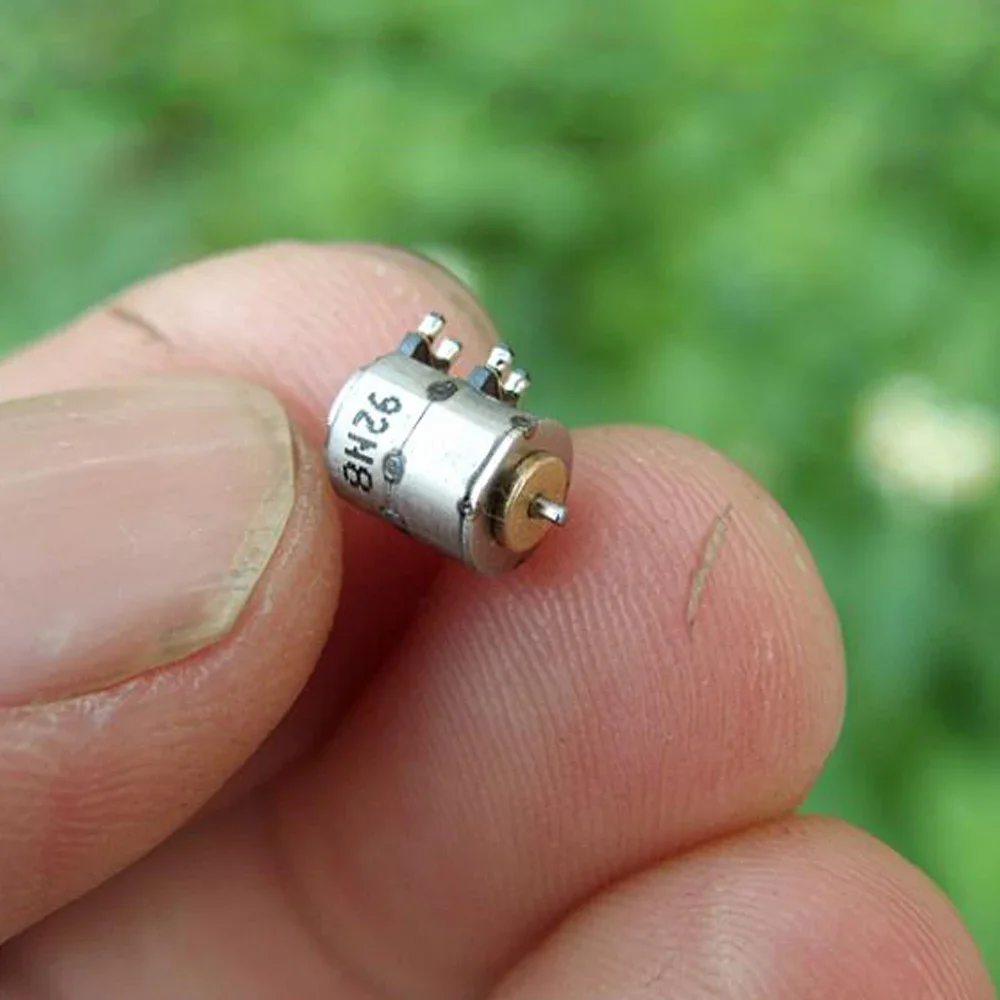

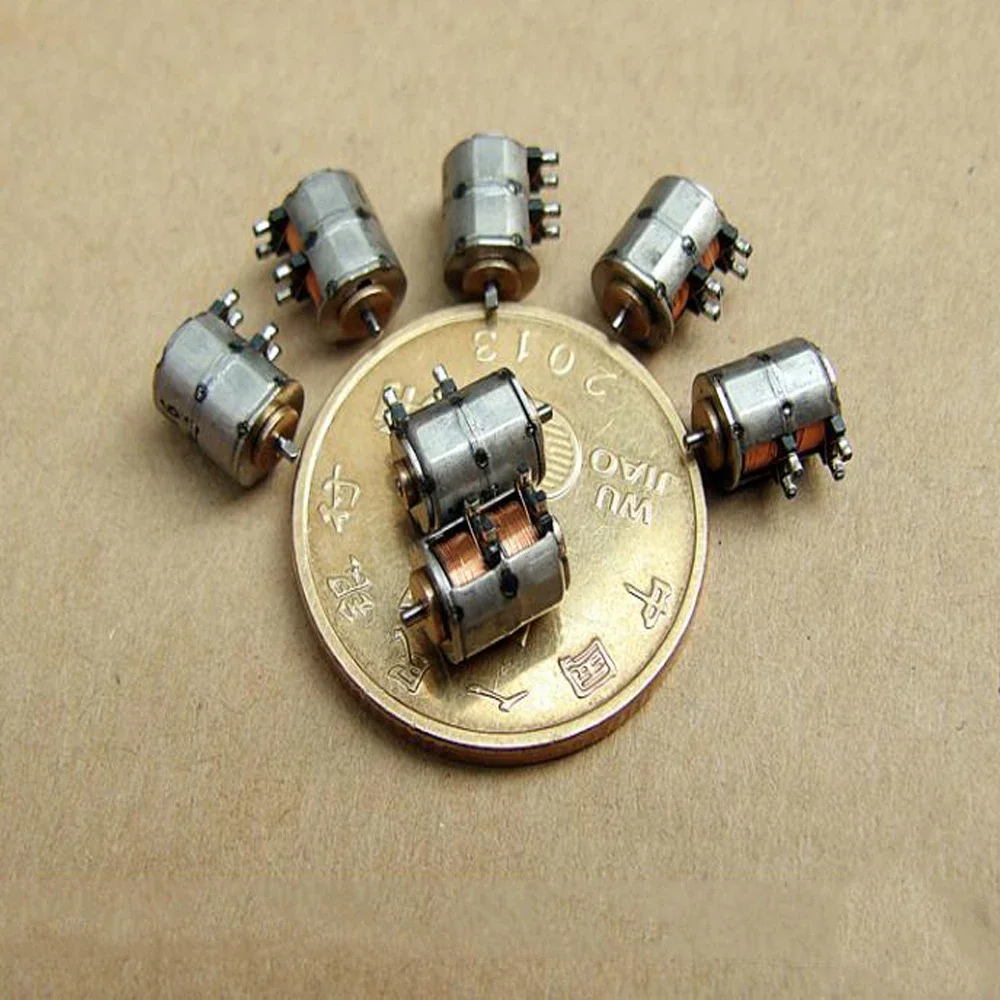

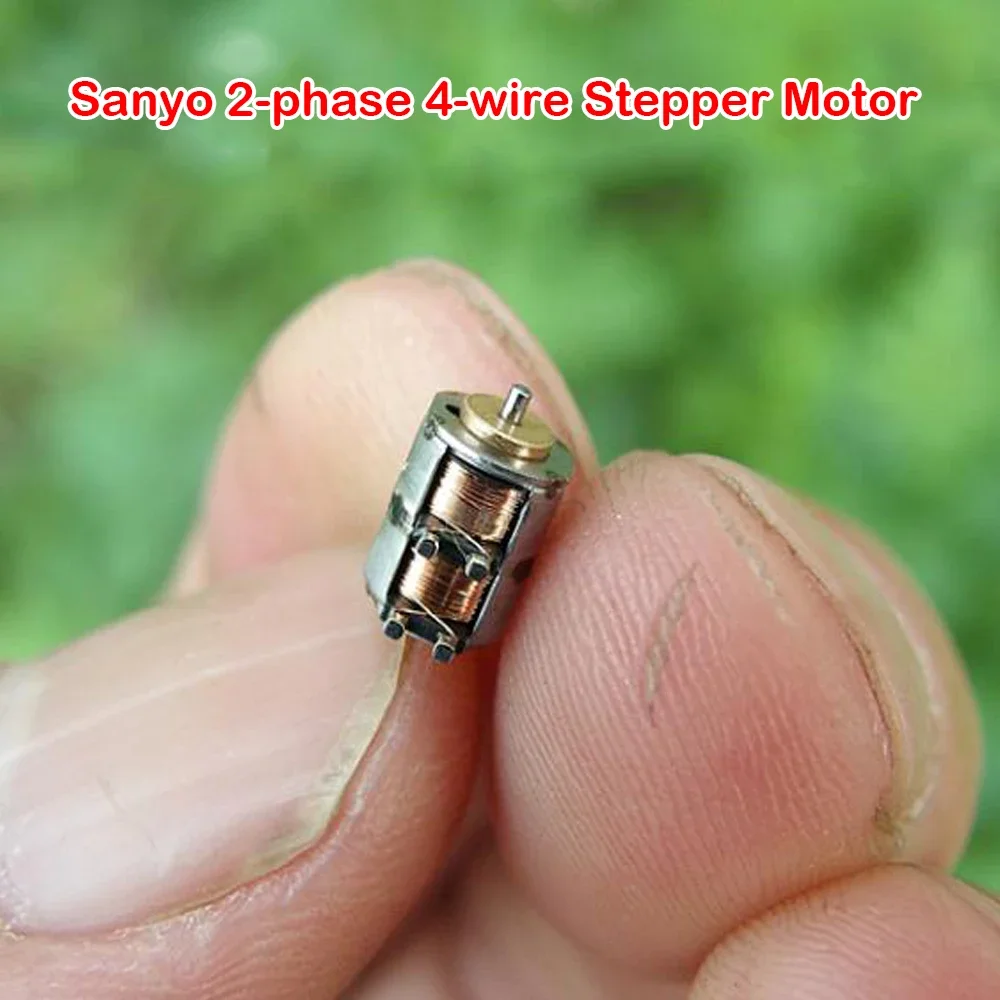

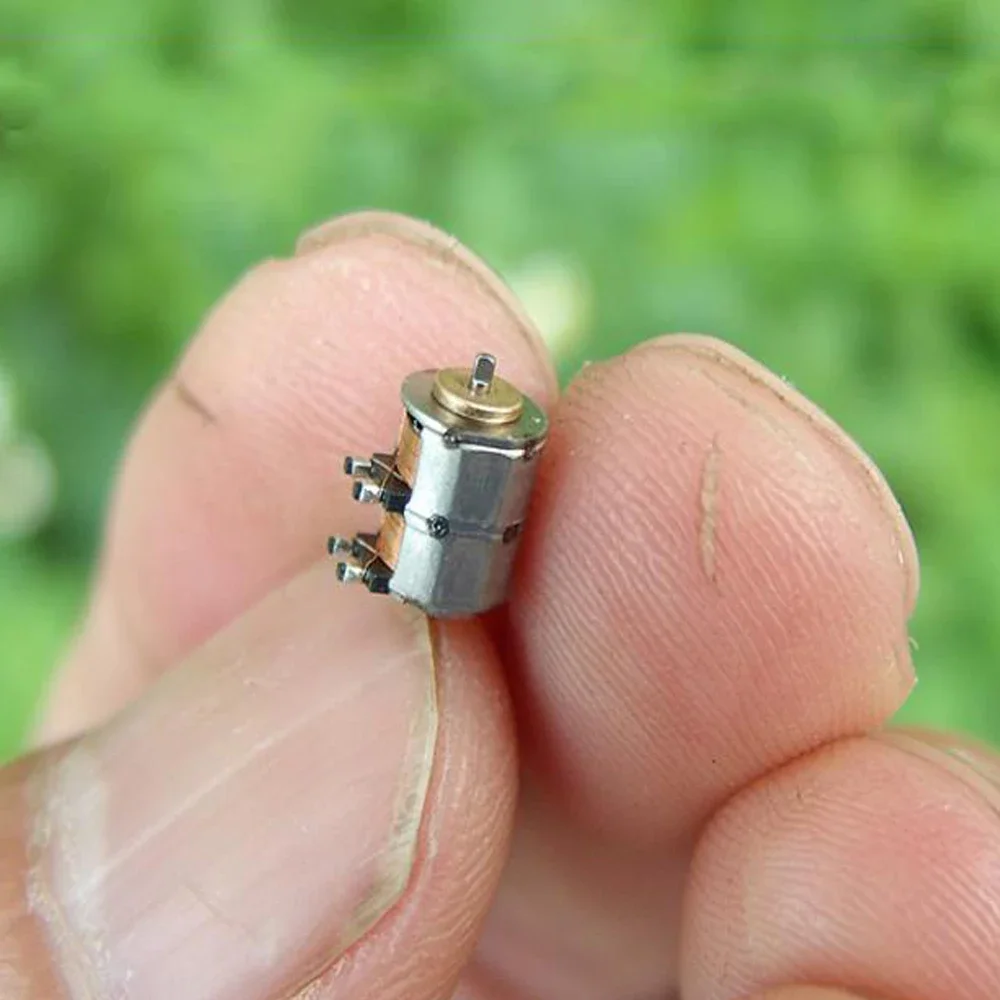

Ultraminiature 4.7MM Precision Stepper Motor Mini 2-phase 4-wire Stepper Motor DC 5V Stepper Motor

Tips: If you need large quantity, we can provide wholesales for you. Thanks Tips: The product may be updated constantly, the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance. Specification: Outer diameter of motor: 4.7 MM Motor height: 6

$2.36
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762
Tips: If you need large quantity, we can provide wholesales for you. Thanks

Tips: The product may be updated constantly, the color and appearance may be changed, please don't mind. And take a consideration before place the order if you have request for color or appearance.

Specification:

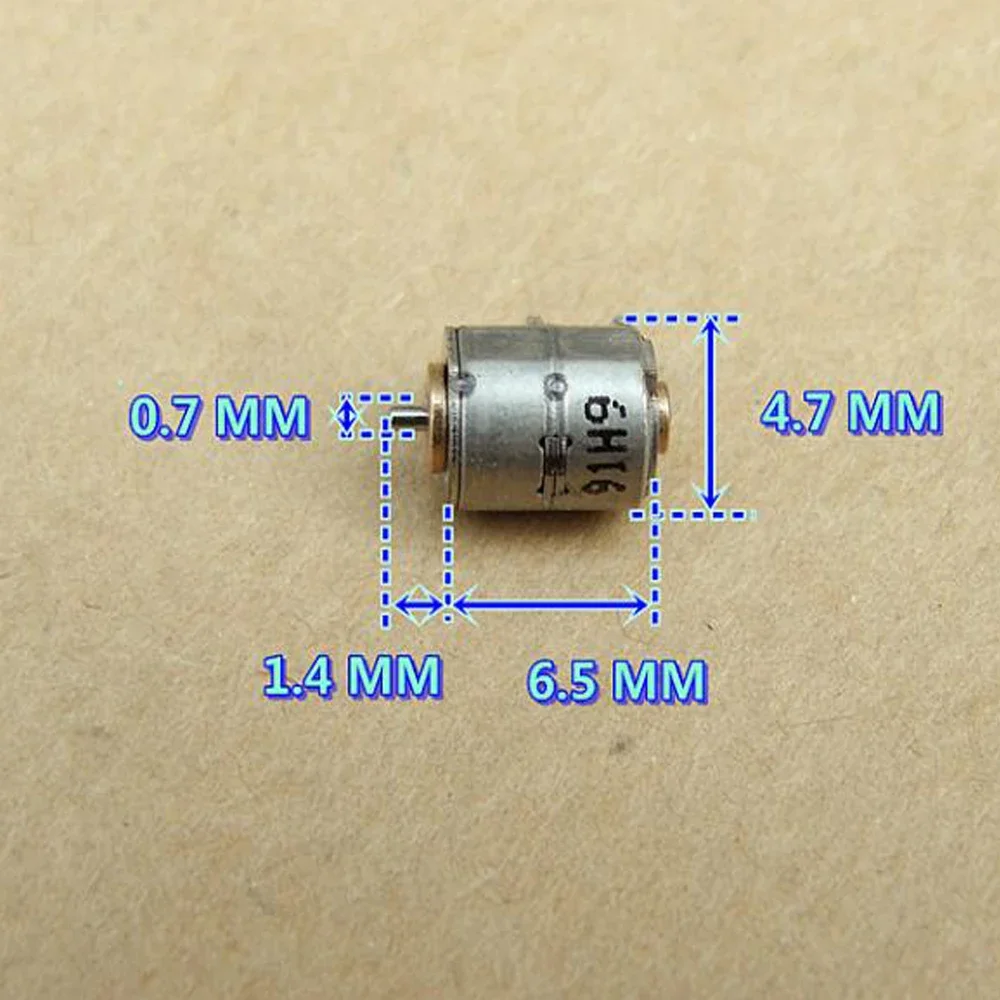

Outer diameter of motor: 4.7 MM

Motor height: 6.5 MM

Motor shaft diameter: 0.7 MM (flat 0.55 MM)

Output shaft length: 1.4 MM

Weight: 0.55 g

Model: Two phase four wire

Drive voltage: DC5V

Internal resistance: approximately 14.1 ohms

Voltage: DC 5V            Short circuit current: 0.31 A

Package Include:
1PCS *  Motor
