HLK-LD2410 LD2410B LD2410C 5V Mini Fmcw 24G Smart Human Presence Status Sensor Radar Module Consumer Electronic

1. Product introduction

HLK-LD2410 is a high-sensitivity 24GHz human presence status sensing module developed by Hilink Electronics. Its working principle is to use FMCW frequency-modulated continuous wave, to detect human targets in the set space, combined with radar signal processing, accurate human body induction algorithm, to achieve high sensitive human presence status sensing, which can identify the human body in motion and stationary state, and can calculate auxiliary information such as the distance to the target.

This product is mainly used in indoor scenes to sense whether there is a moving or micro-moving human body in the area, and output the detection results in real time. Farthest sensing distance up to 6 meters, distance resolution 0.75m. Provides a visual configuration tool, which can easily configure the sensing distance range and sensing in different intervals sensitivity and unmanned delay time, etc., to adapt to different specific application needs.

Support GPIO and UART output, plug and play, and can be flexibly applied to different smart scenarios and terminal products.

2. Product Features

• Plug and play, easy assembly

• The longest sensing distance is up to 5 meters

• Large detection angle, coverage up to ±60 degrees

• Accurate identification within the interval, support the division of the sensing range, and shield the interference outside the interval

• Multi-level intelligent parameter adjustment to meet the needs of scene changes

• Visual debugging and configuration tools

• Small and simplified, the minimum size is only 7mmx35mm

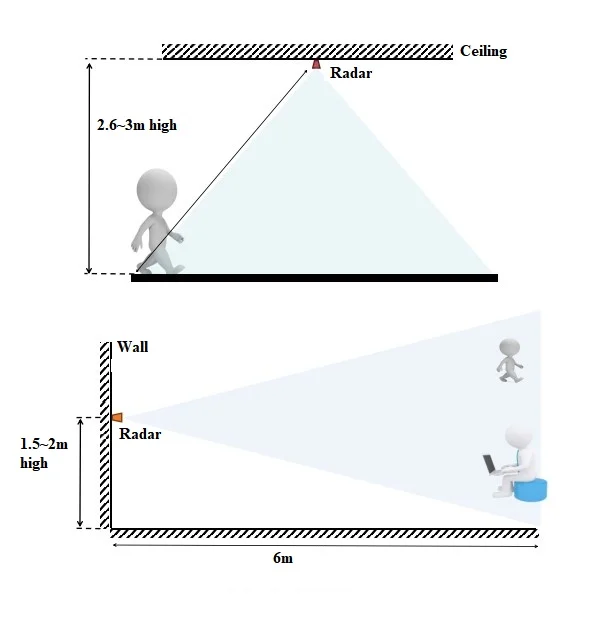

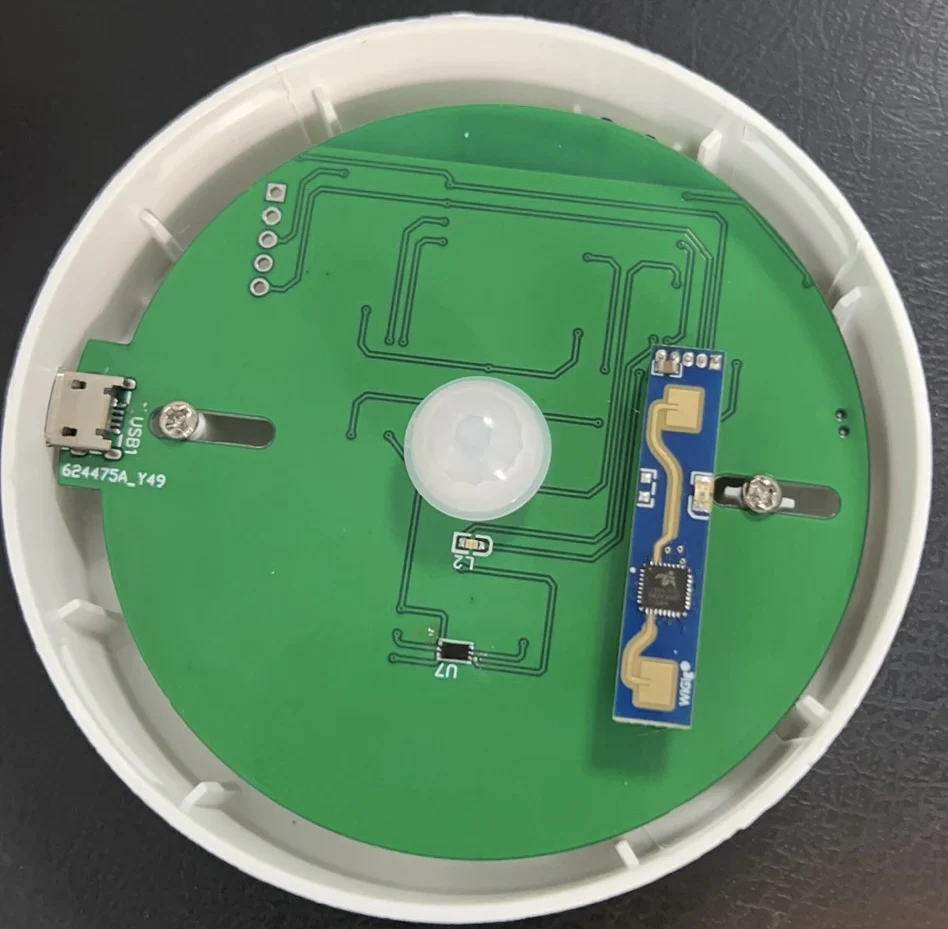

• Supports various installation methods such as ceiling hanging and wall hanging

• 24GHz ISM band, compliant with FCC and CE spectrum regulations

• 5～12V wide voltage power supply

• The ultimate cost-effective choice

3. Benefits

LD2410 human body sensing module adopts 24GHz millimeter wave radar sensor technology. Compared with other solutions, it has obvious advantages in human body sensing applications:

1. In addition to being sensitive to moving human bodies, it can also sensitively sense static, micro-moving, sitting and lying human bodies that cannot be identified by traditional solutions;

2. It has good environmental adaptability, and the sensing effect is not affected by the surrounding environment such as temperature, brightness, humidity and light fluctuations;

3. It has good shell penetration and can be hidden in the shell to work without opening holes on the surface of the product, which improves the aesthetics of the product;

4. It can flexibly configure the farthest sensing distance and the sensitivity on each distance door to achieve flexible and fine personalized configuration.

4. Hardware Description

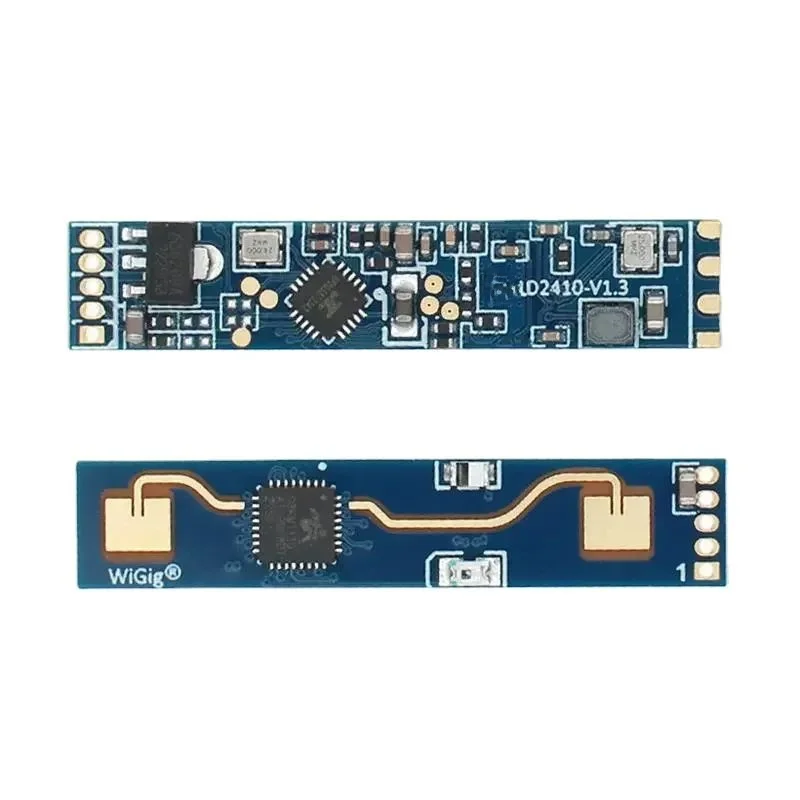

4.1 Features HLK-LD2410(BLE)

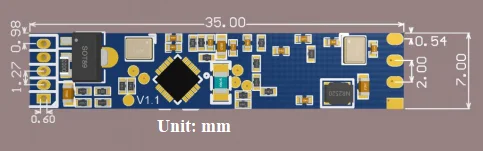

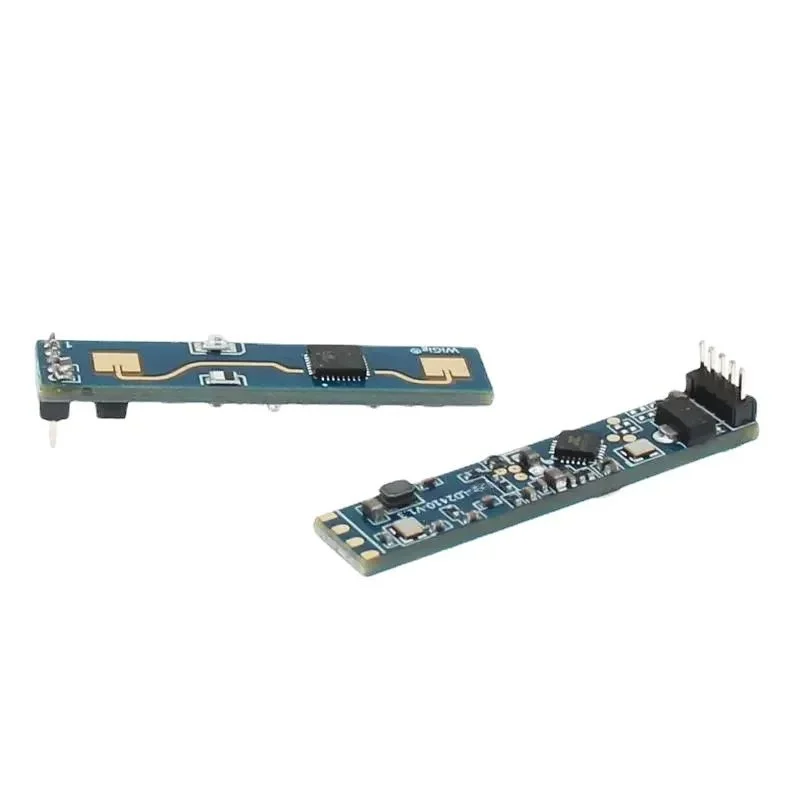

Module size: 7mmx35mm, 5 pin holes are reserved in the hardware (the factory default does not match the pins)

The pin hole diameter is 0.6mm, and the pin spacing is 1.27mm.

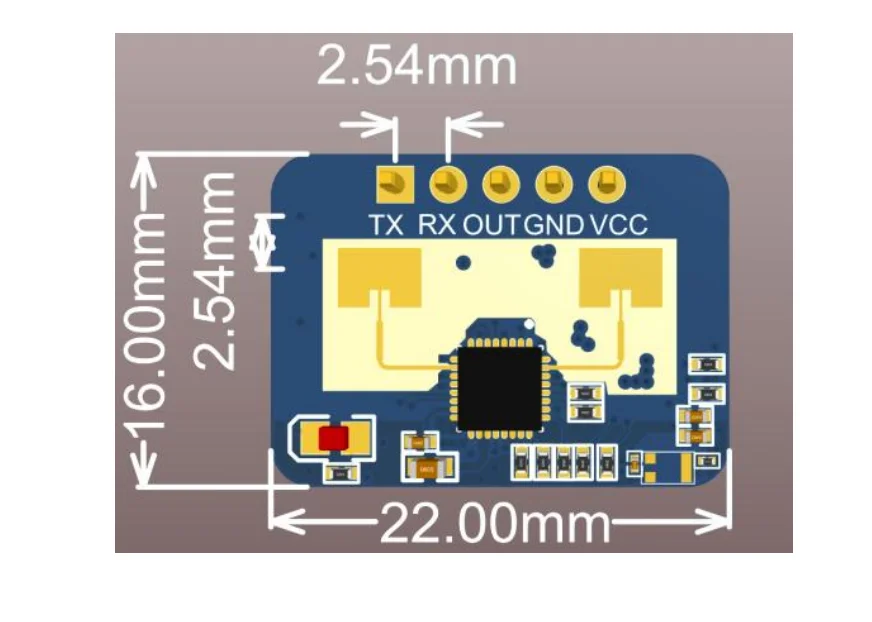

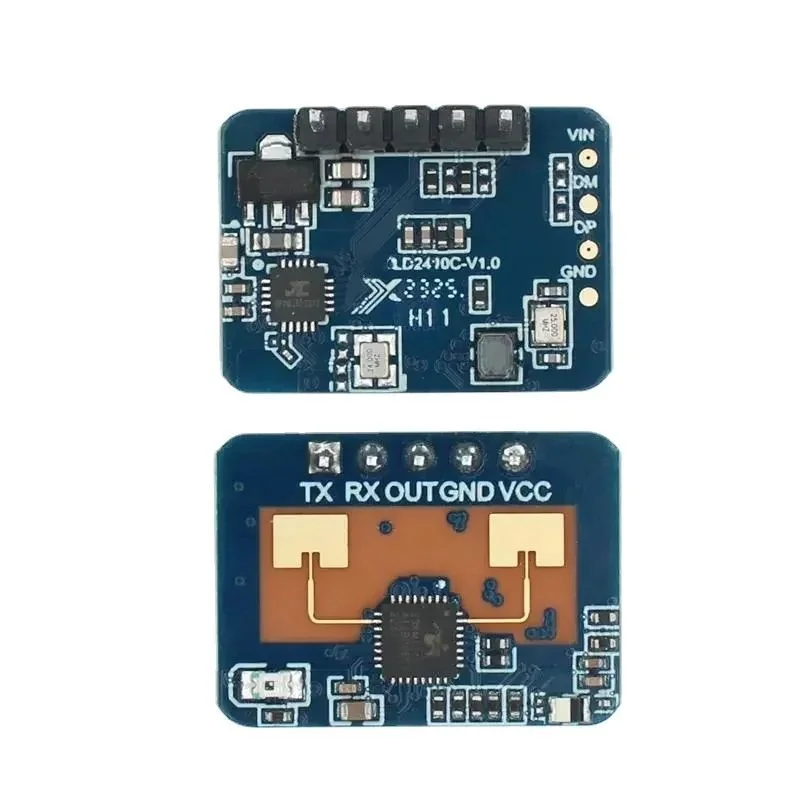

HLK-LD2410C

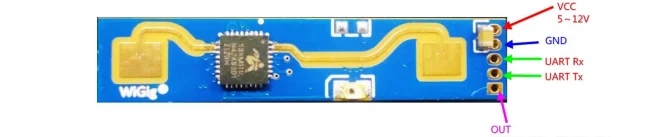

4.2 Pin definition

5. Visual Configuration Tool Description

In order to facilitate the user to test and configure the module quickly and efficiently, a PC configuration tool is provided. The user can use this tool software to connect the serial port of the module, read and configure the parameters of the module, and receive the detection results reported by the. module. Data, and real-time visual display, which greatly facilitates .the use of users.

How to use the host computer tool:

• Use the USB to serial port tool to connect the module serial port correctly

• Select the corresponding serial port number in the host computer tool, set the baud rate to 256000, select the engineering mode, and click to connect the device

• After the corresponding is successful, click the start button, the right graphical interface will display the test results and data

• After connecting, if the start button is not clicked, or click stop after starting,the mode parameter information can be read or set

Note:The parameters cannot be read and configured after clicking start, and configuration can only be performed after stopping.

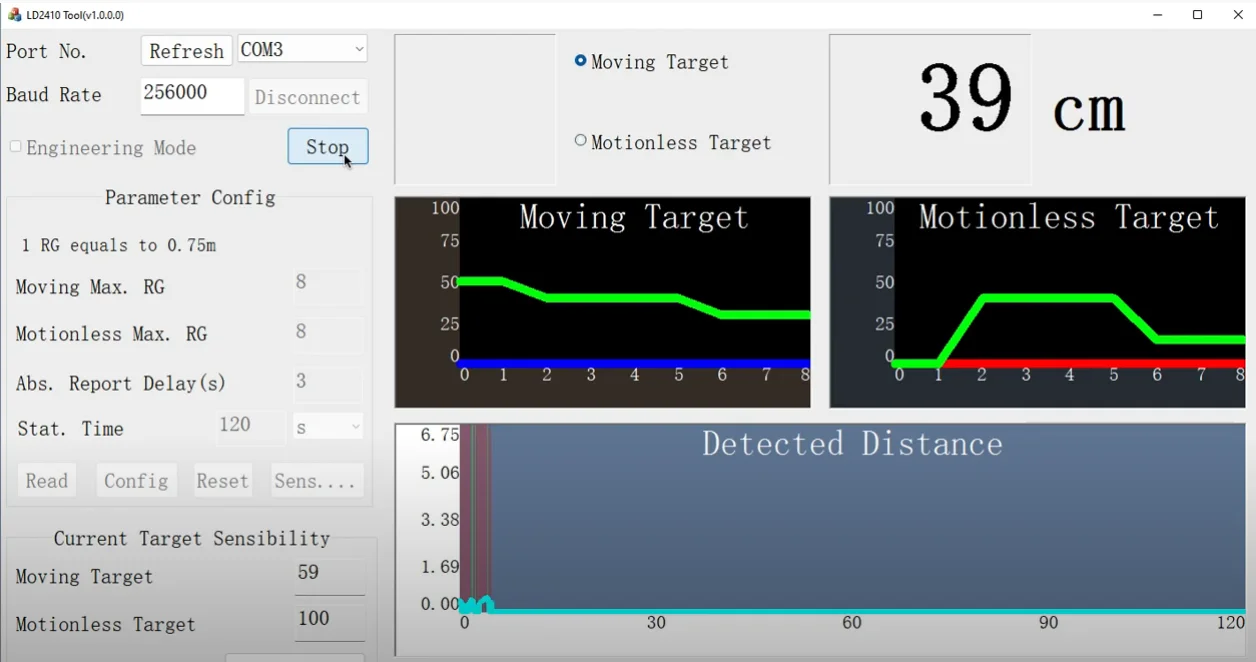

The interface and common functions of the host computer tool are as follows:

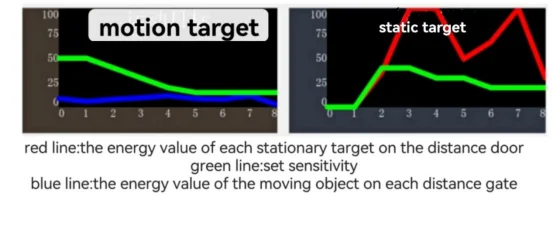

The ball is the target state output indication: red means that there is a moving target, and purple means that there is a stationary target:,Green means no one.

6. Bluetooth instructions (LD2410(BLE) / LD2410C)

6.1 Install software (English version)
