(855) I-BUY-ROBO (855) 428-9762LD2410 Human Presence Radar Sensor Module

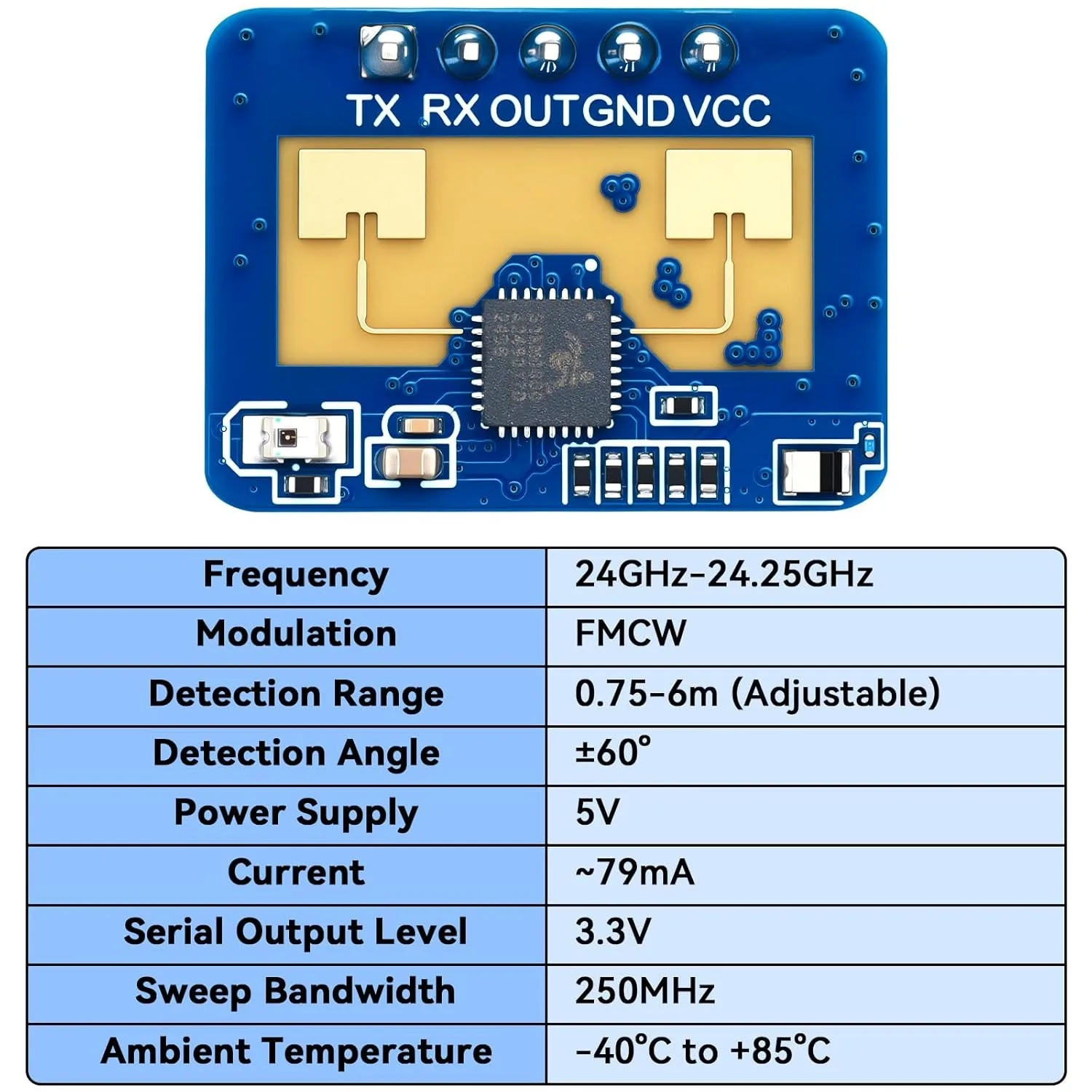

Product characteristics
Frequency: 24GHz~24.25GHz
Modulation mode: FMCW
Detection distance: 0.75m~6m adjustable
Detection angle: ± 60°
Power supply: 5V
Current: 79mA
Output serial port level: 3.3V
Sweep bandwidth: 250MHz
Range resolution 0.75m
Ambient temperature: - 40℃~+85℃
Data format: serial port ASCII output/high and low level 3.3V&0V

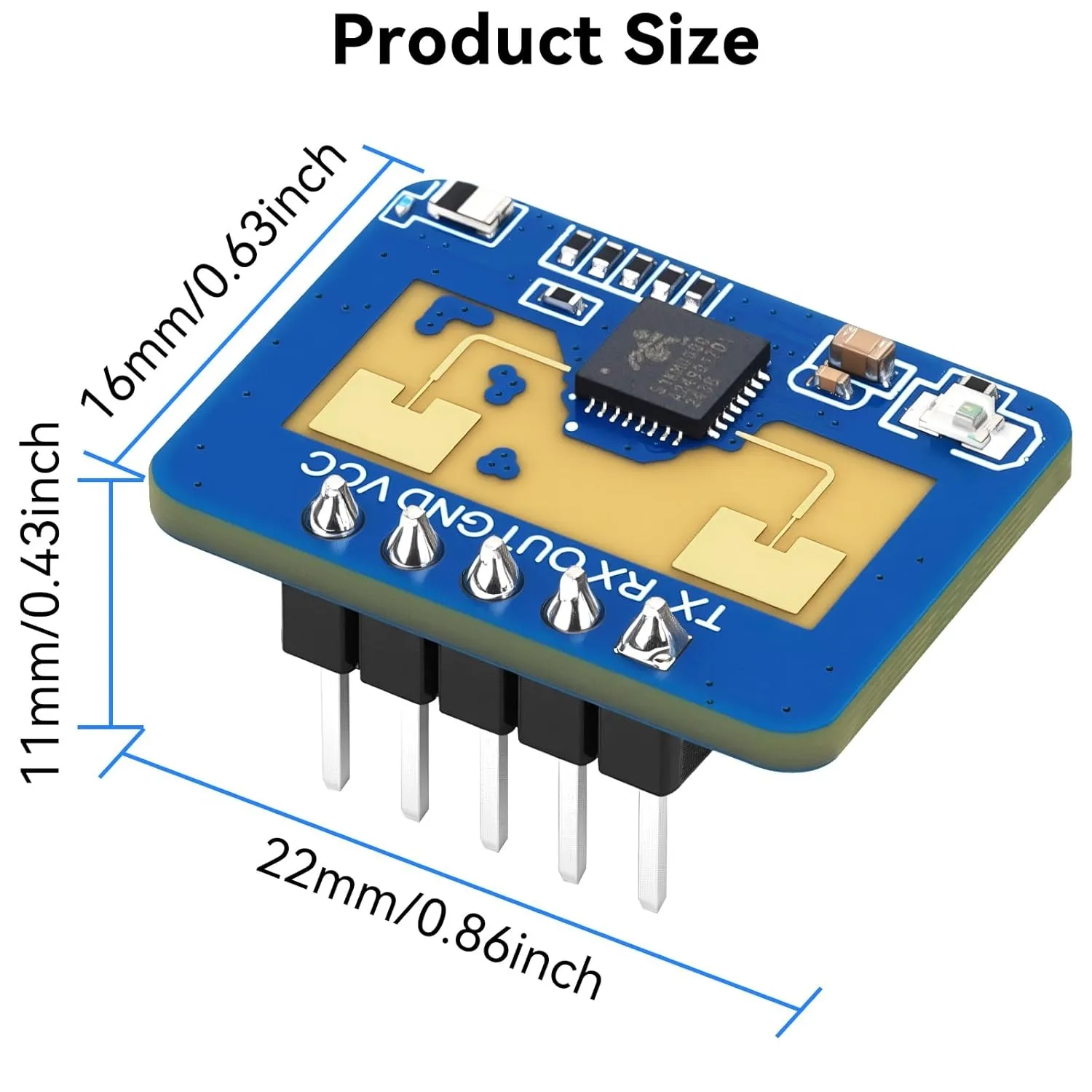

Module size: 16mmx22mm, with 5 pin holes reserved for hardware (factory default pin)
The hole diameter of pin hole is 0.9mm, and the distance between bow and foot is 2.54mm
