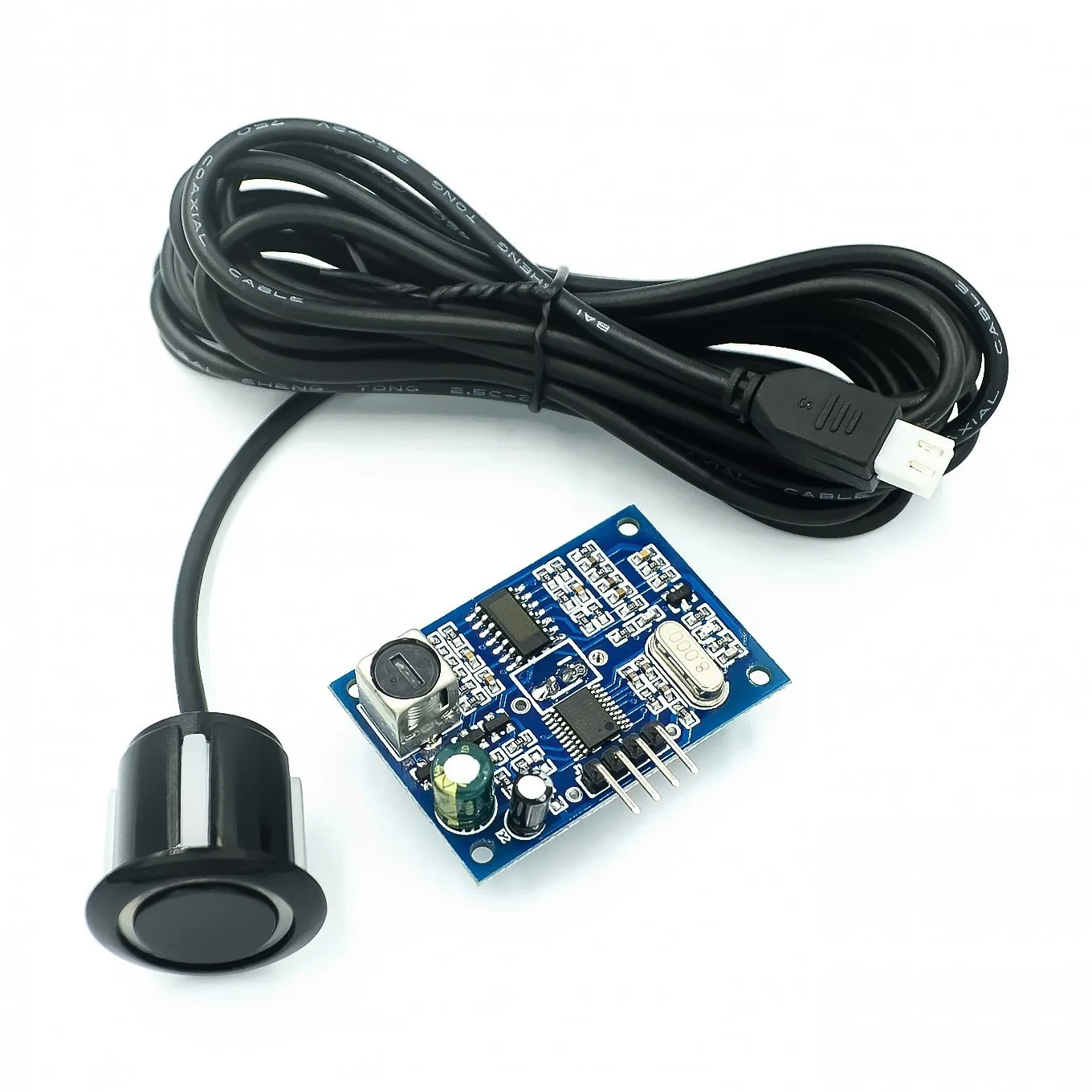

Waterproof Ultrasonic Module JSN-SR04T / AJ-SR04M Water Proof Integrated Distance Measuring Transducer Sensor for Arduino

Electrical properties 1.Electrical parameters:  JSN-SR04T 2.Operating voltage:  DC 5V 3.Quiescent current:  5mA 4.Total current work:  30mA 5.Acoustic emission frequency:  40khz 6.Farthest distance:  4.5m 7.Blind: 25cm 8.Wiring:   + 5V (positive power supply) Trig (control side) RX Echo (the receiver) TX GND (negative) 9.Resolution:  about 0.5cm 10.Angle:  less than 50 degrees 11.Working temperature: &

$9.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762
Electrical properties
1.Electrical parameters:  JSN-SR04T
2.Operating voltage:  DC 5V
3.Quiescent current:  5mA
4.Total current work:  30mA
5.Acoustic emission frequency:  40khz
6.Farthest distance:  4.5m
7.Blind: 25cm

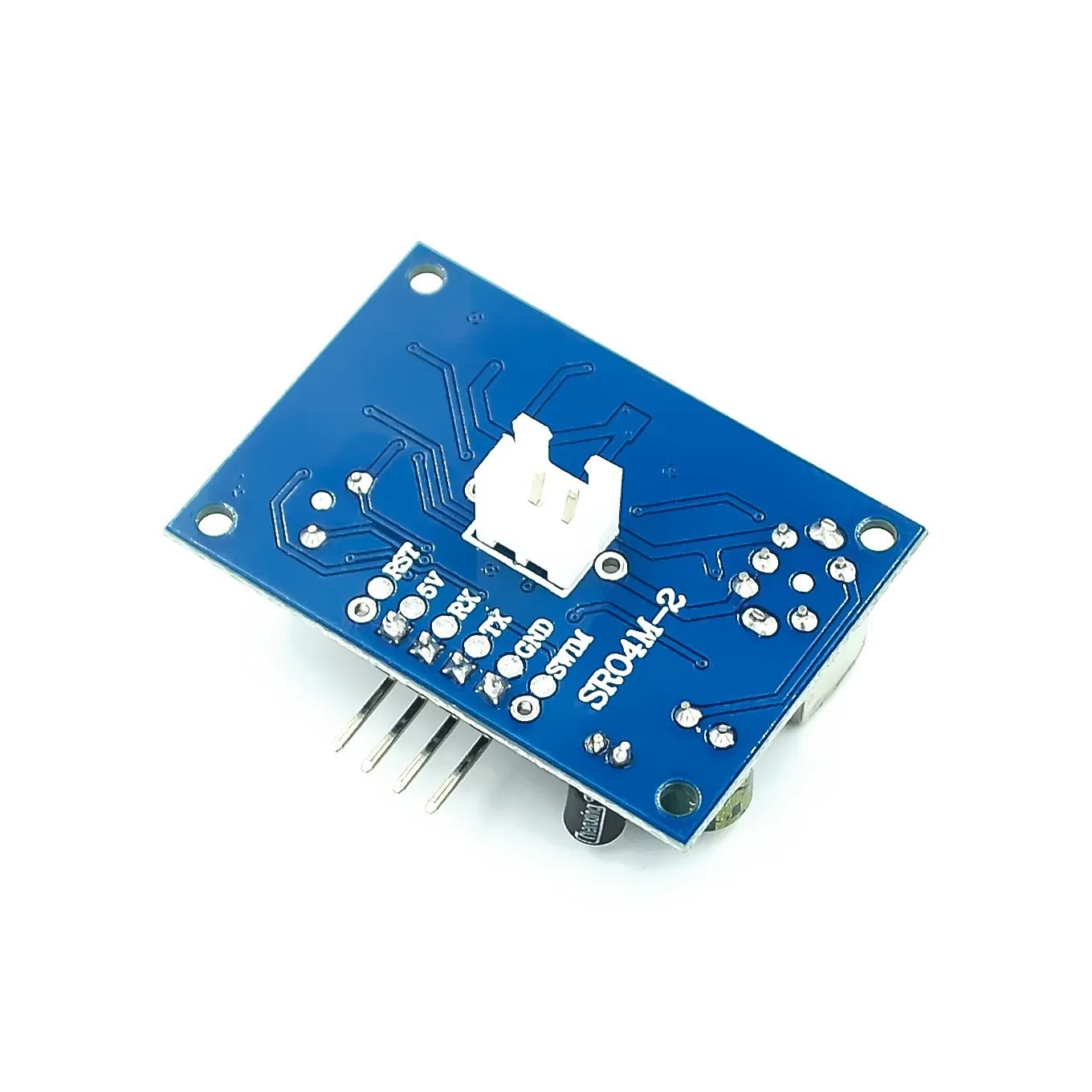

8.Wiring:   + 5V (positive power supply)
Trig (control side) RX
Echo (the receiver) TX
GND (negative)
9.Resolution:  about 0.5cm
10.Angle:  less than 50 degrees
11.Working temperature:  -10 ~ 70 Celsuis
12.Storage temperature:  -20 ~ 80 Celsuis

Product Features
1.Small size, easy to use
2.Low voltage, low power consumption
3.High accuracy
4.Strong anti-jamming

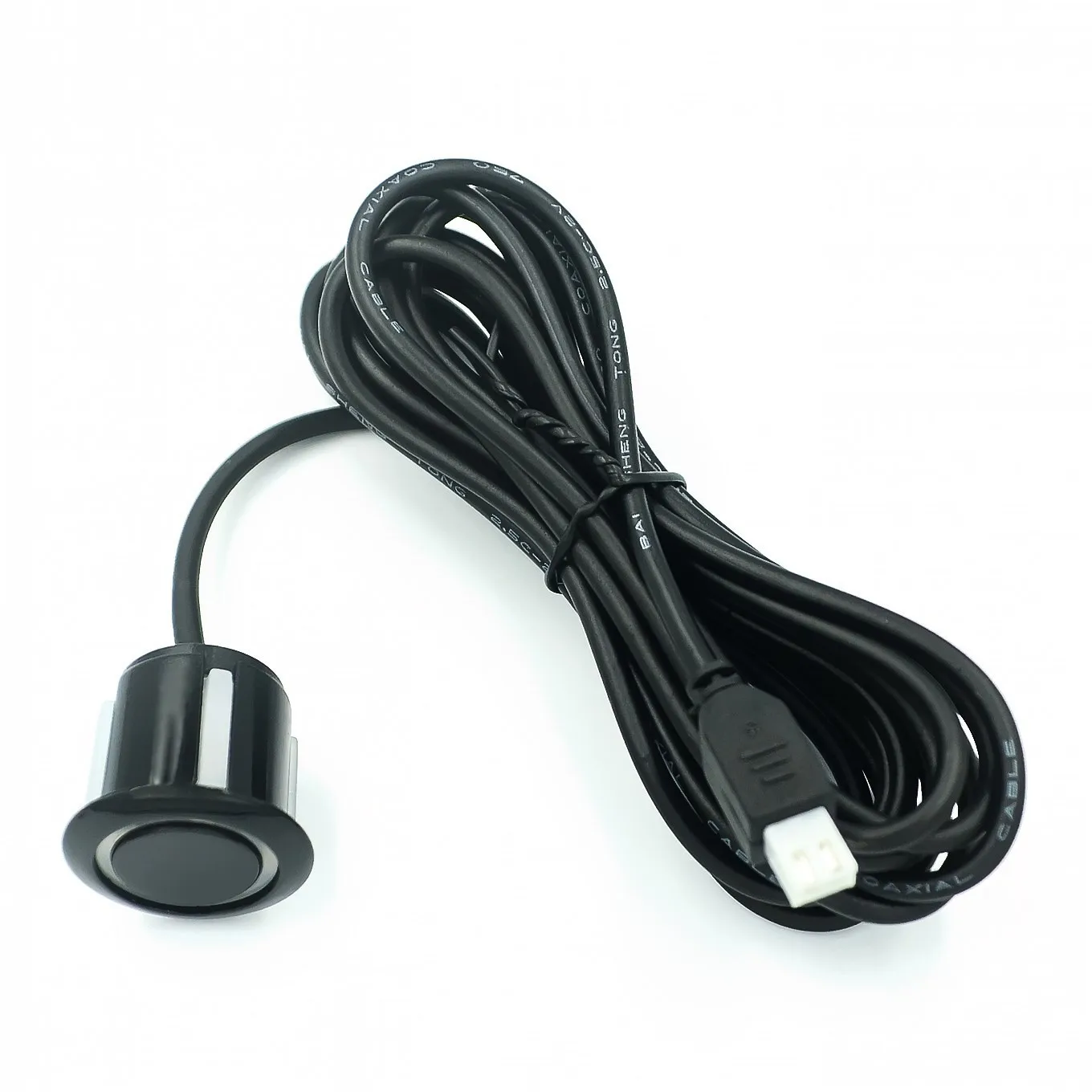

5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Application
1.Horizontal distance;
2.Obstacle avoidance, automatic control;
3.The object approaches, there is a perceived
4.Traffic control;
5.Security, industrial control;
6.Artificial intelligence, and research
