Odesc V4.2 Single-Drive High-Current High-Precision Brushless Servo Motor Controller, Based On ODrive3.6 Upgrade
Spec:Hardware Version:ODESC V4.2Drive motor:Brushless DC motor (BLDC)Braking method:Power resistors, battery recyclingMicroprocessor:STM32F405RGT6Working voltage:8-24V, 8-56VMaximum current:120AContinuous current:70AWiring Diagram:
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762
Spec:
Hardware Version:ODESC V4.2
Drive motor:Brushless DC motor (BLDC)
Braking method:Power resistors, battery recycling
Microprocessor:STM32F405RGT6

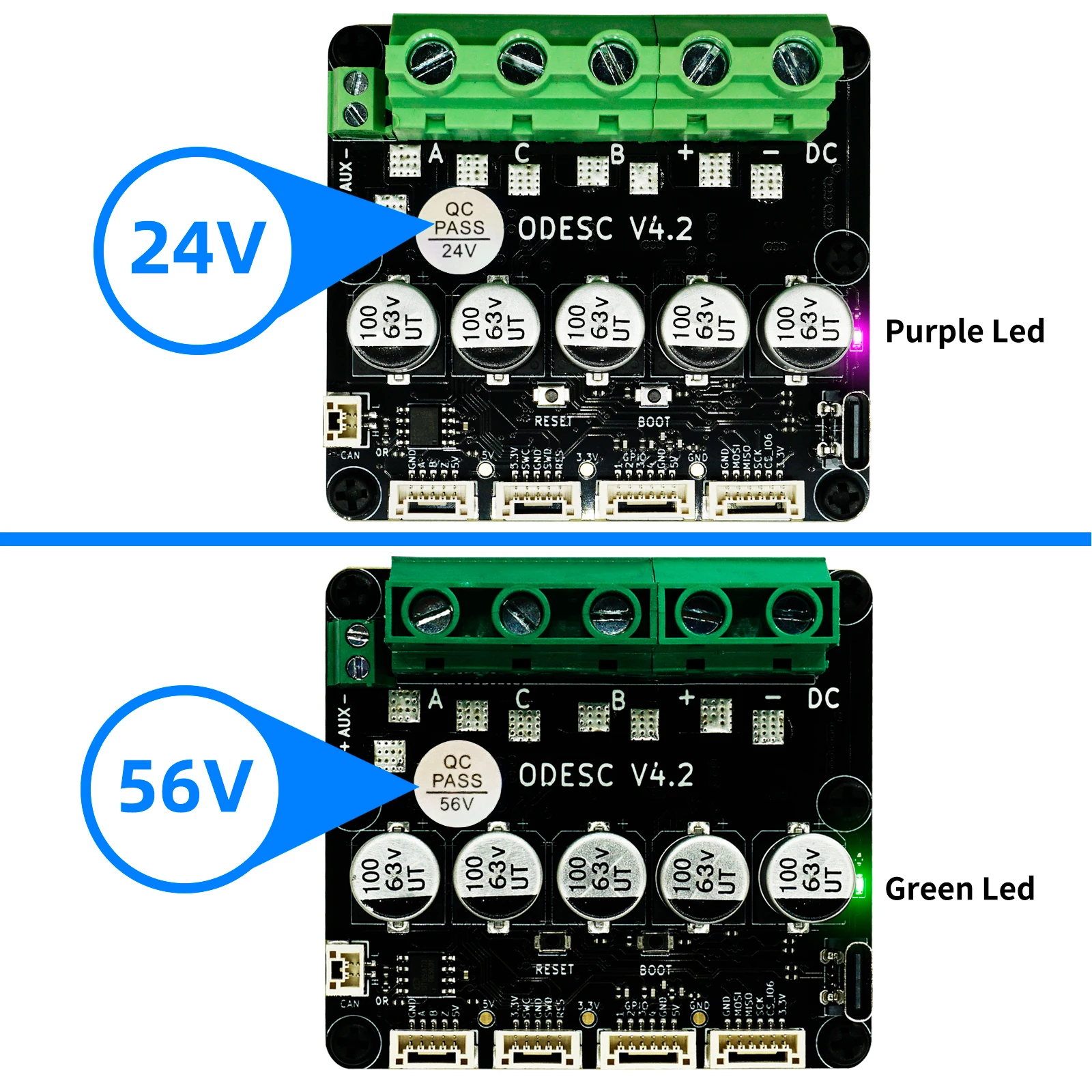

Working voltage:8-24V, 8-56V
Maximum current:120A
Continuous current:70A

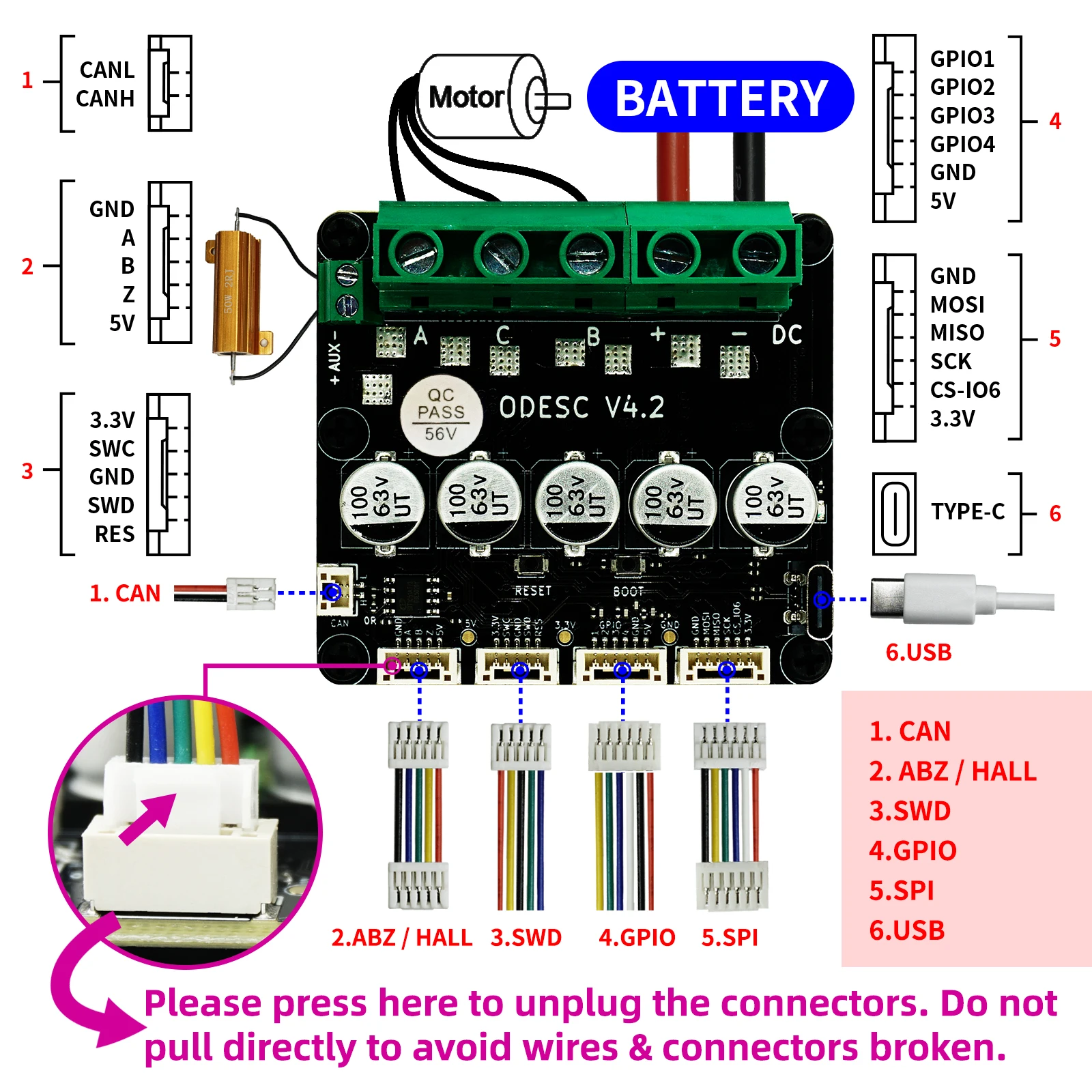

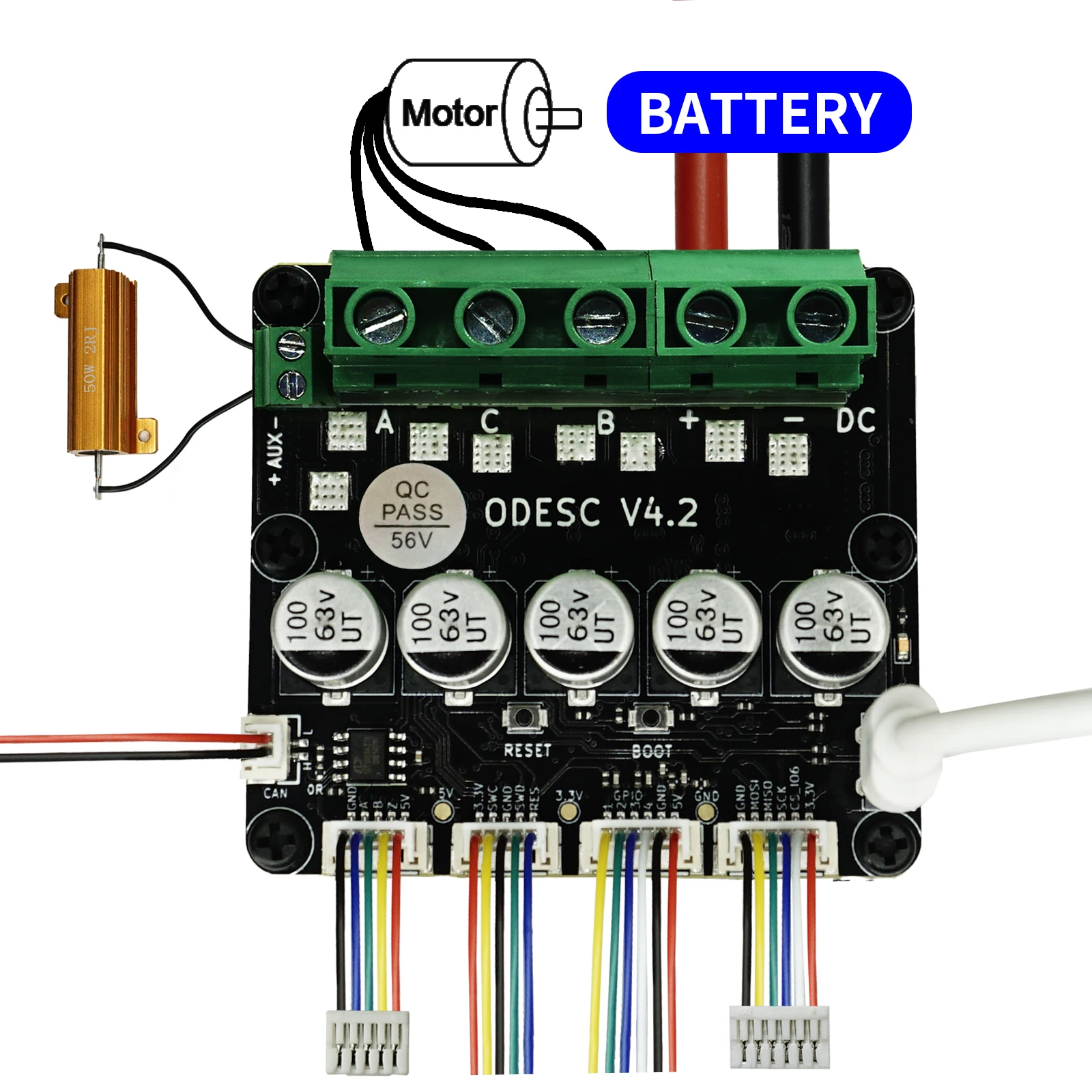

Wiring Diagram:
Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
