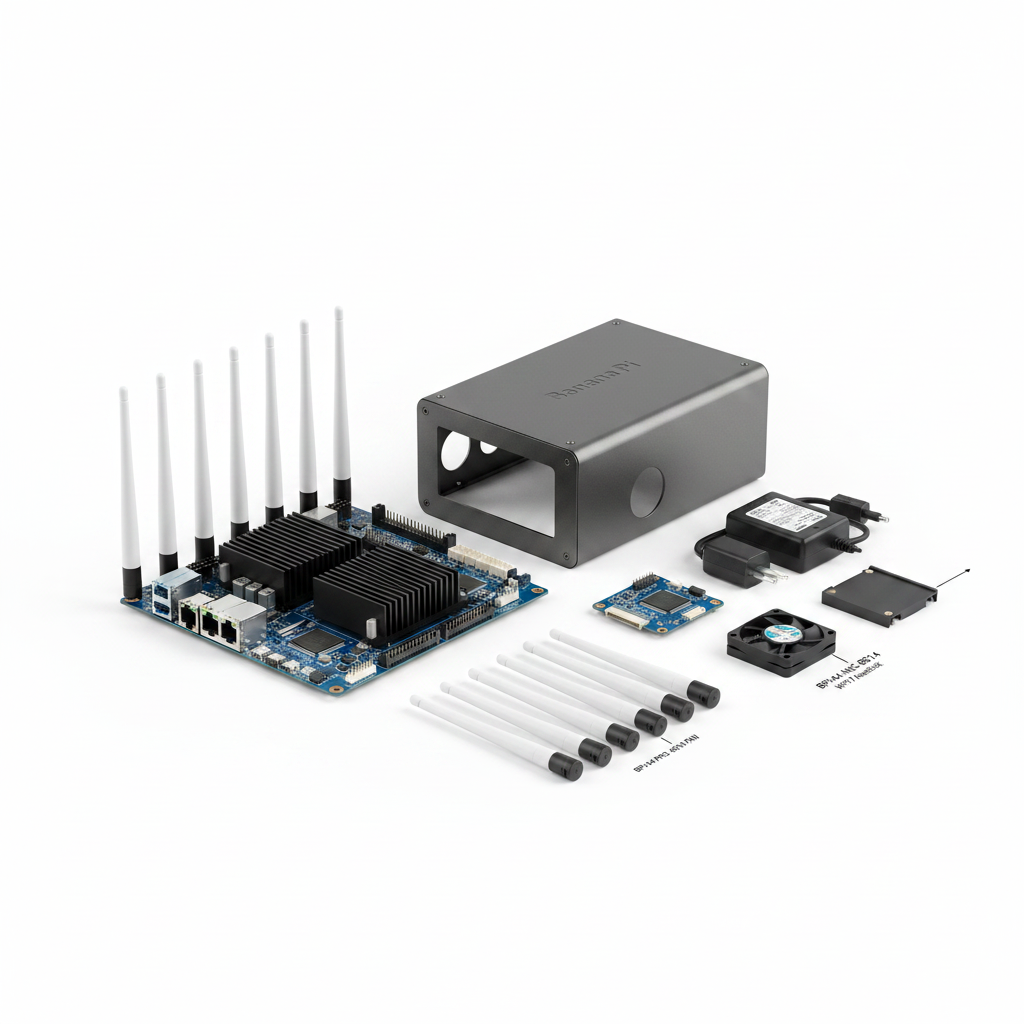

Banana Pi BPI-R4 PRO Router Board Kit with Case Power Supply Fan, MediaTek MT7988A Quad-Core Cortex-A7, 8GB DDR4 8GB eMMC

Banana Pi BPI-R4 PRO SET With Case Power Supply And Fan MediaTek MT7988A Quad-core Arm Corex-A7 8GB DDR4 8GB eMMC Router BoardKey FeaturesBPI-R4Pro(8X)MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor8GB DDR48GB eMMC flash256MB SPI-NAND FlashMicro SD card slot1x 10G SFP WAN1x 10G RJ45 WAN(combo with 10G SFP WAN)1x 10G SFP LAN1x 10G RJ45 LAN(combo with 10G SFP LAN)4x 2.5G RJ45 LAN1x 1G RJ45 LAN1x 1G LAN(FPC Connector)2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC2x M.2 M-KEY

$621.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762

Banana Pi BPI-R4 PRO SET With Case Power Supply And Fan MediaTek MT7988A Quad-core Arm Corex-A7 8GB DDR4 8GB eMMC Router Board

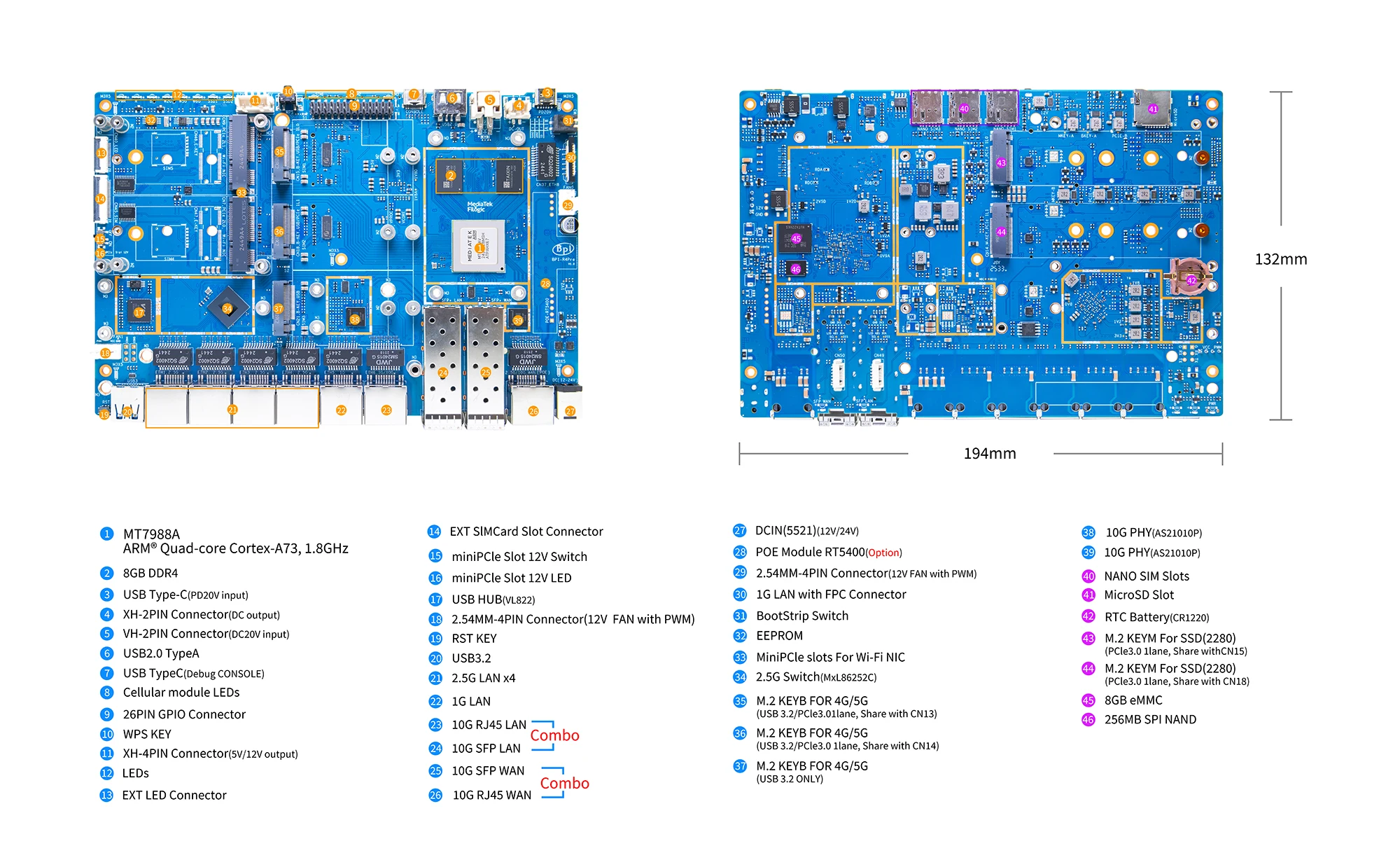

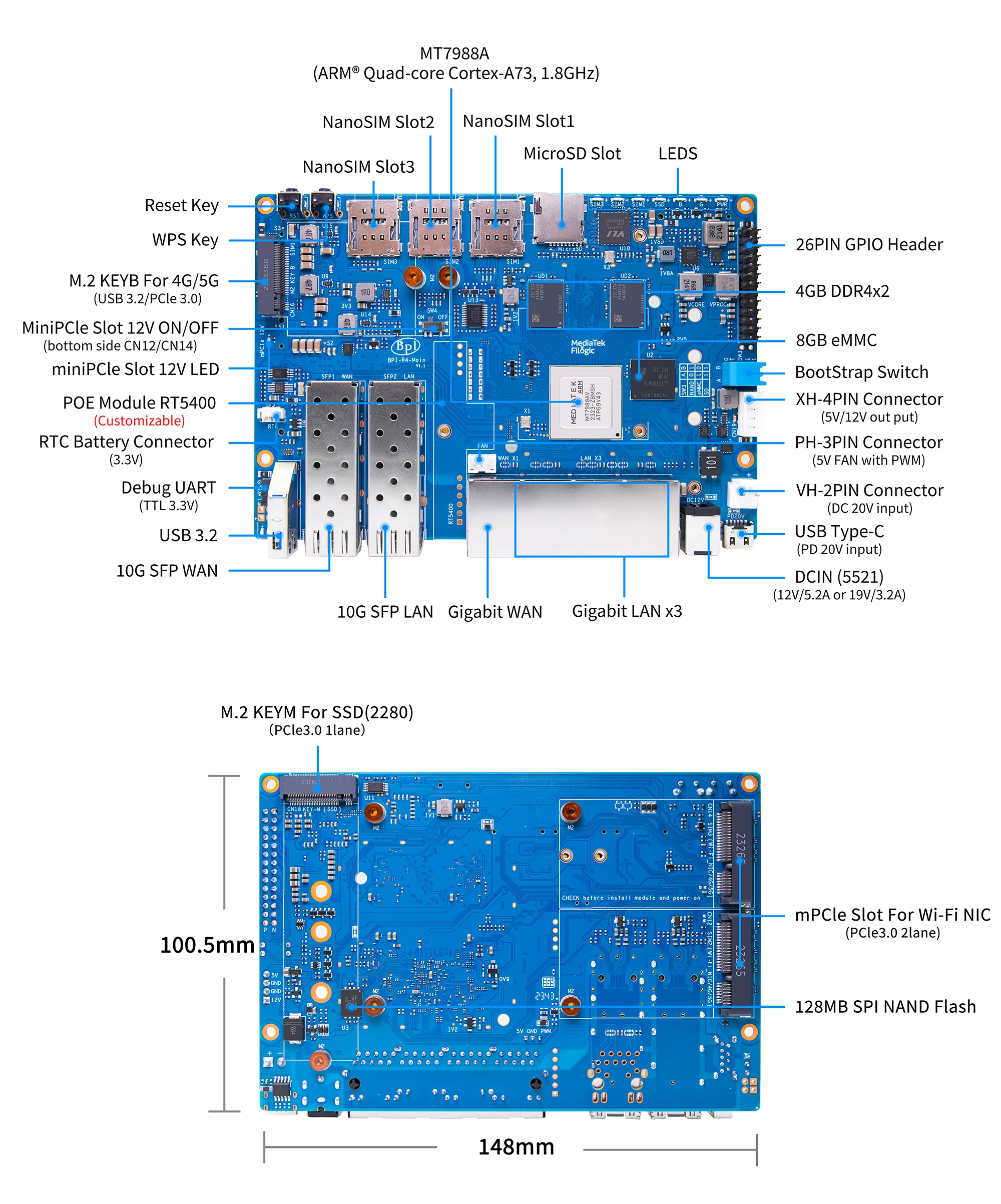

Key Features

BPI-R4Pro(8X)

  • MediaTek MT7988A Quad-core Arm Corex-A73,1.8GHz processor

  • 8GB DDR4

  • 8GB eMMC flash

  • 256MB SPI-NAND Flash

  • Micro SD card slot

  • 1x 10G SFP WAN

  • 1x 10G RJ45 WAN(combo with 10G SFP WAN)

  • 1x 10G SFP LAN

  • 1x 10G RJ45 LAN(combo with 10G SFP LAN)

  • 4x 2.5G RJ45 LAN

  • 1x 1G RJ45 LAN

  • 1x 1G LAN(FPC Connector)

  • 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC

  • 2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD (PCIe signal can switch to M.2 B-KEY slot)

  • 3x M.2 B-KEY slots with USB3.2 for 5G Module

  • 1x USB3.2 slot

  • 1x USB2.0 slot

  • 1x USB TypeC Debug Console

  • 2x13 PIN Header for expanding application

Application

  • Internet service Router

  • Wifi7 Wireless Router

  • 4G/5G Wireless Router

  • Wireless Repeater

  • Home security Gateway

  • Home Automation

  • Nas device

  • Network and communication applications

MediaTek MT7988(Filogic 880)

The MediaTek Filogic 880 platform provides a 36 Gbps Wi-Fi 7 access point/router/gateway solution that delivers the fastest and most reliable connectivity experience.

The MediaTek MT7988A is a world-class network processor designed for high-performance and reliable networking in both wired and wireless applications. It offers a comprehensive set of connectivity interfaces, including four Gigabit Ethernet ports, two USXGMII interfaces, four PCIe interfaces, and two USB 3.2 Gen 1 ports.

The MT7988A further enables seamless tri-band Wi-Fi 7 connectivity across the 2.4 GHz, 5 GHz, and 6 GHz bands, with its Wi-Fi 7 companion chip featuring 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC

To meet the needs of rapidly evolving tunneling applications, the MT7988A comes equipped with the MediaTek Tunnel Offload Processor System (TOPS), which facilitates the processing of a wide range of tunneling protocols. The MT7988A optimizes networking performance with a finely tuned ISA of MediaTek TOPS, delivering premium-level offloading capabilities.

NOTE:Some functions require continuous software updates and improvements.
