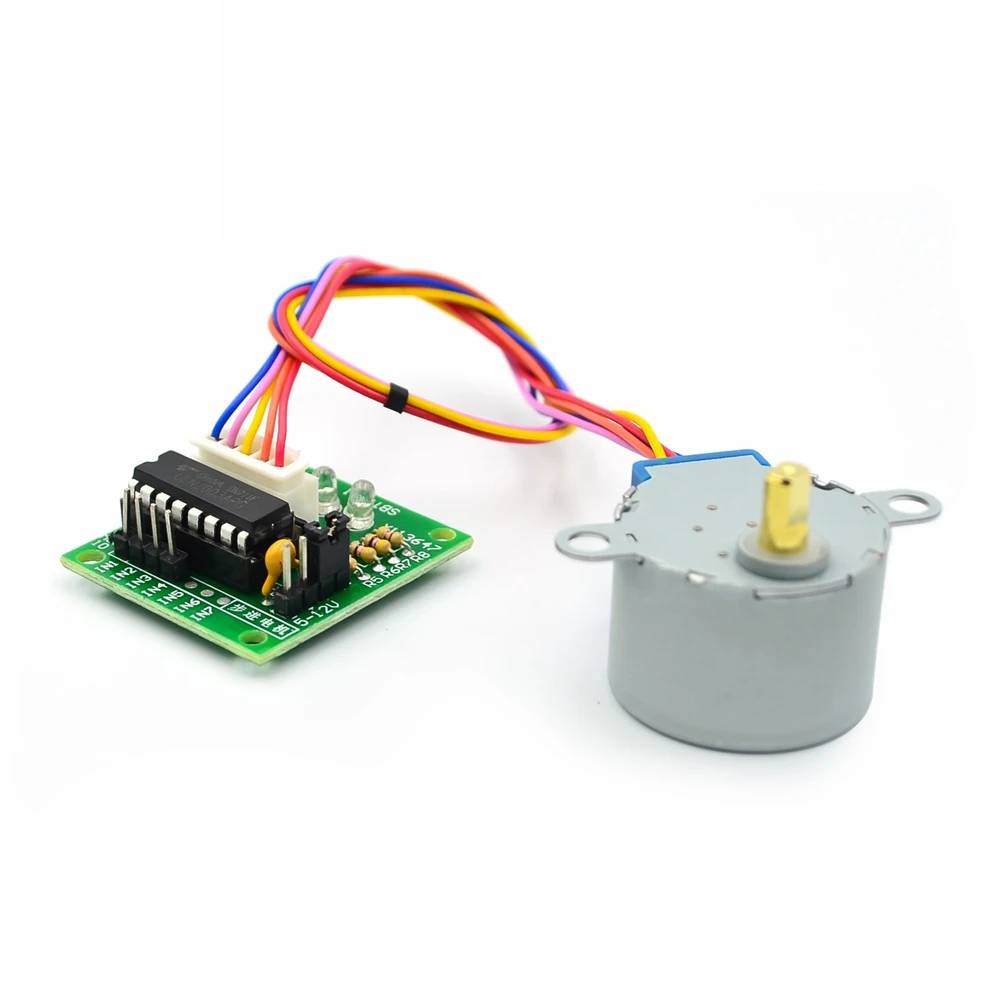

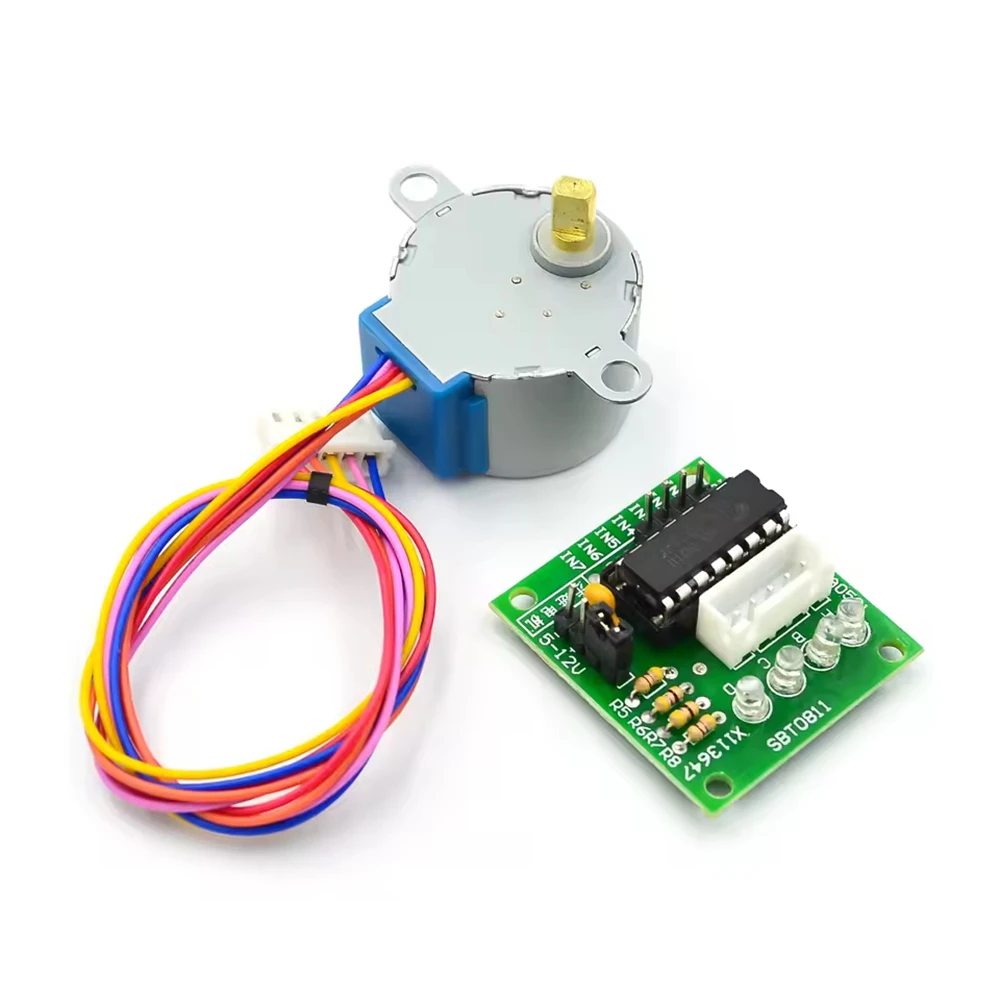

3/5 Set 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board Suitable for Arduino Driver Test Module Stepper Motors DIY Kit
Features:*100% Brand new and high quality*Made of high quality material, more durable.*Low noise, reliable use*DC 5V 4-phase stepper motor + for Arduino driver test module board*A, B, C, D four-phase LEDs indicate the working state of the stepper motor*Stepper motor with standard interface for direct insertionSpecifications:*Color: As Pictures Show*Rated voltage: DC5V 4 phase*Step angle: 5.625 x 1/64*No load absorption frequency: >600Hz*No-load extraction frequency: >1000Hz*Pulling torque:
- Exceptional torque-to-weight ratio for heavy mechanical loads
- Built-in robust reduction gearbox for stable angular velocity
- Durable all-metal gear configuration resisting wear and tear
- Smooth rotation control with minimal mechanical backlash
- Compatible with standard PWM and H-bridge motor driver boards
- Quiet operation and minimal thermal output during continuous load
- Standardized mounting holes for quick and clean structural assembly
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Features:
*100% Brand new and high quality
*Made of high quality material, more durable.
*Low noise, reliable use
*DC 5V 4-phase stepper motor + for Arduino driver test module board
*A, B, C, D four-phase LEDs indicate the working state of the stepper motor
*Stepper motor with standard interface for direct insertion
Specifications:
*Color: As Pictures Show
*Rated voltage: DC5V 4 phase
*Step angle: 5.625 x 1/64
*No load absorption frequency: >600Hz
*No-load extraction frequency: >1000Hz
*Pulling torque: >34.3mN.m (120Hz)
*stop torque: >34.3MN.m
*DC resistance: 200Ω±7% (25C)
*Insulation resistance: >10MΩ (500V)
*Dielectric strength: 600V AC / 1mA / 1s
*Edge rating: A
*Temperature rise: <40K (120Hz)
*Noise: <40dB (120Hz, no load, 10cm)

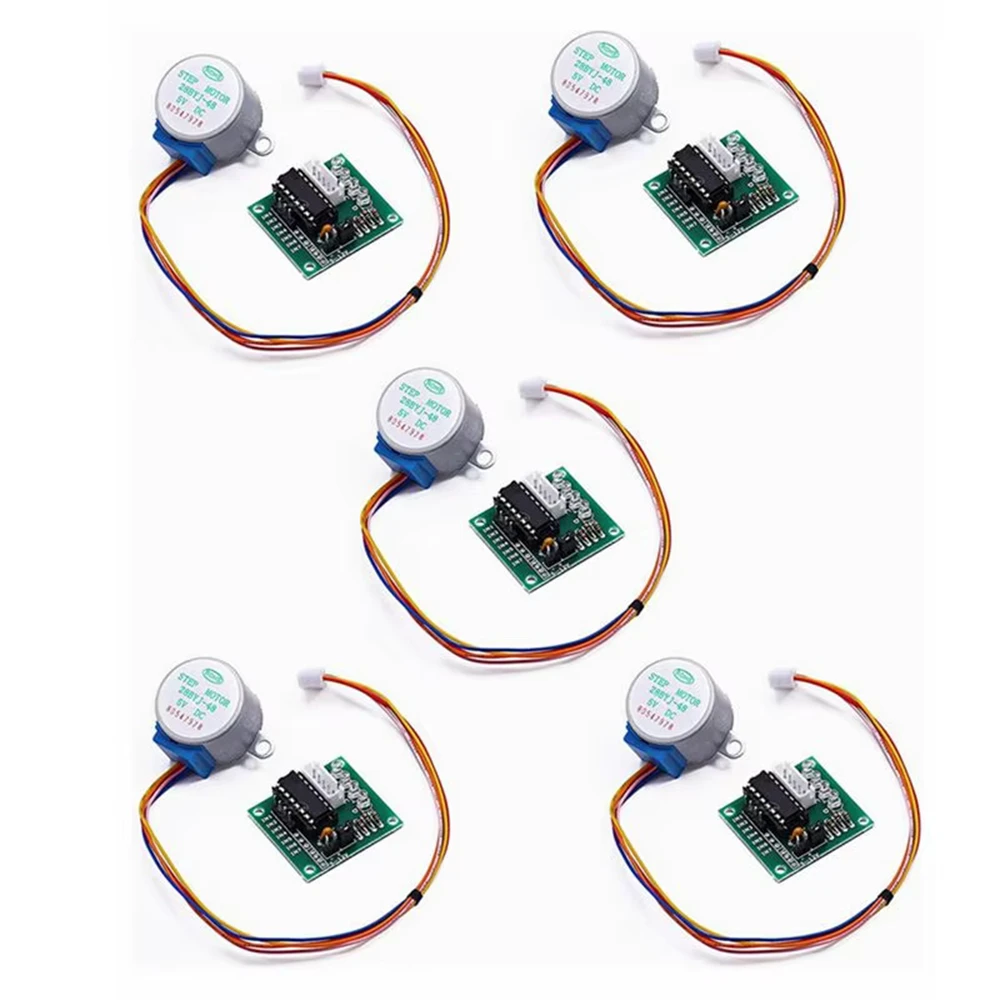

Package Content:

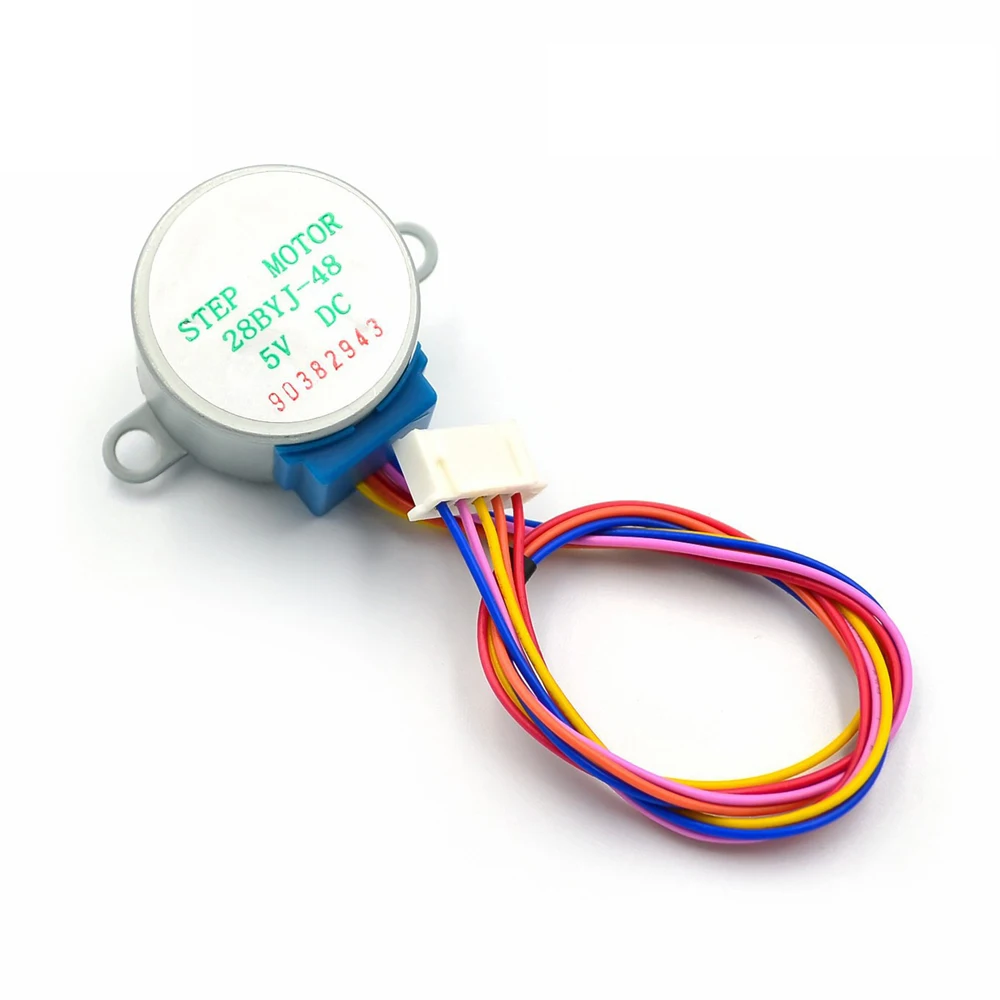

5*28BYJ-48 stepper motor

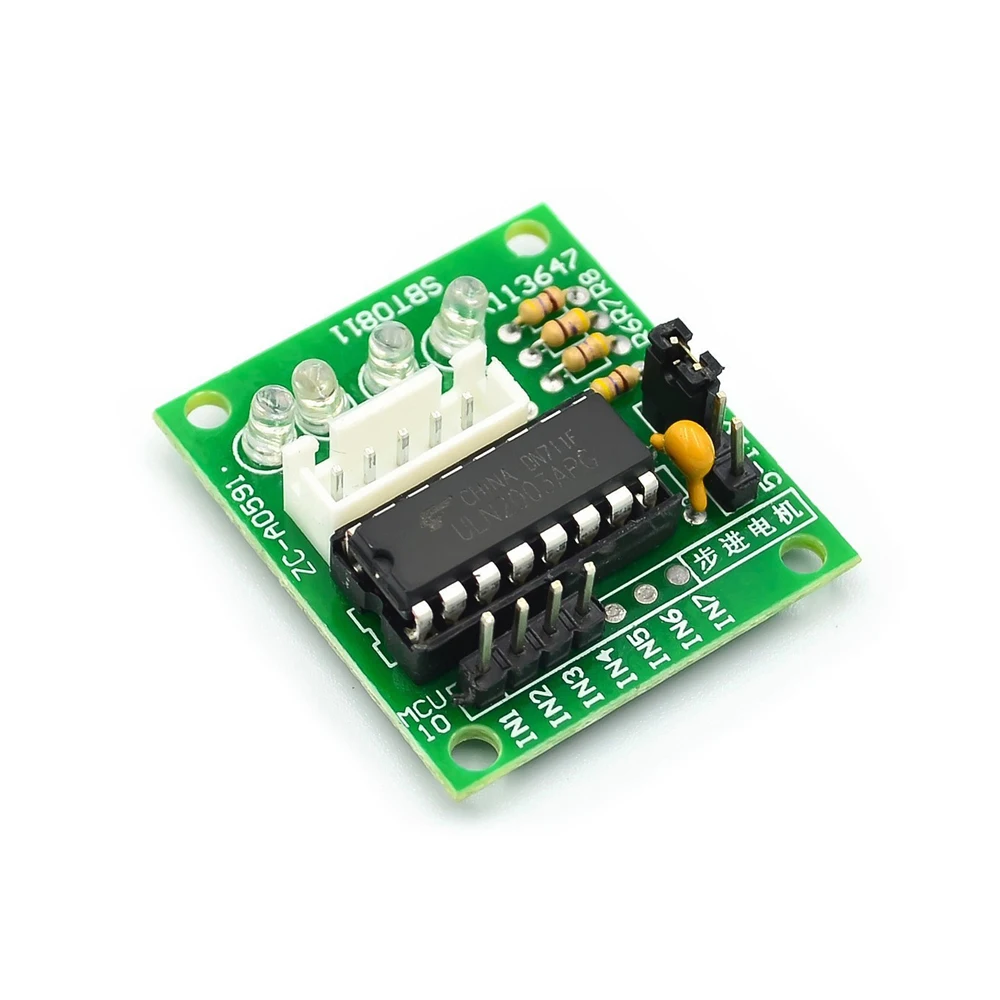

5*ULN2003 motor driver board
Note:
The
real color of the item may be slightly different from the pictures
shown on website caused by many factors such as brightness of your
monitor and light brightness.
Use Cases
Wheel locomotion, robotic arm joint actuation, CNC axis motion, automated lock mechanisms, and precision mechanical drive assemblies.
Compatibility Notes
Works with standard H-bridge motor drivers, servo controllers, and electronic speed controllers (ESCs). Requires a dedicated motor power supply.
Frequently Asked Questions
Yes, it has a built-in reduction gearbox designed to maximize output torque while regulating speed.
It is compatible with standard motor driver modules such as the L298N, TB6612FNG, or generic stepper drivers depending on the exact coil wiring.
No, motors draw significant current and should always be powered via an external battery pack or power supply, with only control signals coming from the microcontroller.
