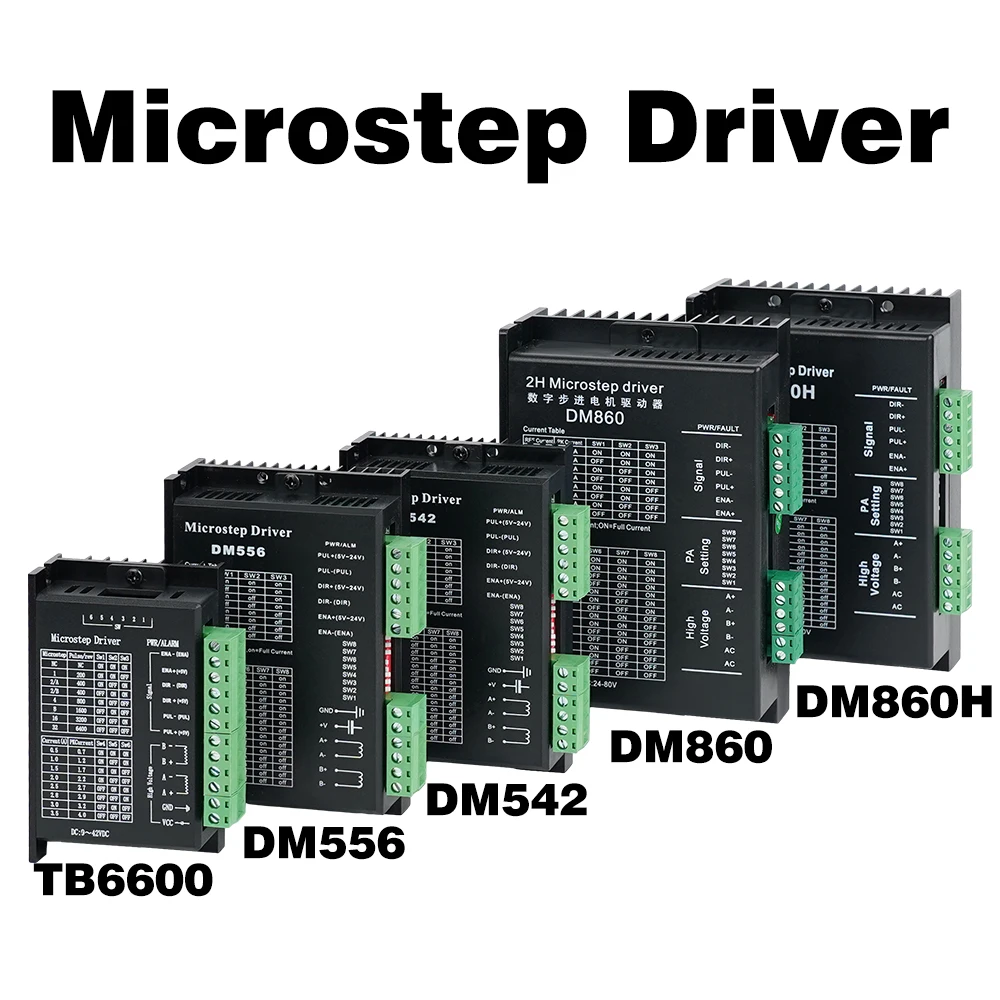

Microstep Driver TB6600 DM542 DM556 DM860 DM860H Driver Controller Microstep Motor Brushless Shell For 42/57/86 Nema17 Nema23
Microstep Driver TB6600 DM542 DM556 DM860 DM860H Driver Cintroller Microstep Motor Brushless Shell For 42/57/86 Nema17 Nema23TB6600Current：0.5-3.5AMicrostep：1-32Cooling method：Free cooling or forced air coolingOccasion：Can not be placed next to other heatingequipment, to avoid dust, oil, corrosive gashigh humidity and strong eathquake placesprohibit, prohibit flammable gas andconductive dustHumidity：40-90%RHShock：10-55Hz/0.15mmStoragtemperature：-20-65℃DM542Input current：24-50V DC power supply ,
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Microstep Driver TB6600 DM542 DM556 DM860 DM860H Driver Cintroller Microstep Motor Brushless Shell For 42/57/86 Nema17 Nema23

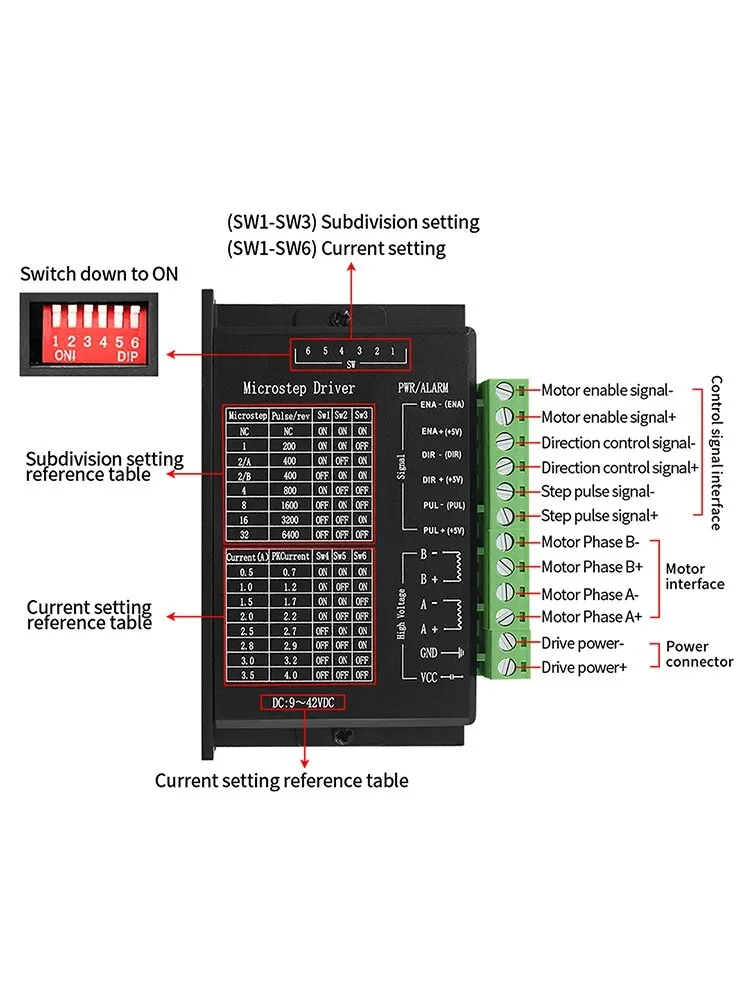

TB6600
Current：0.5-3.5A
Microstep：1-32
Cooling method：Free cooling or forced air cooling
Occasion：Can not be placed next to other heatingequipment, to avoid dust, oil, corrosive gas
high humidity and strong eathquake placesprohibit, prohibit flammable gas andconductive dust
Humidity：40-90%RH
Shock：10-55Hz/0.15mm
Storagtemperature：-20-65℃

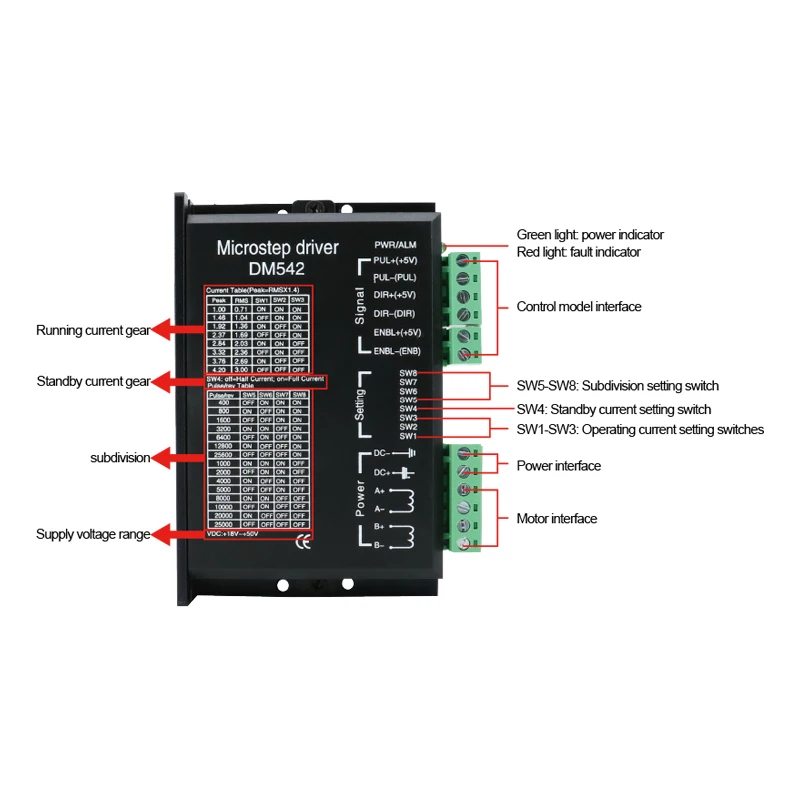

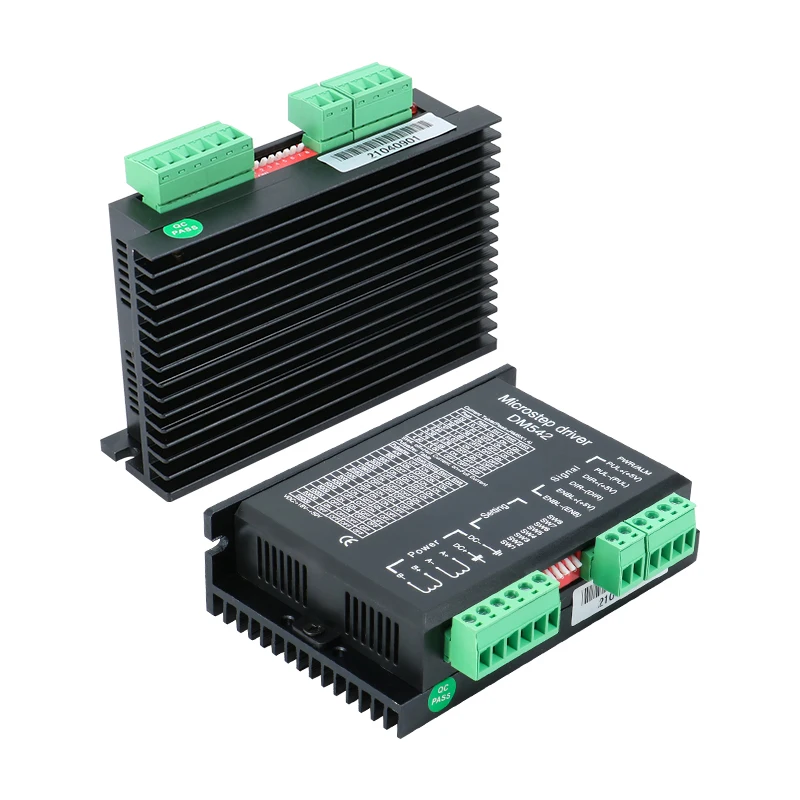

DM542
Input current：24-50V DC power supply , capacity not less than200VA . Typical value : DC36V
Output current：1.0A-4.2A . 8 gears adjustable ,Resolving power 0.5A
Drive mode：Double constant current PWM drive output
Insulation resistance：Normal pressure and temperature > 500MΩ
Insulation strength：Normal pressure and temperature 500V / min
Cooling method：Natural cooling
Use occasio： Avoid dust , oil mist and corrosive gases
Use temperature：0°C ~ +50°C
Ambient humidity：< 80%RH , No condensation . no frost
Shake: Maximum not more than 5.7m/s

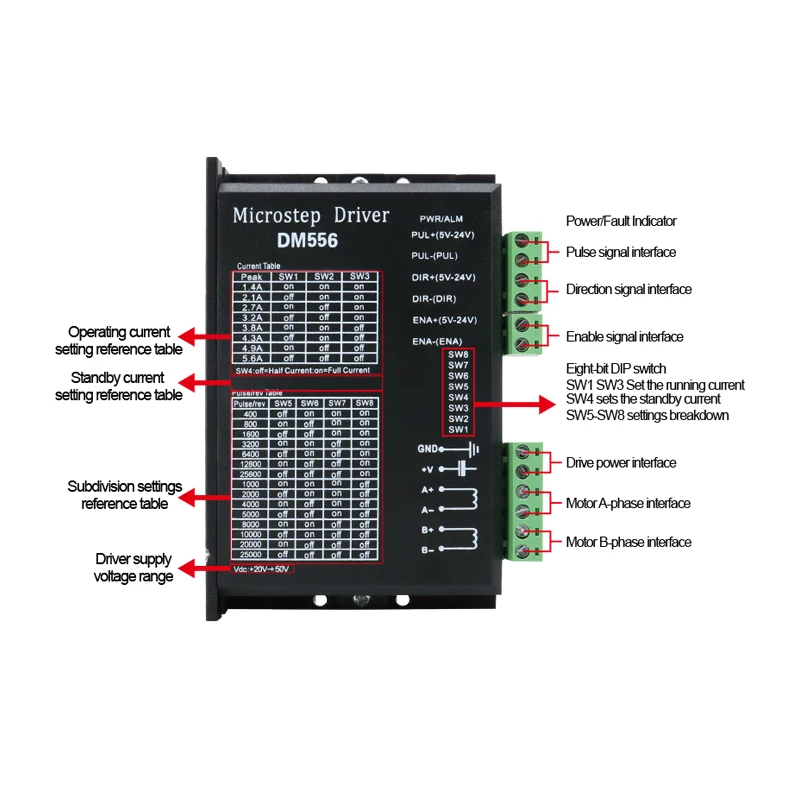

DM556
Input current：18-48V DC power supply , capacity not less than200VA . Typical value : DC36V
Output current：1.0A-5.6A . 8 gears adjustable ,Resolving power 0.5A
Drive mode：Double constant current PWM drive output
Insulation resistance：Normal pressure and temperature > 500MΩ
Insulation strength：Normal pressure and temperature 500V / min
Cooling method：Natural cooling
Use occasio： Avoid dust , oil mist and corrosive gases
Use temperature：0°C ~ +50°C
Ambient humidity：< 80%RH , No condensation . no frost
Shake: Maximum not more than 5.7m/s
DM860
Input current：24-80V DC power supply , capacity not less than200VA . Typical value : DC36V
Output current：2.4A-7.2A . 8 gears adjustable ,Resolving power 0.5A
Drive mode：Double constant current PWM drive output
Insulation resistance：Normal pressure and temperature > 500MΩ
Insulation strength：Normal pressure and temperature 500V / min
Cooling method：Natural cooling
Use occasio： Avoid dust , oil mist and corrosive gases
Use temperature：0°C ~ +50°C
Ambient humidity：< 80%RH , No condensation . no frost
Shake: Maximum not more than 5.7m/s

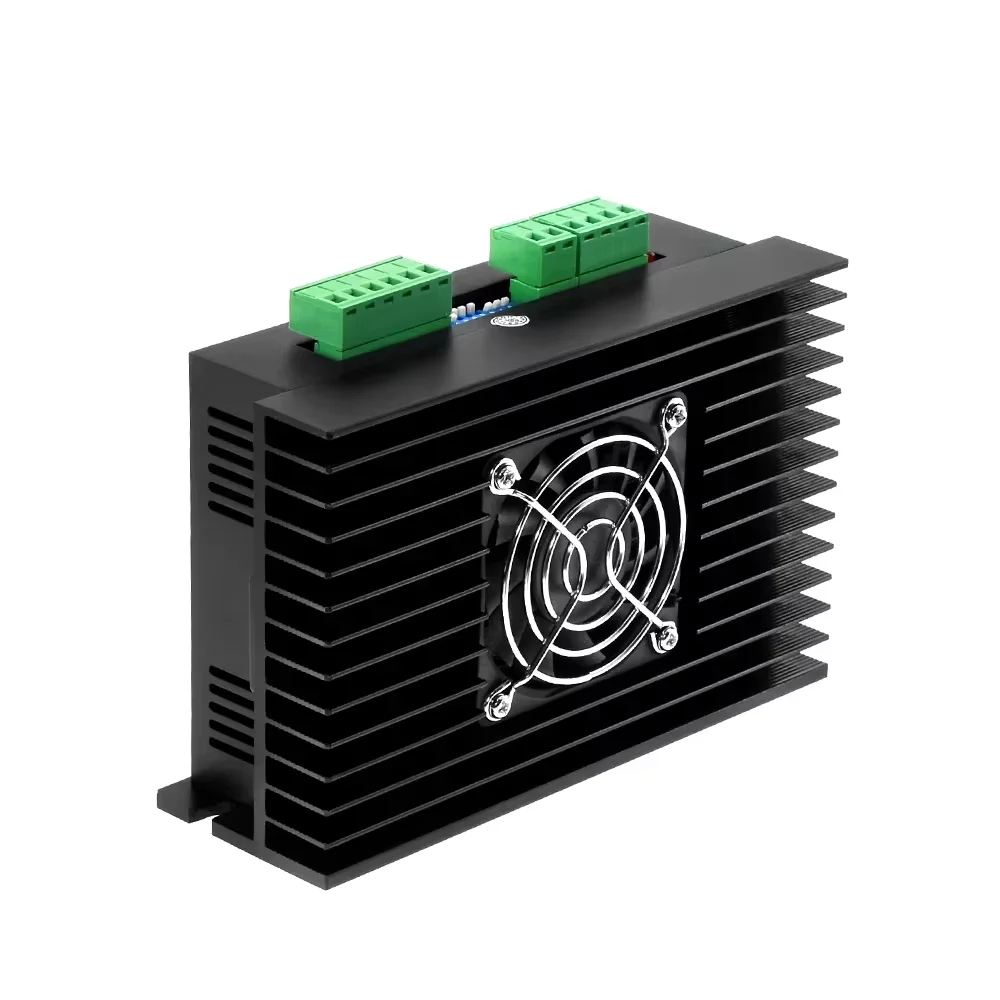

DM860H With Fan
