5 Type 9CM 15CM 20CM 25CM 30CM PCB Ruler Multi-functional Measuring Tool Resistor Capacitor Chip IC SMD Diode Transistor

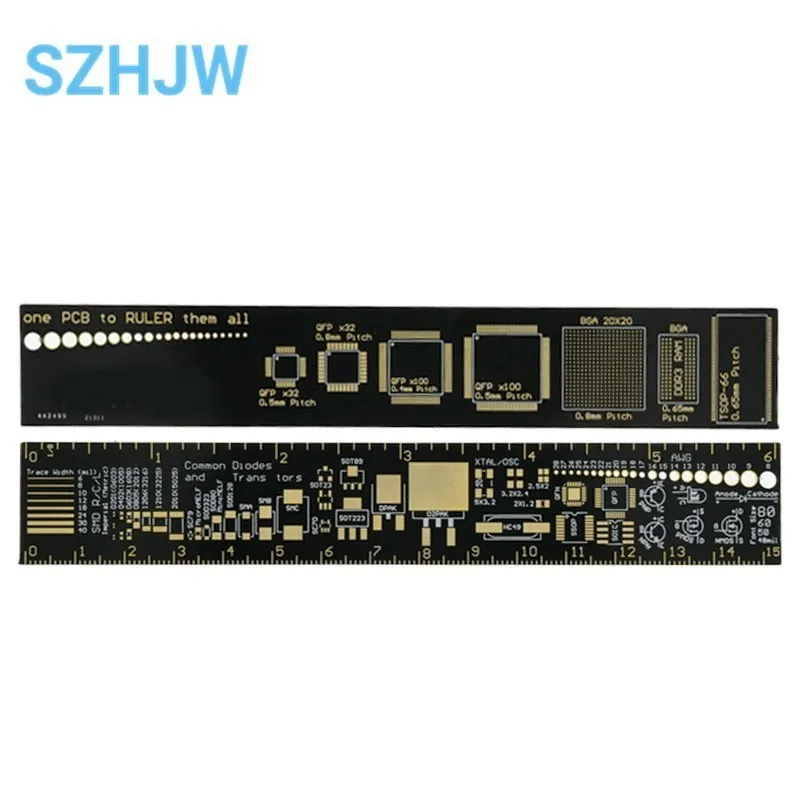

15CM PCB RulerFeature:Material: PCBFont size guide, trace-width diagram, and a set of AWG-sized drillsCentimeter side: 0.1cm marks20CM PCB RulerDescription:This versatile PCB ruler,It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.In addition to measuring the basic functions of millimeter and inch sizes,It als
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-976215CM PCB Ruler
Feature:
Material: PCB
Font size guide, trace-width diagram, and a set of AWG-sized drills
Centimeter side: 0.1cm marks

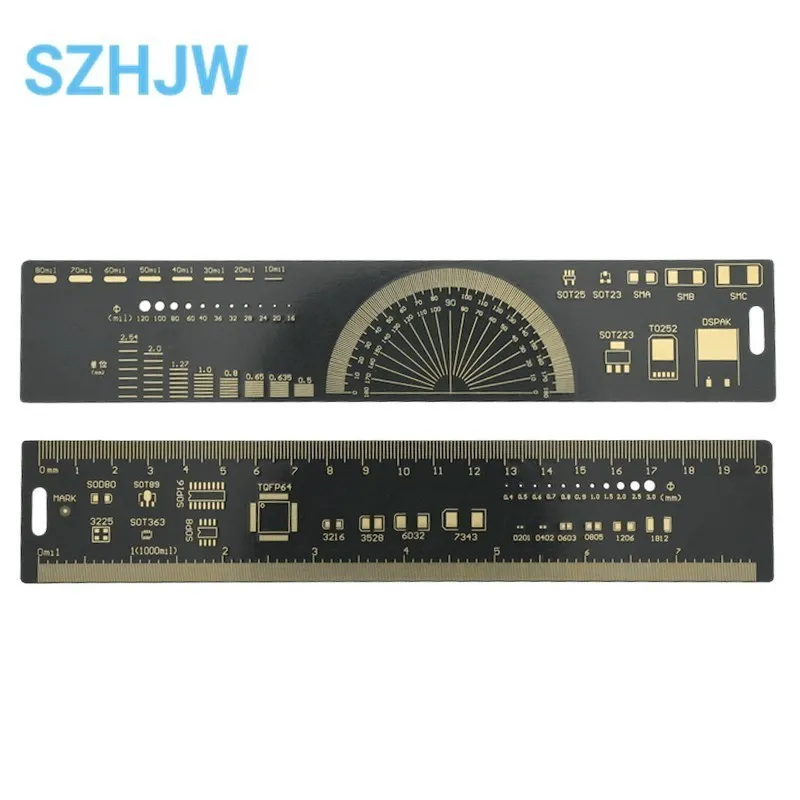

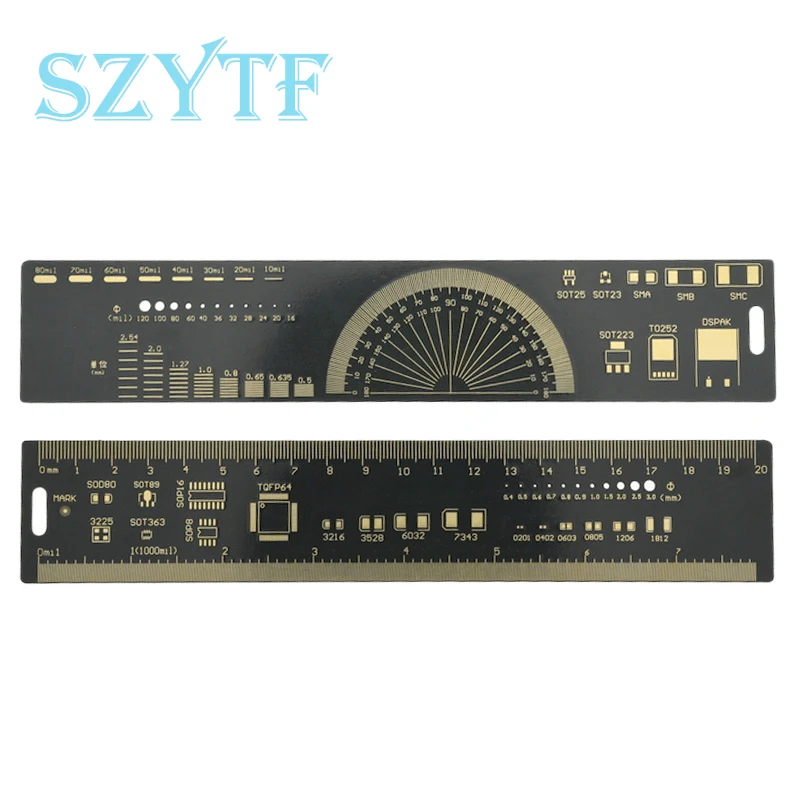

20CM PCB Ruler
Description:
This versatile PCB ruler,
It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
In addition to measuring the basic functions of millimeter and inch sizes,
It also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables,
Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance
Positive Specification:
The measurement length: 20 cm
Measuring length : 7.8 inches
Commonly used packages: SOT89, SOT8, SOP16, SOT363, 3225, SOD80, MARK, TQFP64.
Commonly used resistance and capacitance patch package: 0201,0402,0603,0805,1206,1812,3216,3528,6032,7343.
Common bore diameter reference dimensions (unit: mm)
Slot for hanging straightedge
Back Specification:
Commonly used line width reference (unit: mil)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.635mm, 0.65mm, 0.8mm, 1.0mm, 1.27mm, 2.0mm, 2.54mm;
Commonly used MOS, diode, transistor package: SOT23, SOT223, SOT25, TO252, D2PAK, SMA, SMB, SMC.

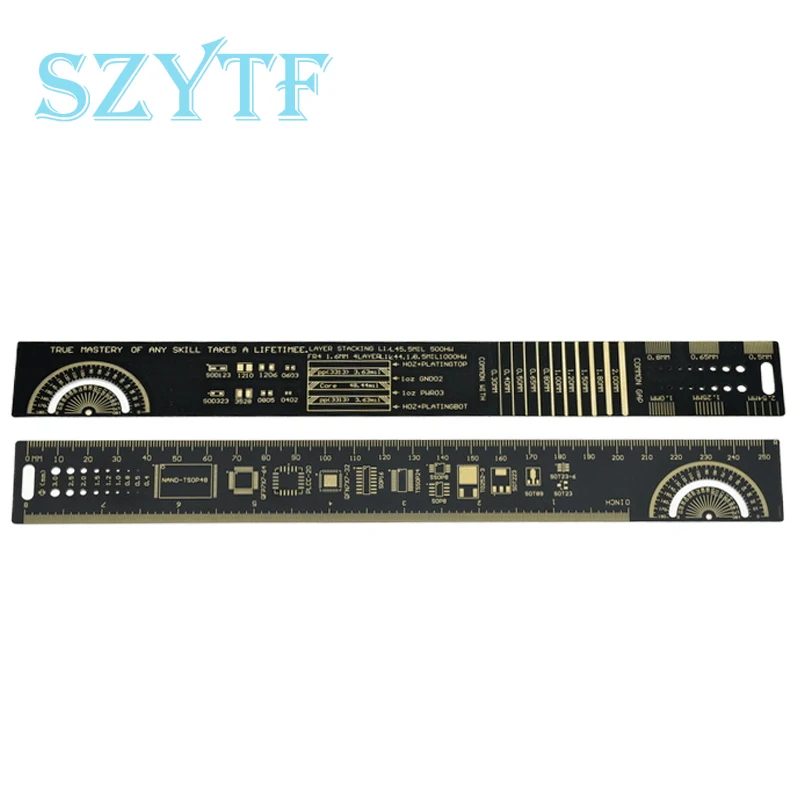

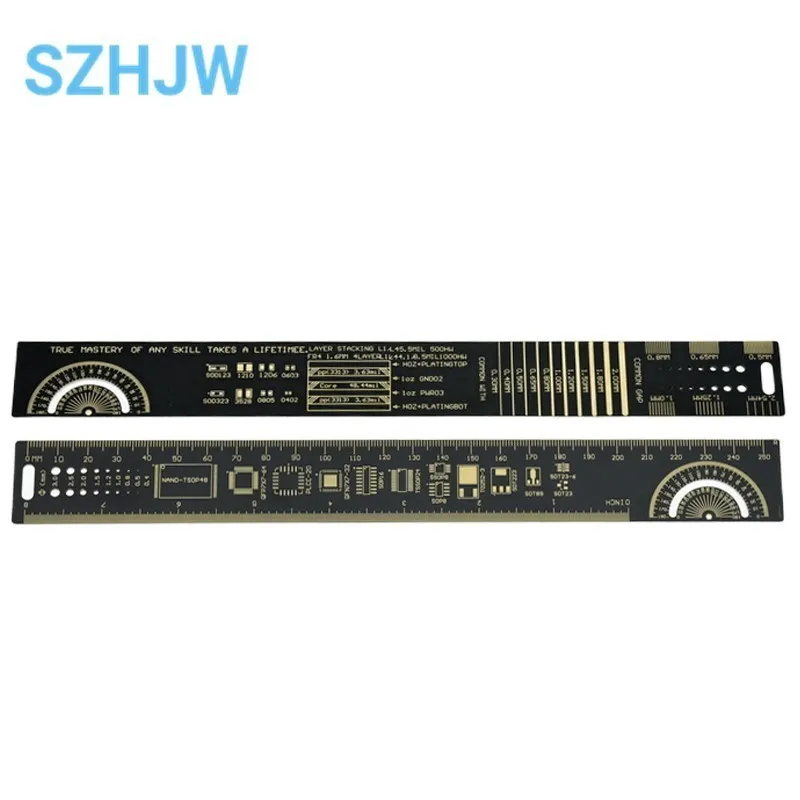

25CM PCB Ruler
Description:
This versatile PCB ruler, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, and more.
Electronic enthusiasts in the design process in urgent need of a measurement tool can be set all the necessary functions.
In addition to measuring the basic functions of millimeter and inch sizes, it also integrates relevant information for PCB design such as angle gauges, devices, IC pin spacing tables, Resistor and capacitor chip package, the commonly used diameter reference drill, line width size reference
We printed this information on FR-4 gold-plated PCBs.
R-4 gold-plated PCB, high-end atmosphere, high hardness, wear resistance
Positive Specification:
The measurement length: 25cm
Measuring length: 10 inches
Commonly used IC package: 1.NAND_FLASH_TSOP48 2.QFP7X7-64 3.PLCC-20 4.SOP16 5.TSSOP24 6.SSOP8 7.SOP8
Commonly used CHIP component: 1.TO252-3 2.SOT223 3.SOT89-3 4.SOT23-6 5.SOT23-3 6.SOD123 7.SOD323 8.1210 9.3528 10.1206 11.0805 12. 0603 13. 0402 14.TO92
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
Slot for hanging straightedge
Back Specification:
Commonly used line width reference (unit: mm)
Angle measurement: 180 degrees
Device, IC pin spacing table: 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.25mm, 2.54mm;
Common bore diameter reference dimensions (unit: mm): 3.0 2.5 2.0 1.5 1.0 0.8 0.5 0.4
9CM PCB Ruler

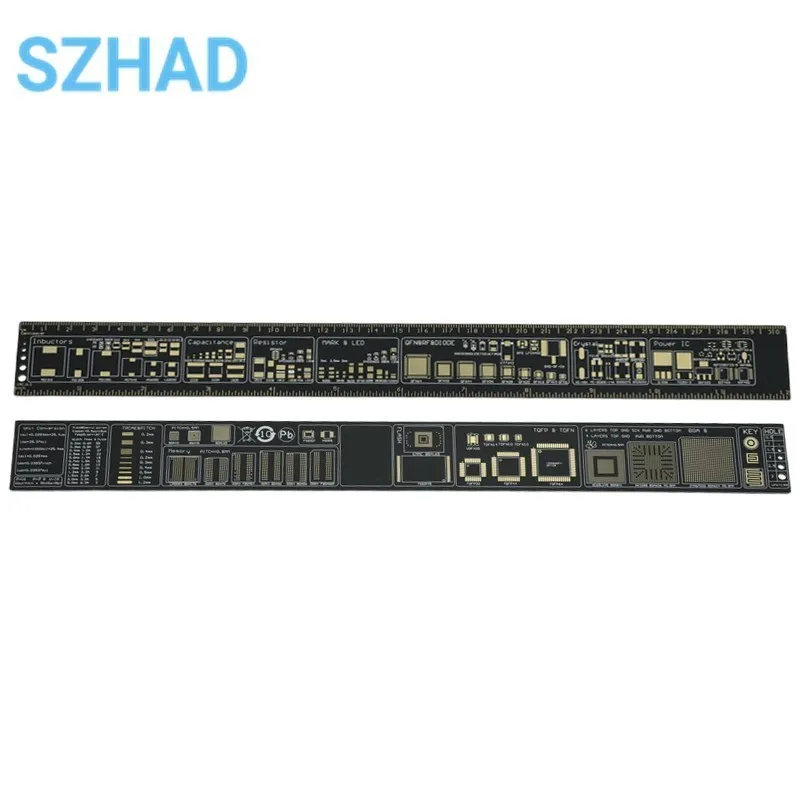

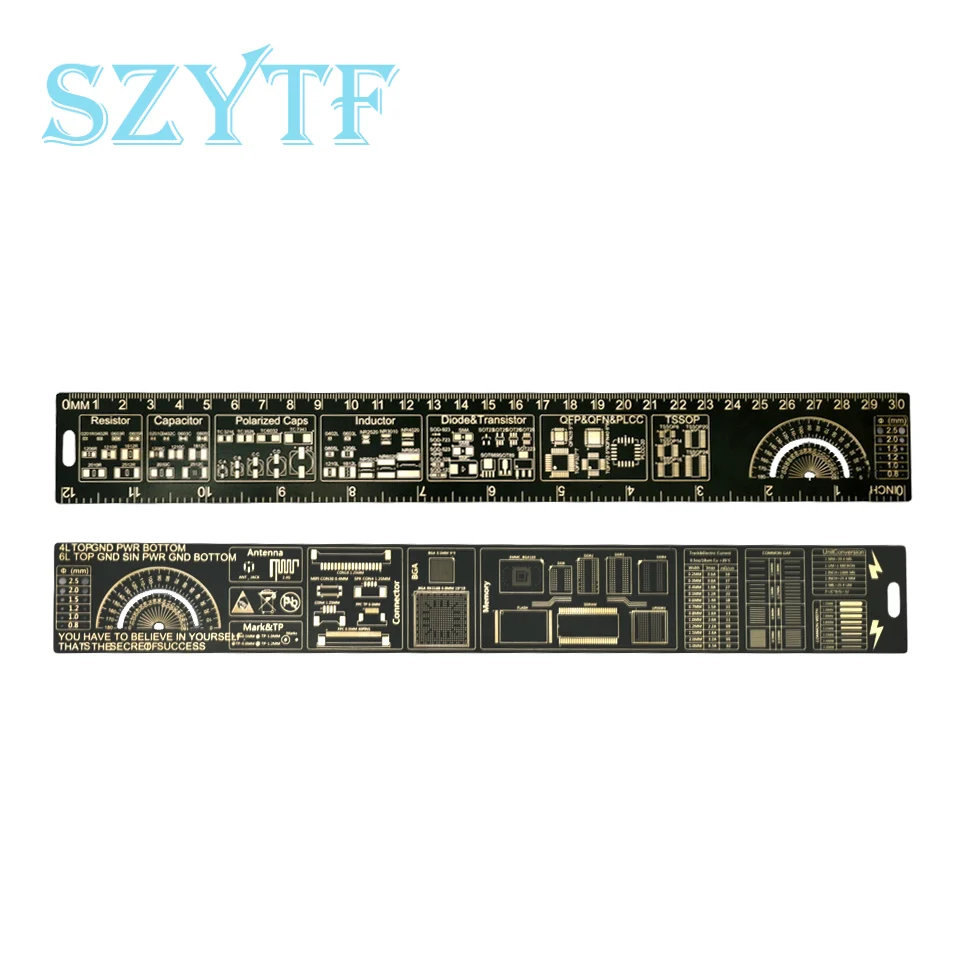

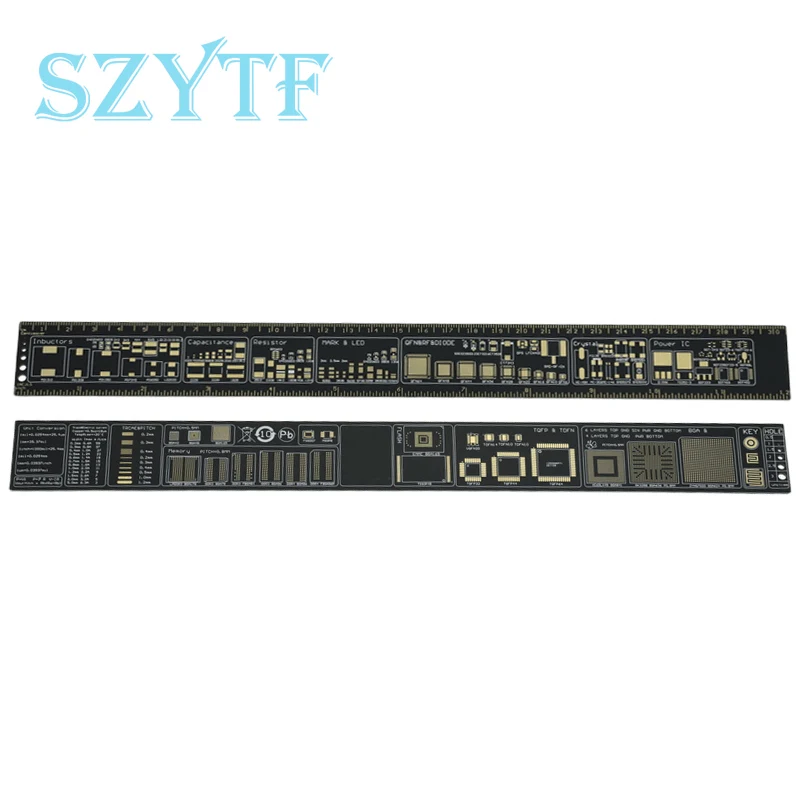

30CM PCB Ruler
