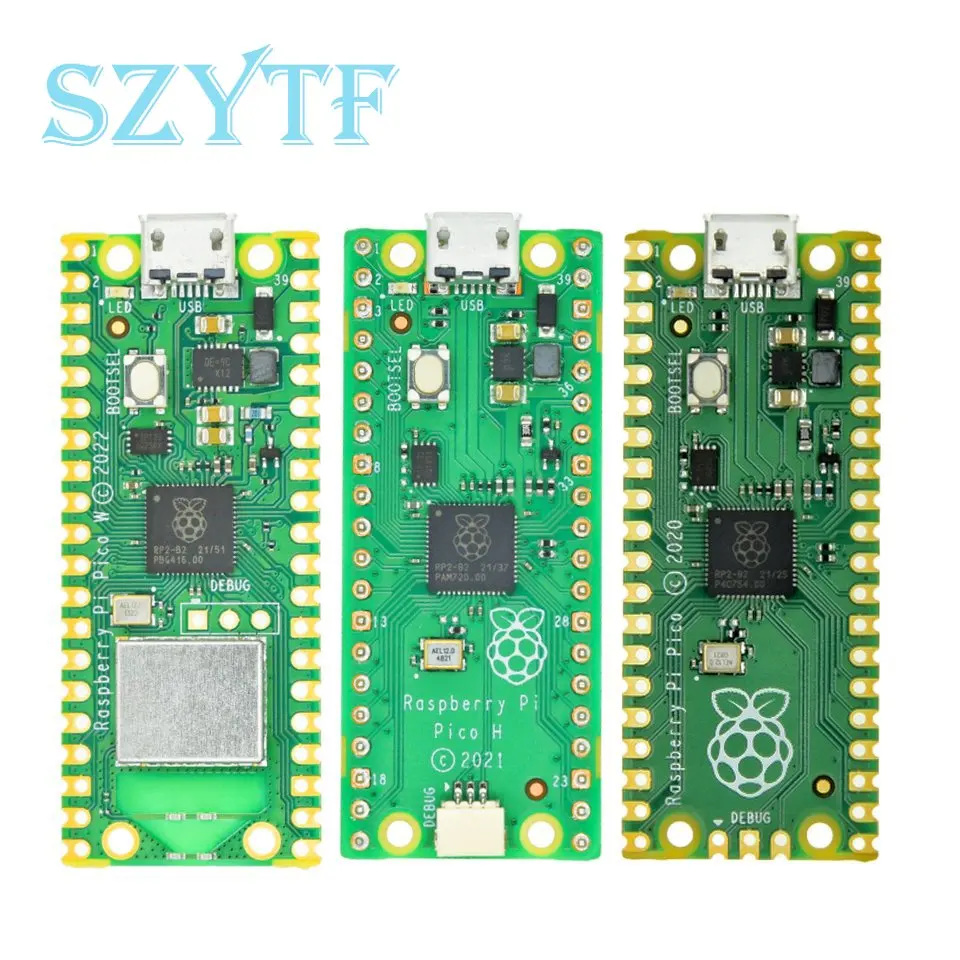

Raspberry Pi Pico Or Pico W microcontroller Development Board Dual Core Wireless Wifi Programming

Introducition:

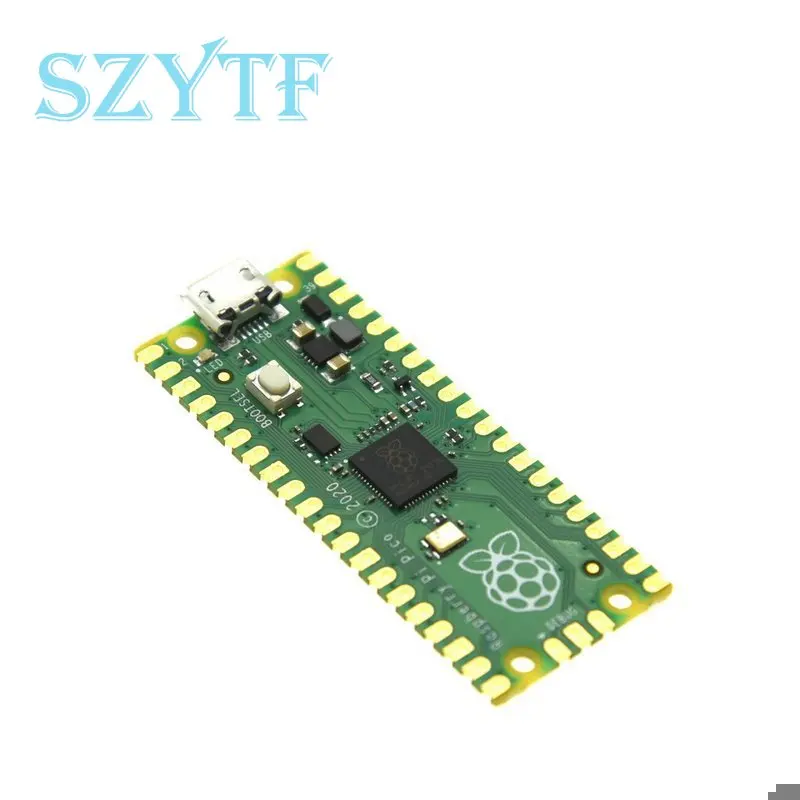

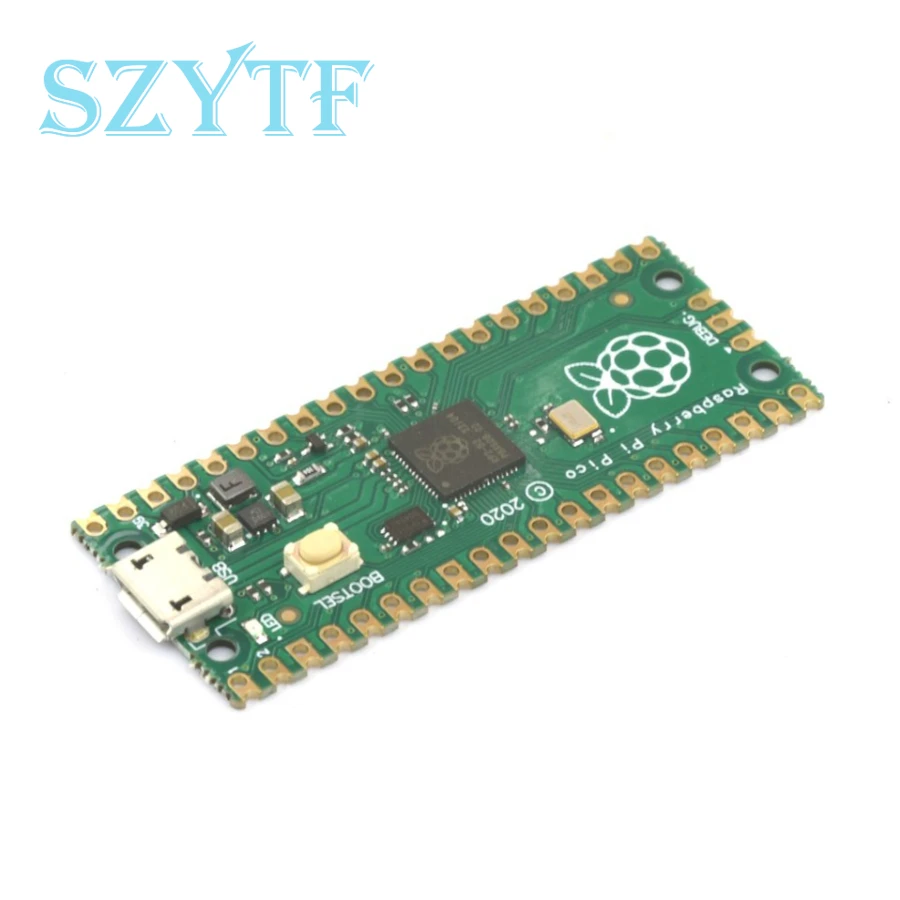

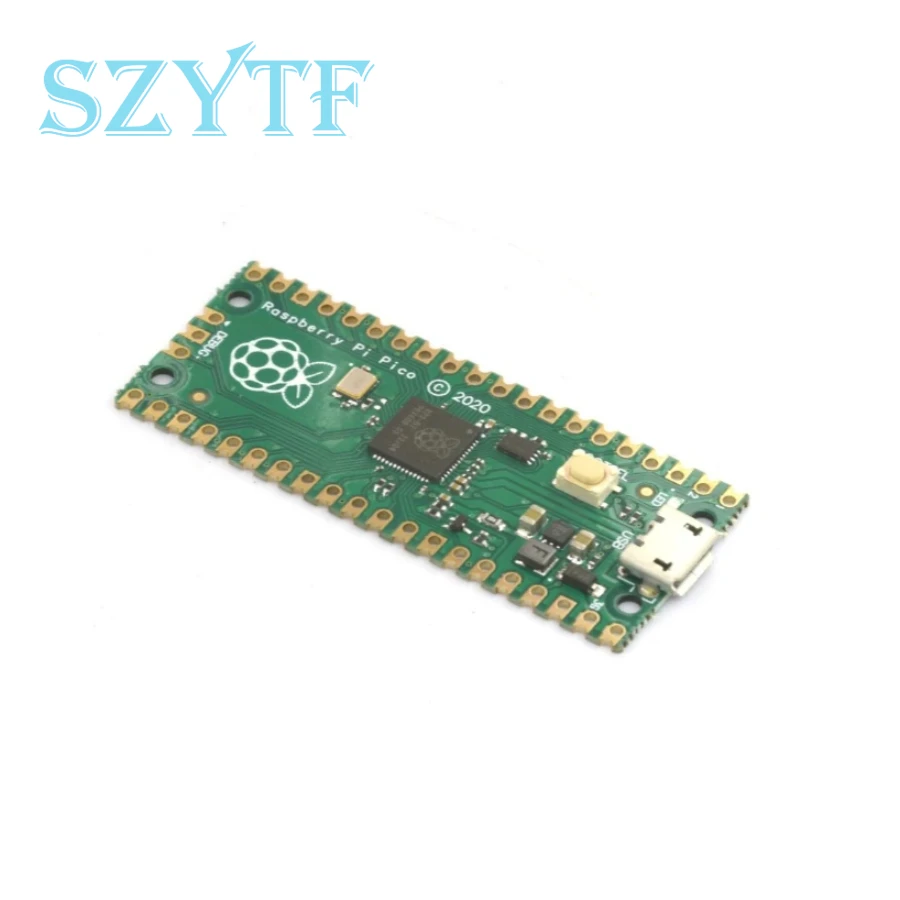

The Raspberry Pi Pico is a microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. It has been designed to be a low-cost, high-performance microcontroller board with flexible digital interfaces. The Raspberry Pi Pico features two ARM Cortex-M0+ cores run up to 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

In addition to powerful hardware resources, Pico has rich and complete software support and community resources. It comes with a complete Rasberry Pi official C/C++ SDK, Micropython SDK. Just click "https://pico.raspberrypi.org/getting-started" to get started with Raspberry Pi Pico.

Pico has been designed to use either soldered 0.1" pin-headers (it is one 0.1" pitch wider than a standard 40-pin DIP package) or can be used as a surface-mountable 'module', as the user IO pins are also castellated. There are SMT pads underneath the USB connector and BOOTSEL button, which allow these signals to be accessed if used as a reflow soldered SMT module.

Specification:

• RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

• 264KB of SRAM, and 2MB of on-board Flash memory

• Castellated module allows soldering direct to carrier boards

• USB 1.1 with device and host support

• Low-power sleep and dormant modes

• Drag-and-drop programming using mass storage over USB

• 26 × multi-function GPIO pins

• 2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

• Accurate clock and timer on-chip

• Temperature sensor

• Accelerated floating-point libraries on-chip

• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Product characteristics：

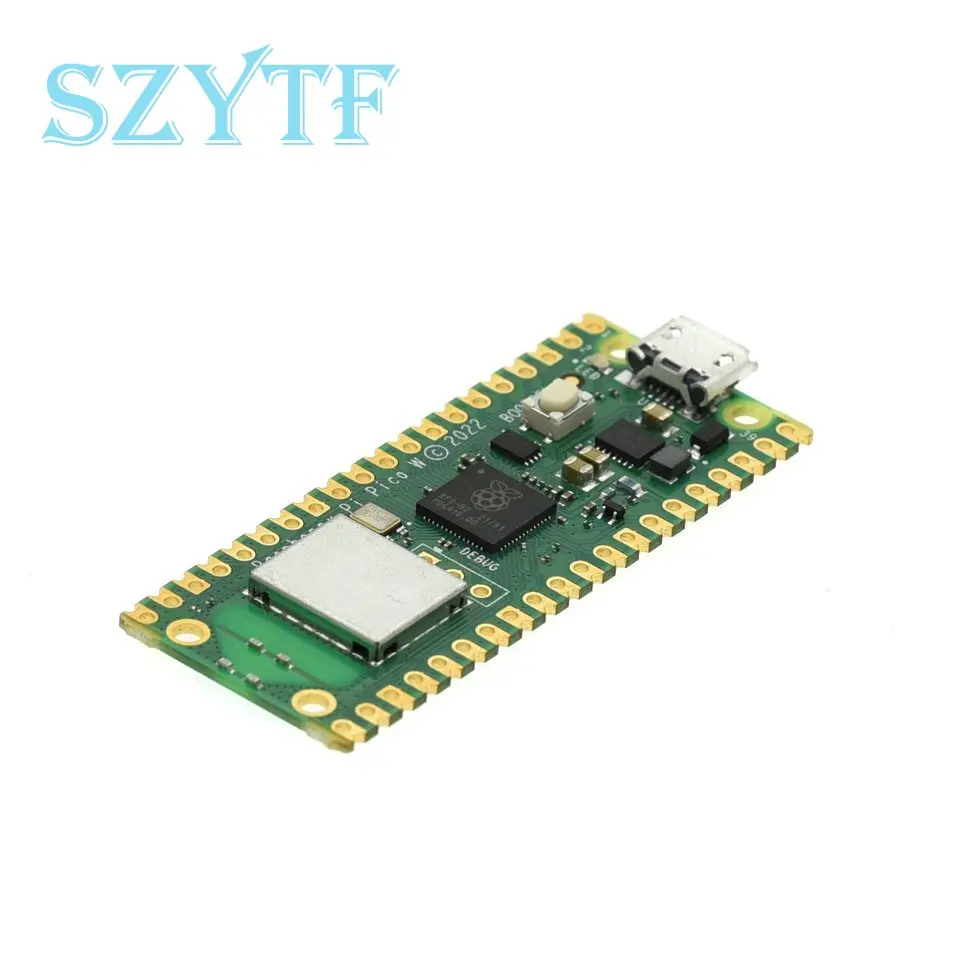

Raspberry Pi Pico W is on the basis of Raspberry Pi Pico_, add wireless communication function module, wireless module hardware uses Infineon CYW43439 wireless chip, support Wi-Fi 4 wireless network. Can make wireless network control and transmission becomes very convenient.

The main functional features are:

The RP2040 microcontroller chip independently designed by Raspberry Pi is adopted

Powered by a dual-core ARM Cortex MO+ processor, it runs at frequencies up to 133MHz flexible clock · Uses Infineon's CYW43439 wireless chip and supports Wi-Fi 4 wireless networks

Built-in 264KB of SRAM and 2MB of on-chip Flash

Stamp hole design, can be directly welded into the user independent design of the base plate. USB1.1 Host and Device support

Supports low power sleep and hibernation modes

Can be identified by USB for mass storage drag-and-drop download program. Up to 26 multifunctional GPIO pins

2 SPIs, 2 12Cs, 2 UART,3 12-bit ADCs, 16 controlled PWM channels

Accurate on-chip clock and timer · temperature sensor

Accelerated floating point library on chip

Eight programmable IO(PIO) state machines for custom peripheral support
