Domraem ESP32 USB-C Wled Digital LED controller RGB IC DIY APP 16A fuse Works with HA/MQTT/Alex WS2811/12/12B/14/05 Sk6812 Strip

DOMRAEM 2025 New Edition WLED Controller DOM-WLE-A (ESP32 ) 🌟

Using the open-source WLED firmware and companion app, you can create DIY lighting effects with 16 million+ color control, compatible with iOS/Android devices. ✨

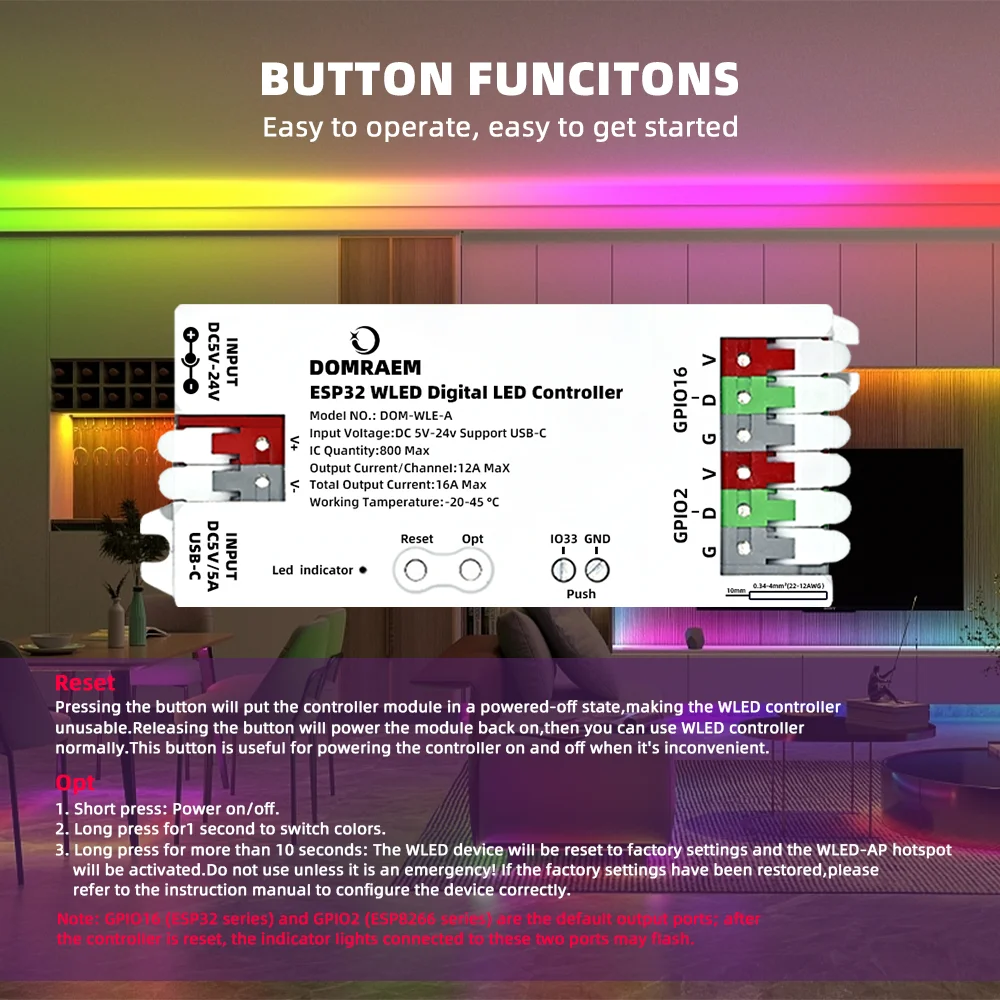

WLED Controller Operation Guide

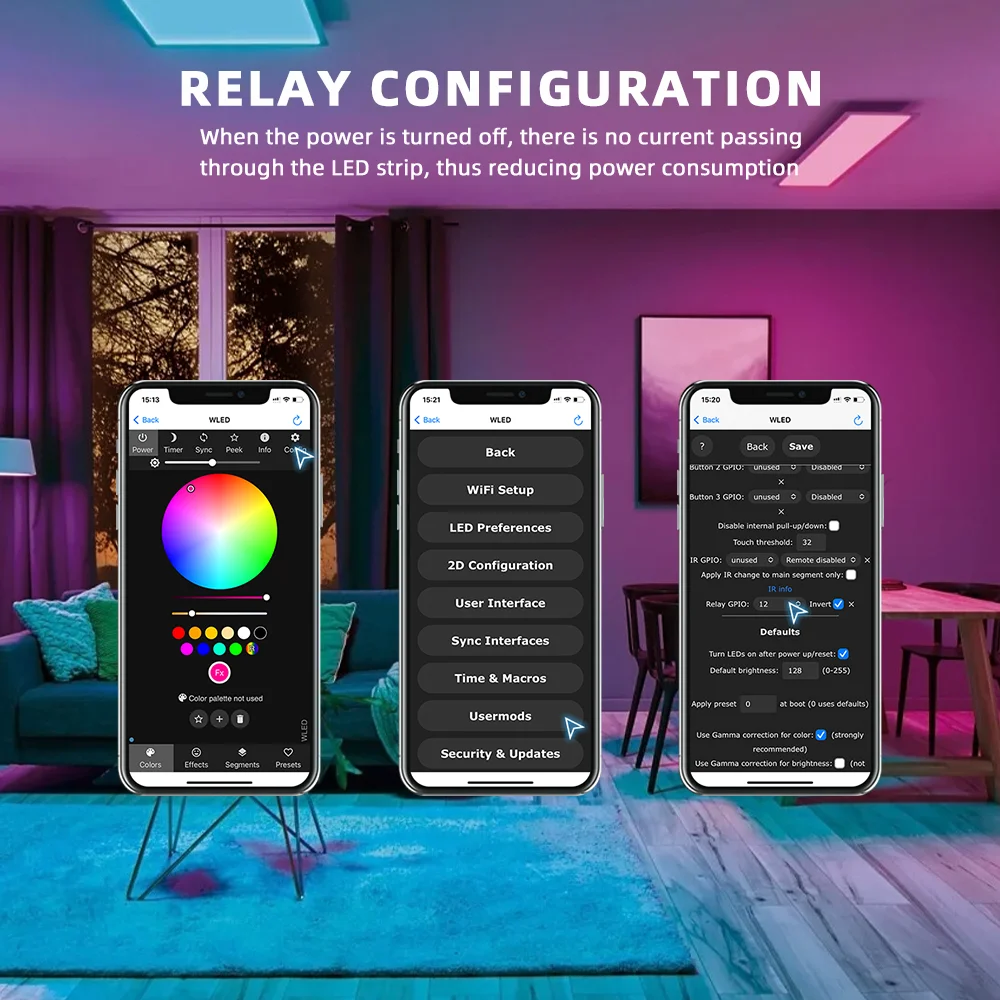

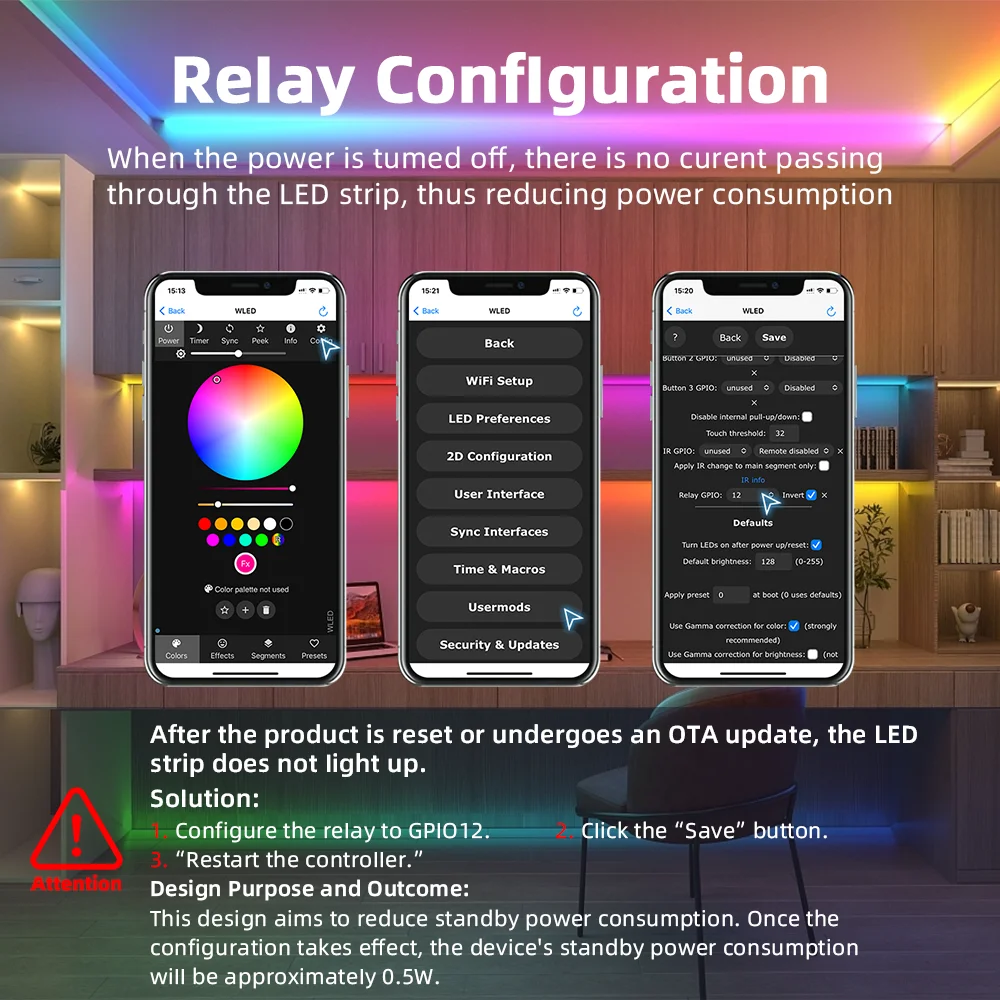

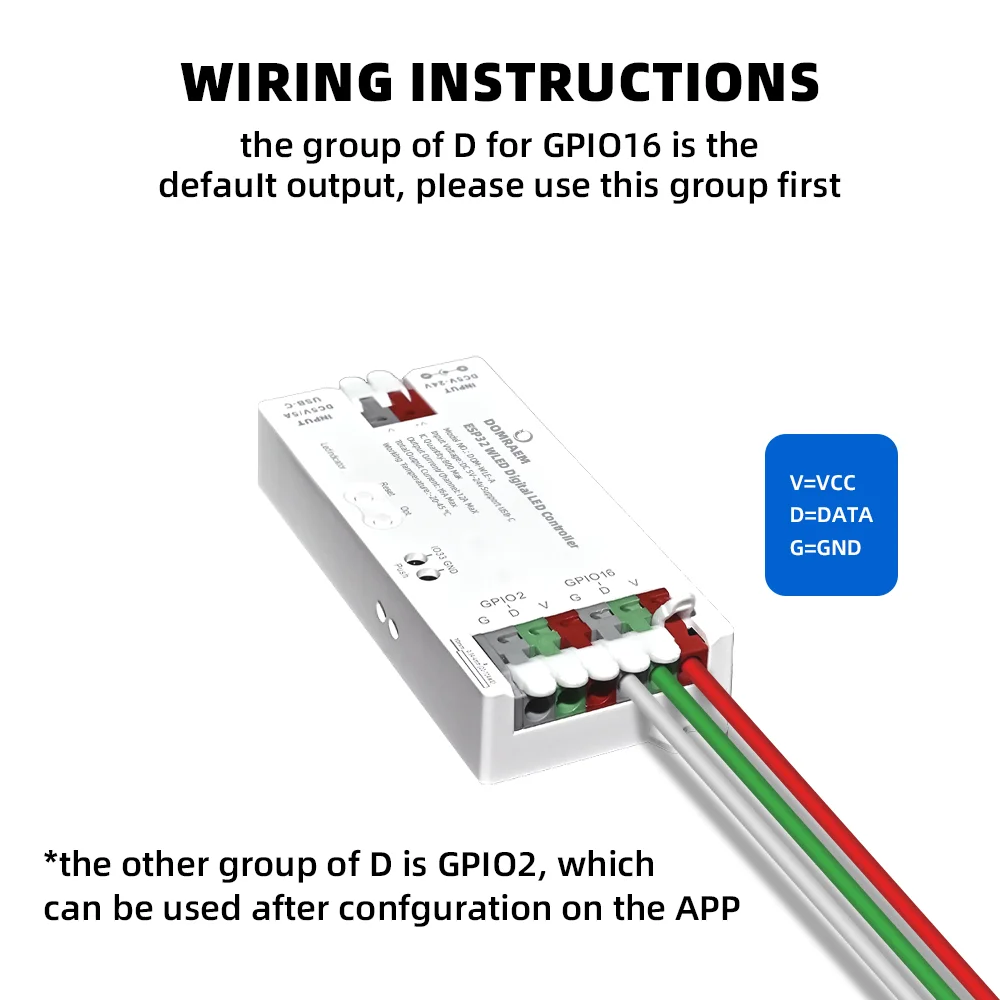

⚠️ After reset: Must complete GPIO12 configuration, then execute Reset or power cycle (see manual for config details)
💡 If LEDs stay off: Check GPIO12 config → If abnormal: reconfigure & reboot; If normal: inspect power supply circuit

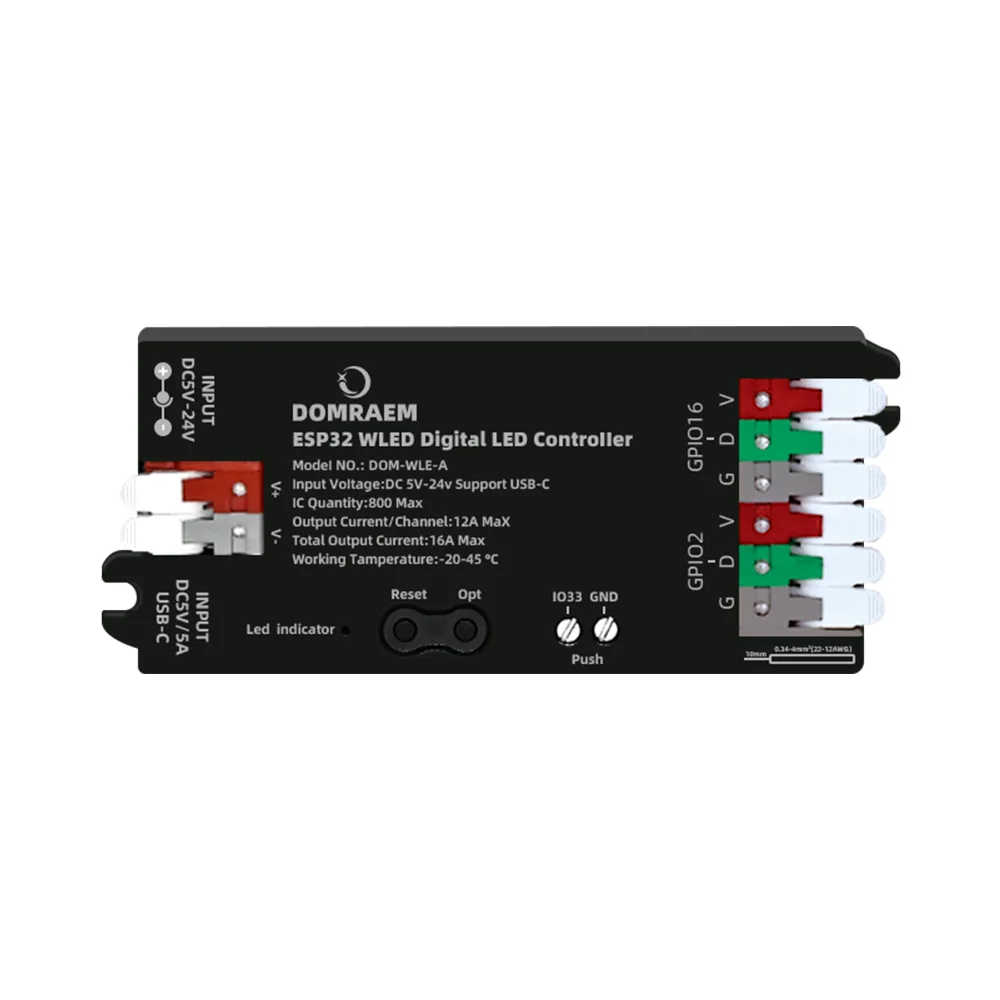

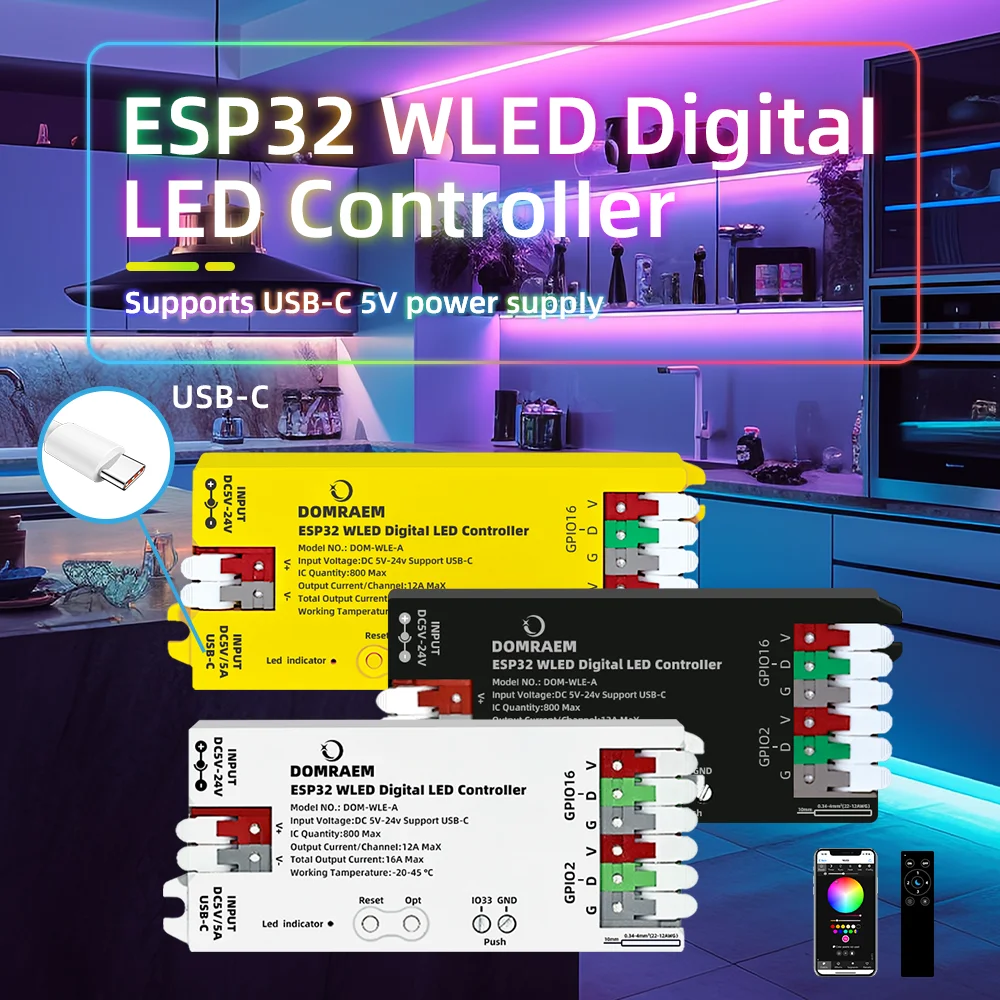

Note: Available in 3 colors -Yellow💛 ,White ⚪, Black⚫-Choose your favorite! 🎨

Features

⚡ Wide Voltage Input & High Power Output (Multi-Circuit Protection)
• Supports 5-24V DC wide-range input with 12A per channel/16A total output capacity
• 16A fuse design for reliable safety protection

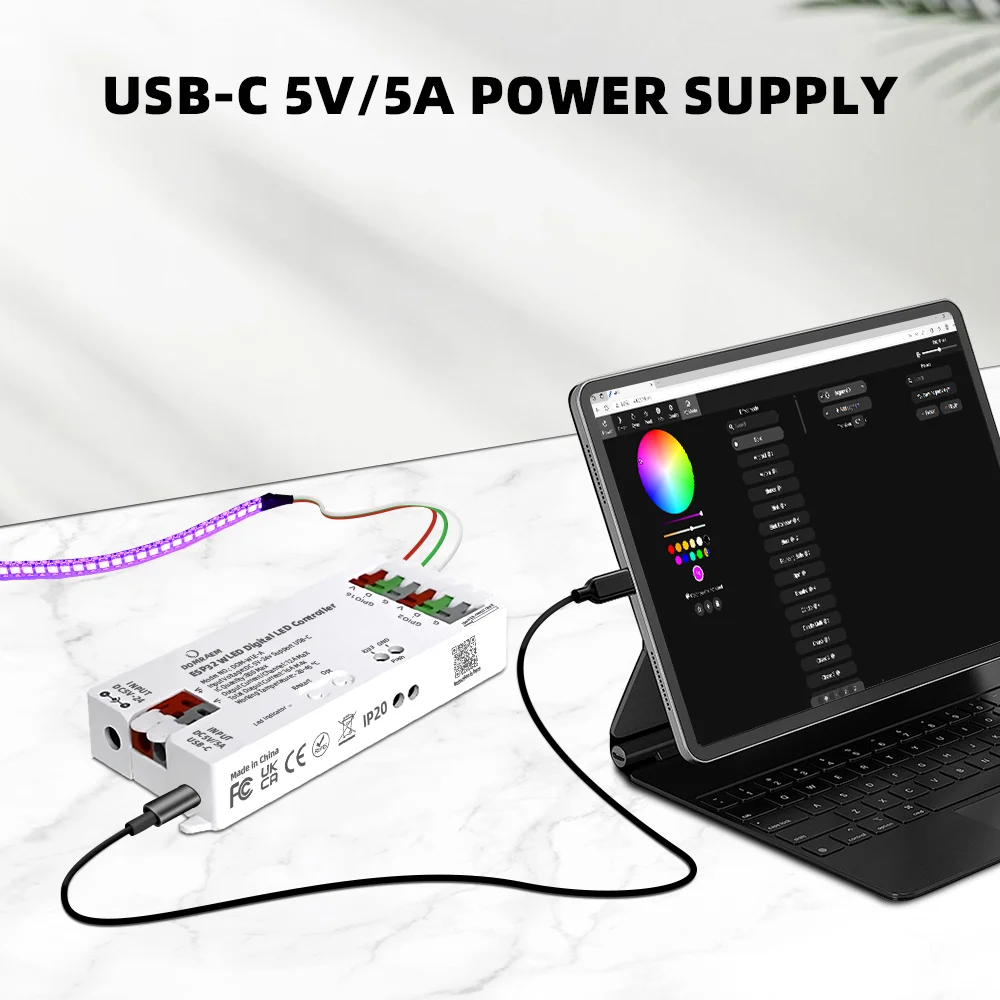

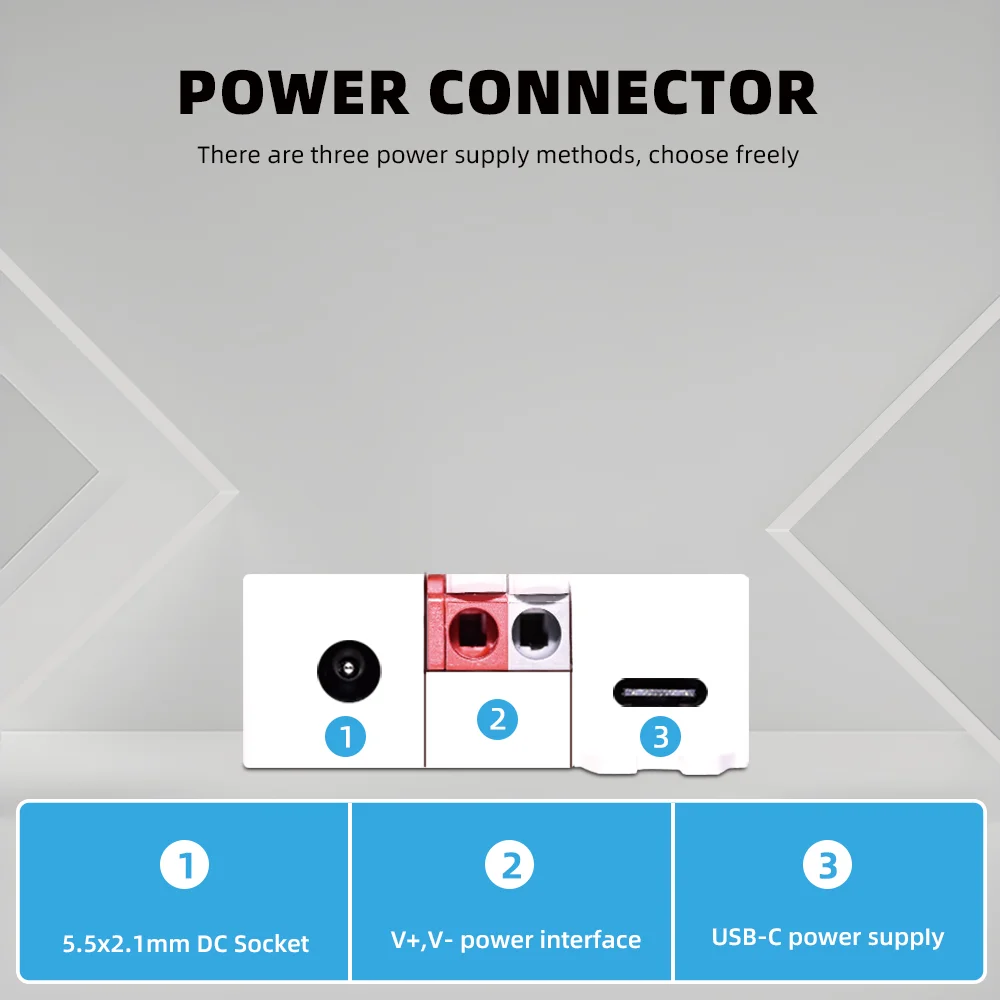

• Includes USB-C 5V/5A direct power supply interface

🌐 Smart WiFi Connectivity & Open-Source Control
• Developed based on open-source WLED project with continuous upgrades
• Utilizes ESP32 WLED wireless control technology

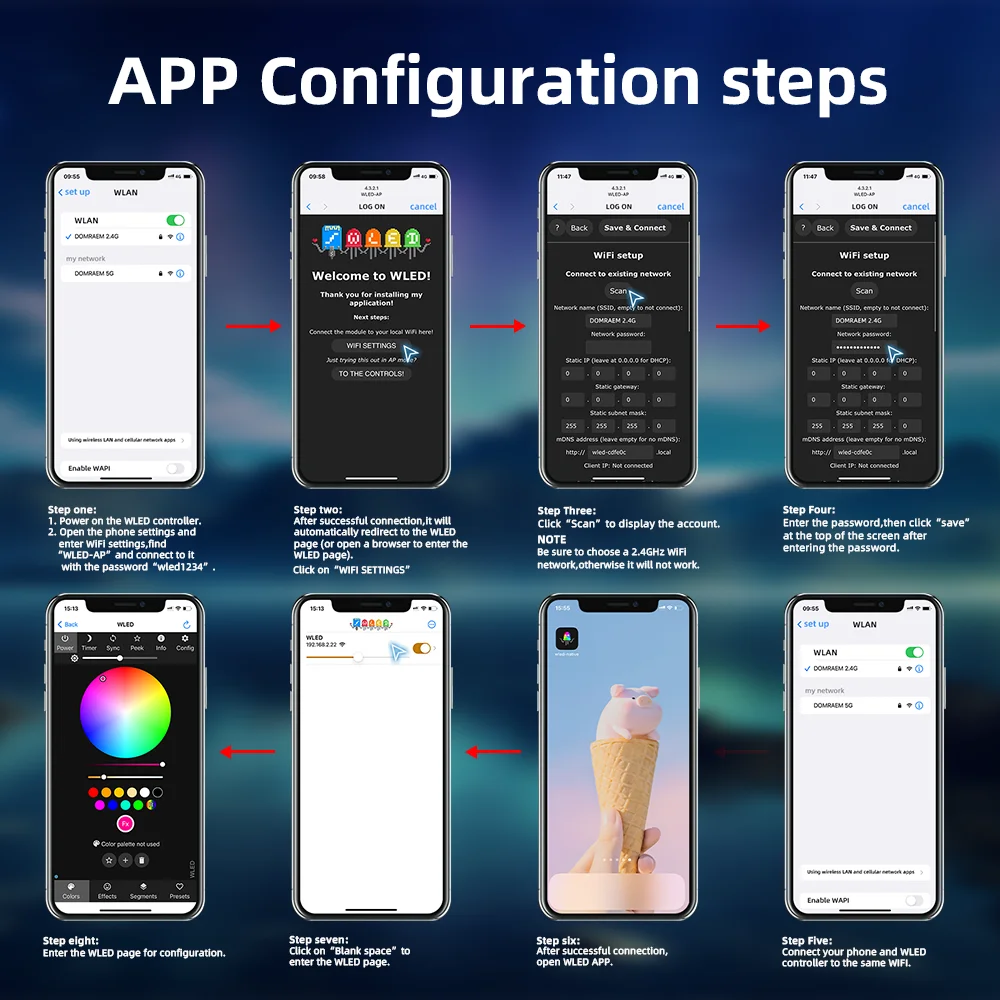

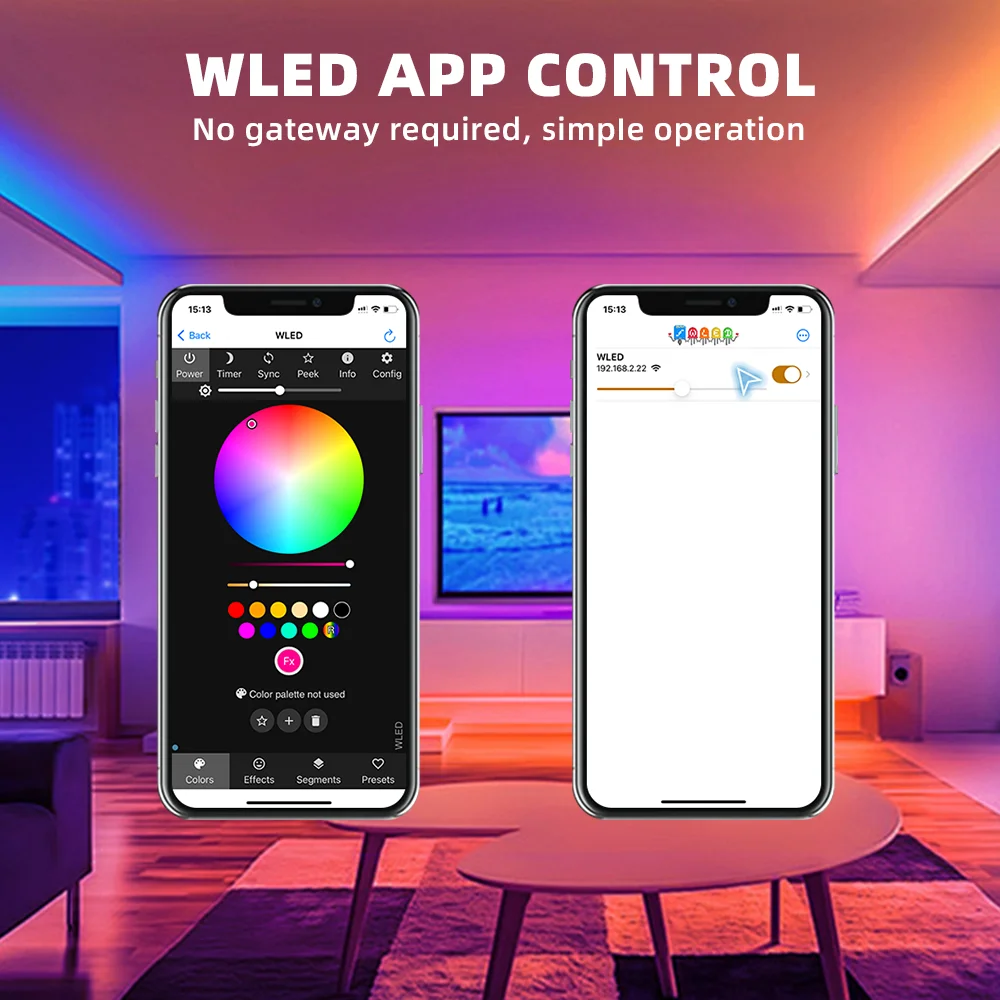

• Direct WiFi connection with easy management via WLED app
• Gateway-free, enables smart control anytime, anywhere
• Open-source code supports developer customization

🎛️ Multi-Smart Control

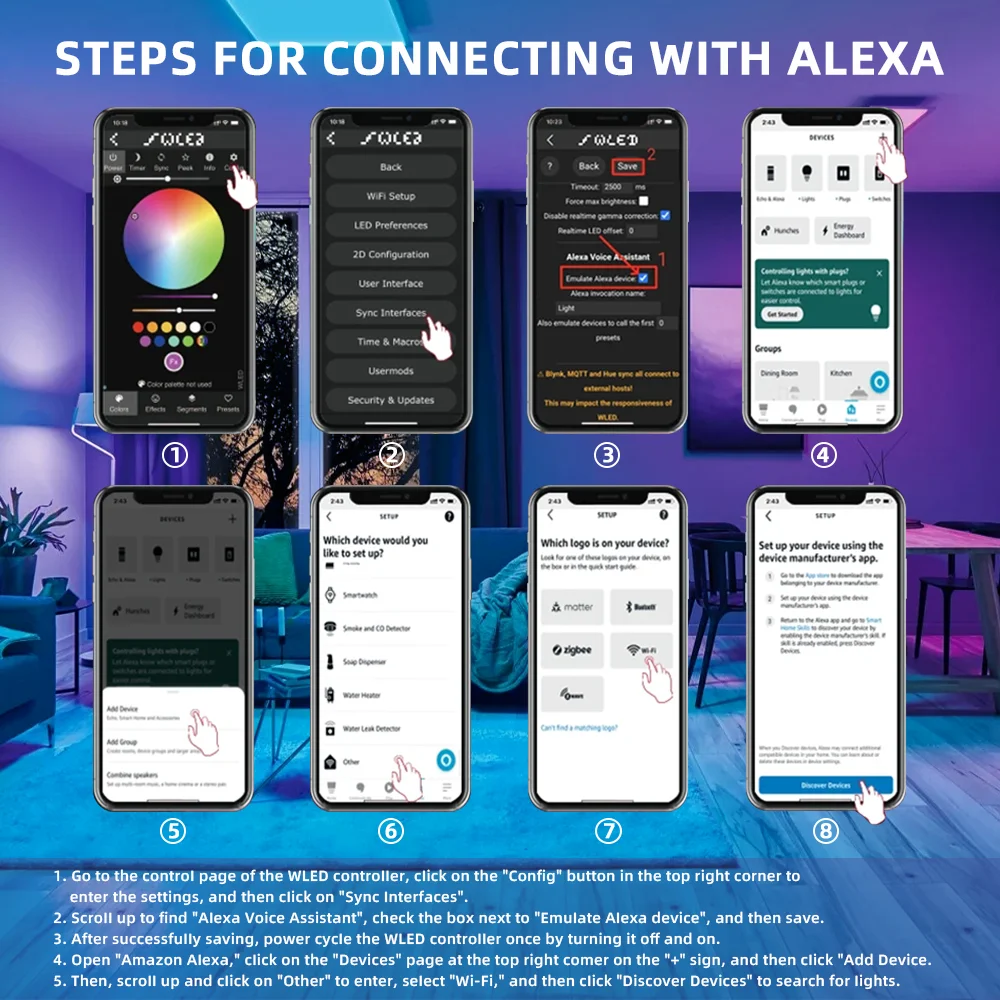

• Compatible with mainstream voice assistants (Alexa/Google Assistant)
• Supports dual control modes: remote & mobile app

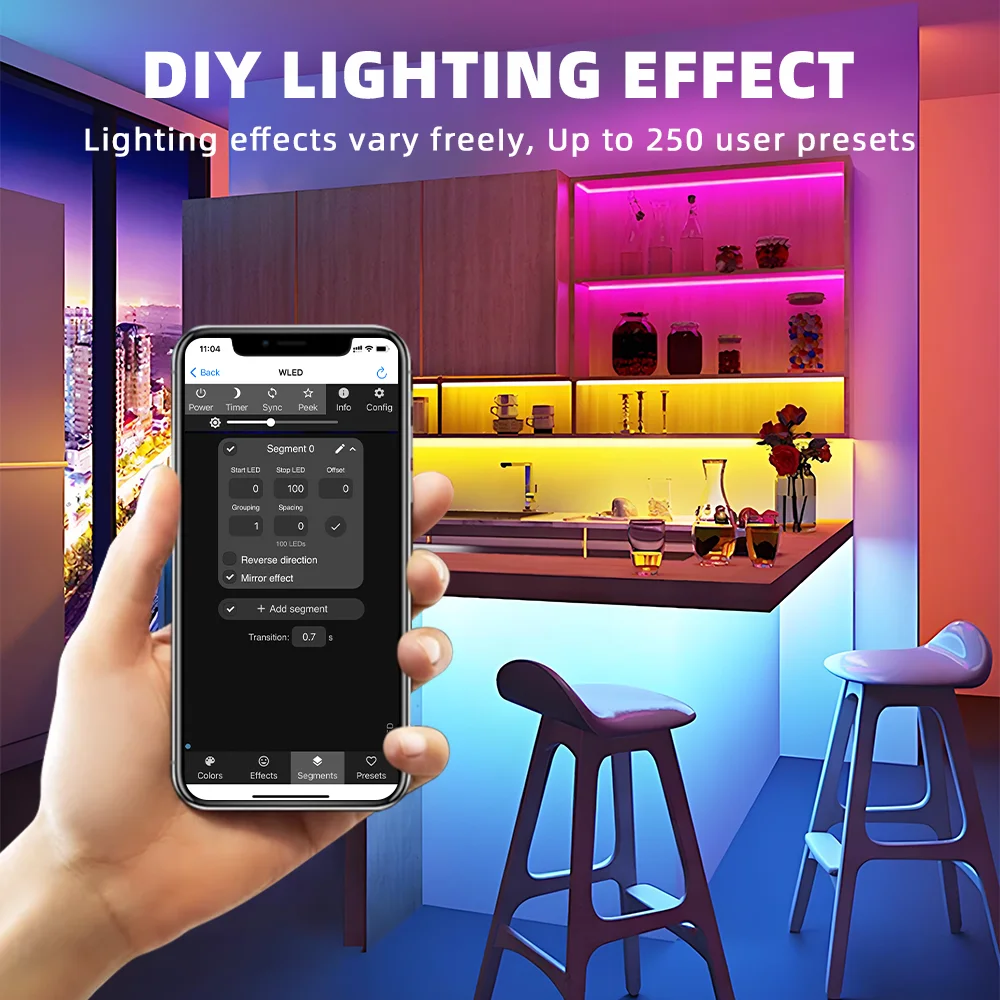

• Programmable segmented lighting colors and effects

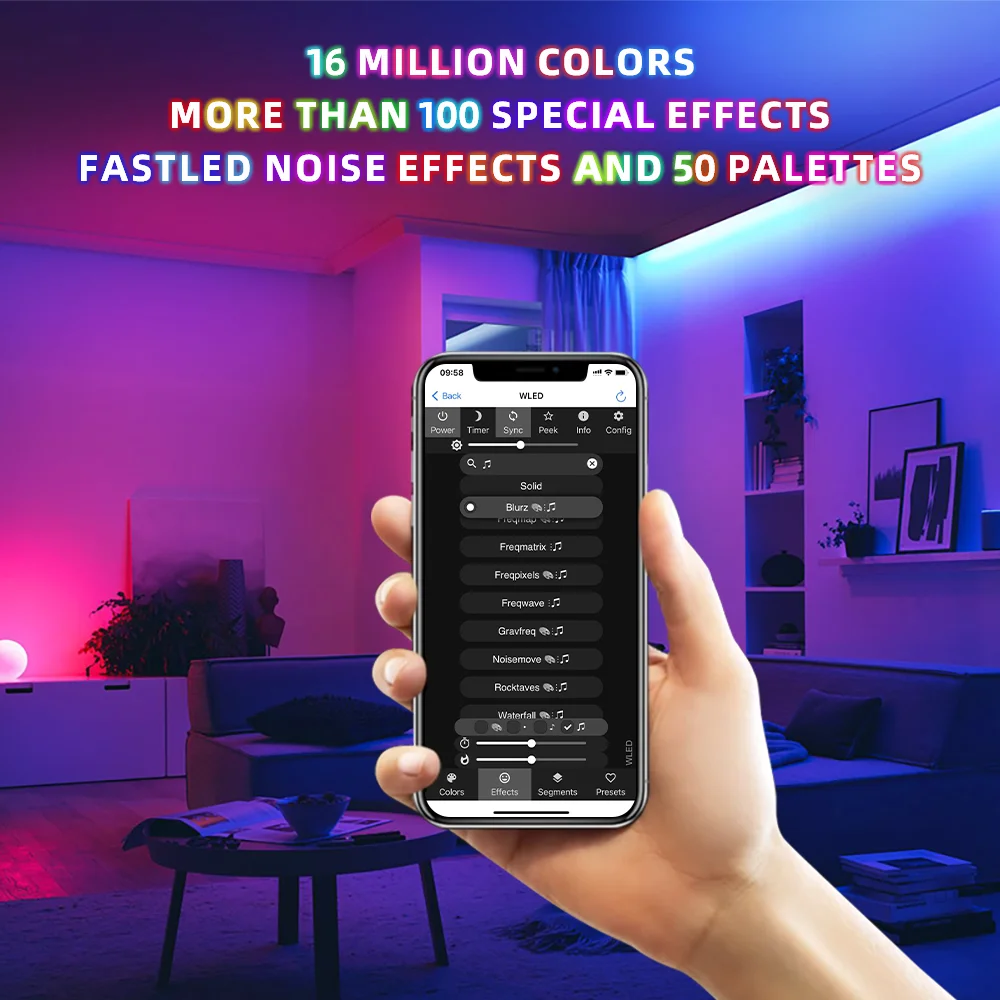

🌈 100+ Lighting Effects for Unlimited Creativity
• Built-in professional-grade lighting effects library
• Fully supports DIMMER/RGB/RGBW/RGBCCT Addressable light strips
• Create personalized lighting scenes effortlessly

🌱 Energy-Efficient Eco-Design
• Standby power consumption ~0.6W
• Power-saving architecture ensures long-term stable operation

🔠 Extensive Hardware Compatibility
• Compatible with mainstream chips including WS2811/SK6812/WS2812B/WS2805
• Suitable for diverse scenarios: home/commercial/festive decorations

Key Advantages:
• Quad-mode smart control: WiFi/voice/sound/app comprehensive management
•16A high-current output
• Open-source architecture enables continuous evolution
• Visual programming for stunning effects
• Energy-efficient long-term operation
• Developer ecosystem supports secondary development

[Product Highlights]
√ Industrial-grade circuit protection design
√ Professional open-source lighting control system
√ One-touch smart scene switching
√ Minimalist aesthetic exterior design

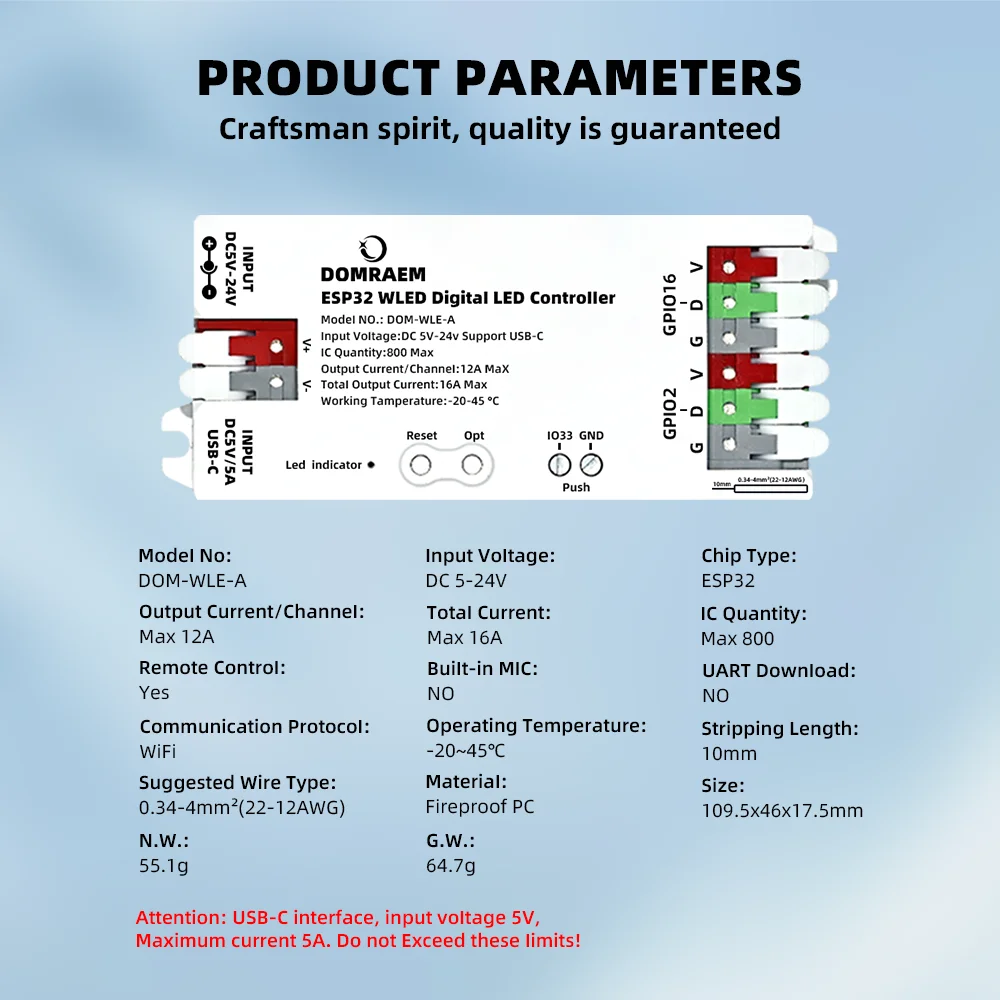

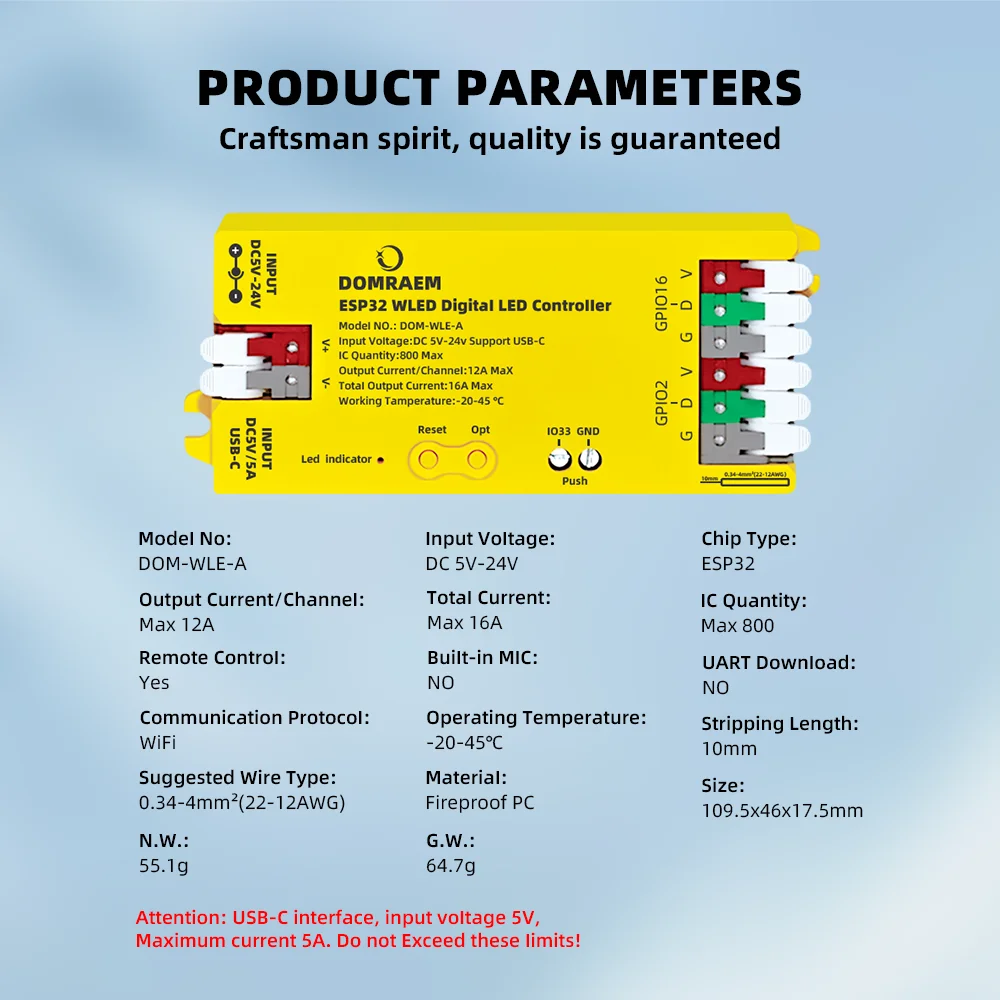

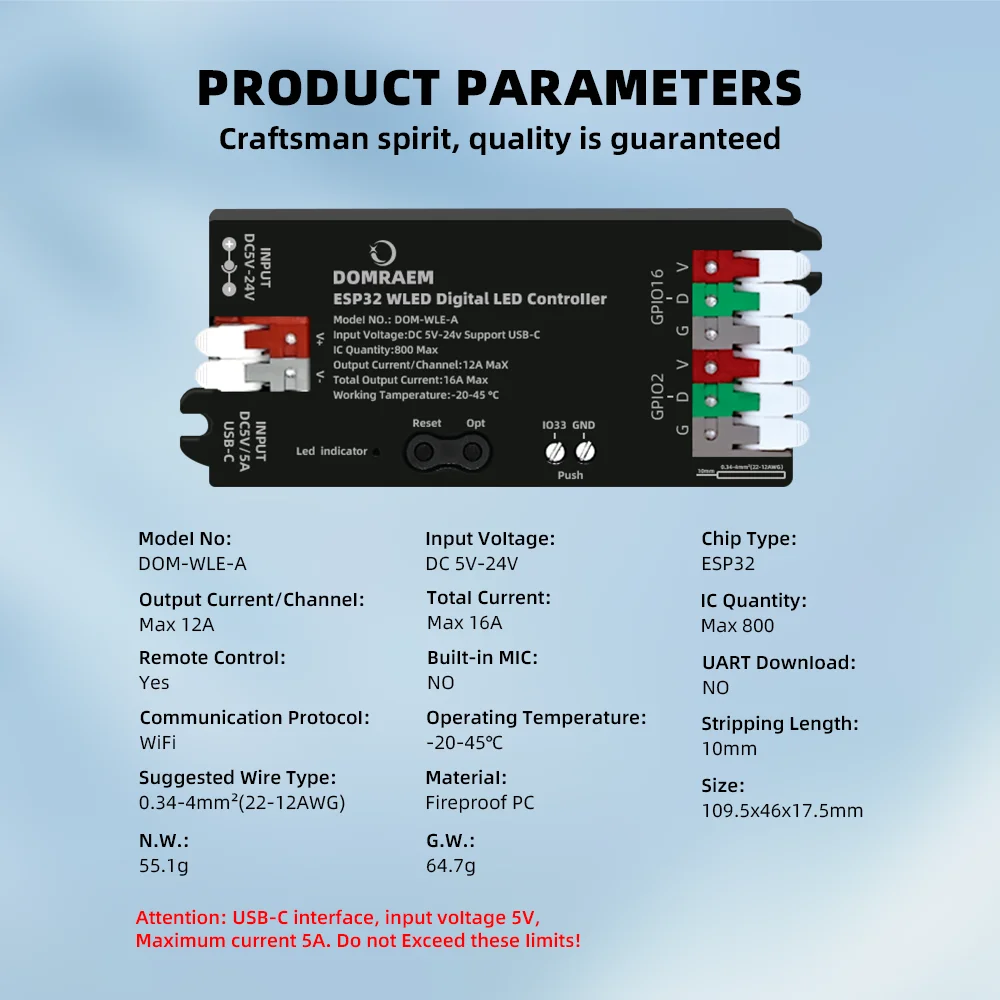

Parameters

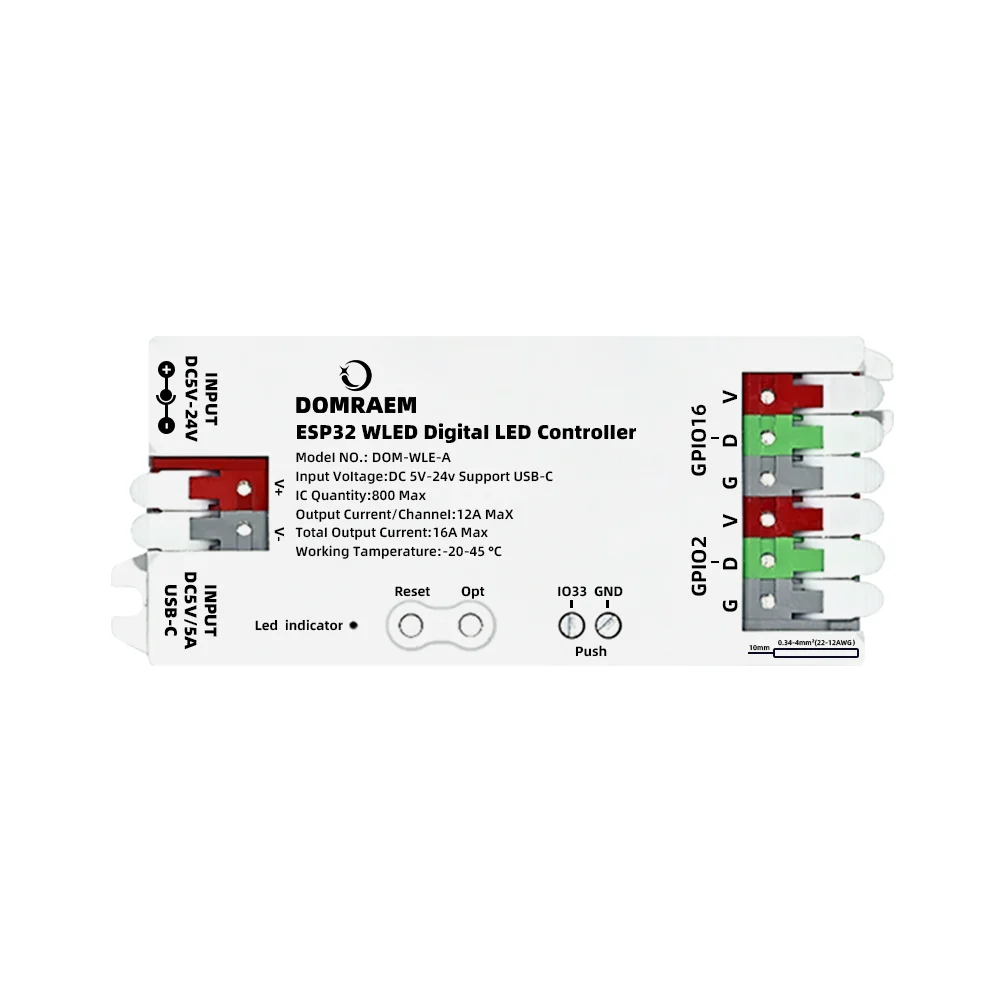

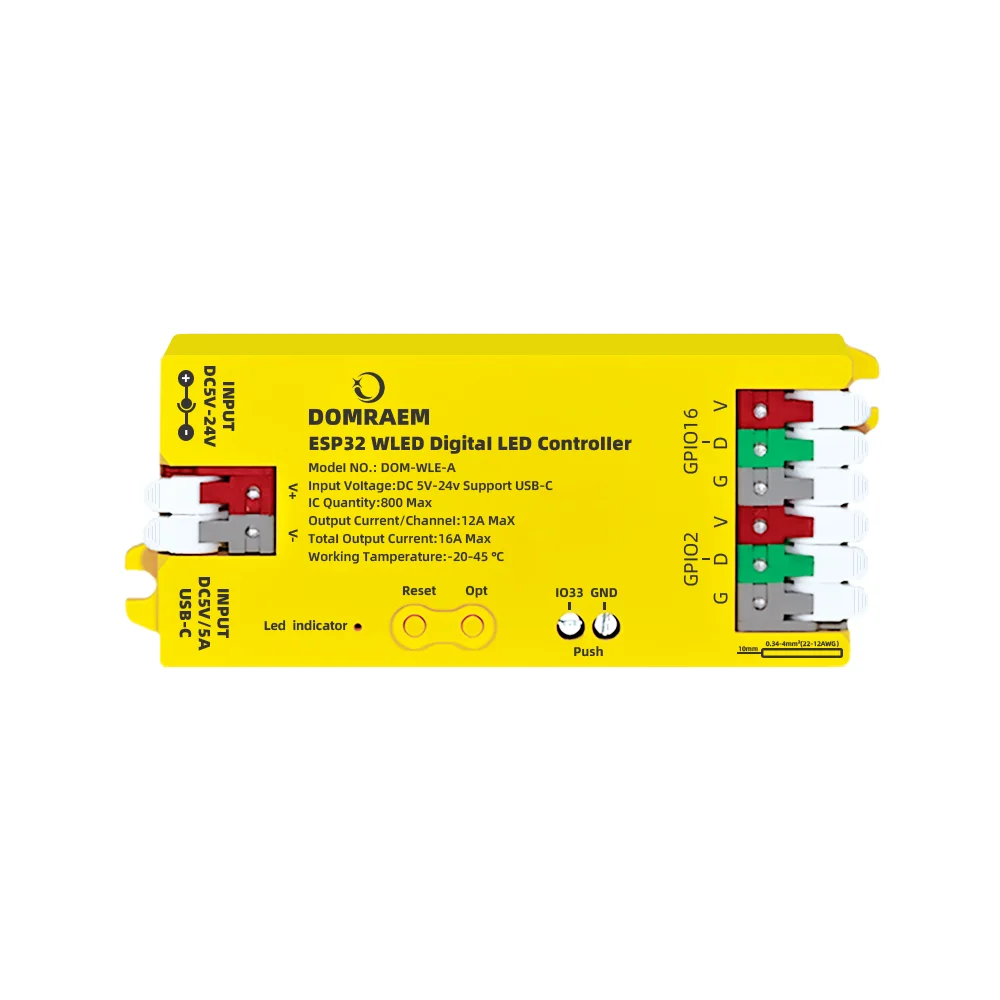

Product Name:ESP32 WLED Strip Light Controller

Model No.:DOM-WLE-A

Voltage: DC 5-12-24V

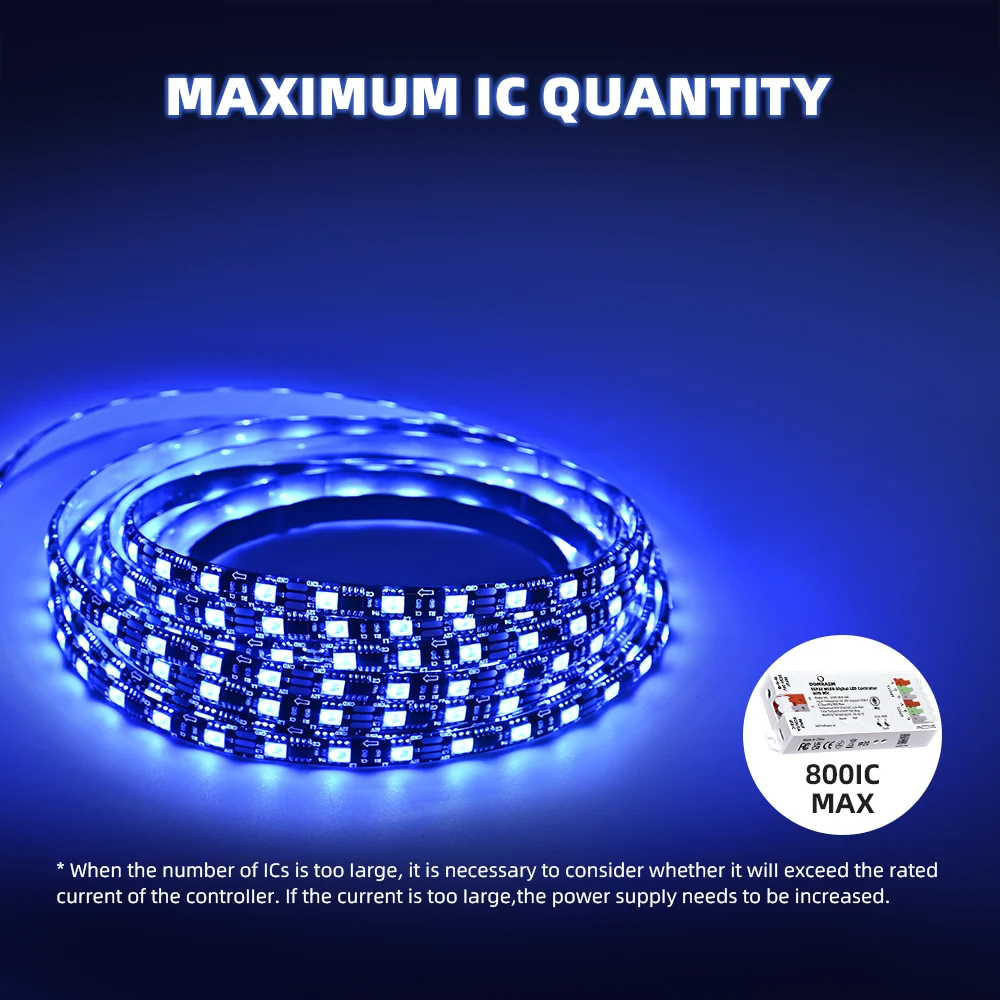

IC Quantity: 800 Max

Total Current: 16A Max

Size: 109.5*46*17.5mm

Operating Temperature:-20-45°C

Supported Strip: WS2811 WS2812 WS2812B WS2813 WS2814 WS2815 SK6812 TM1814 WS2805 Strip Light etc.
