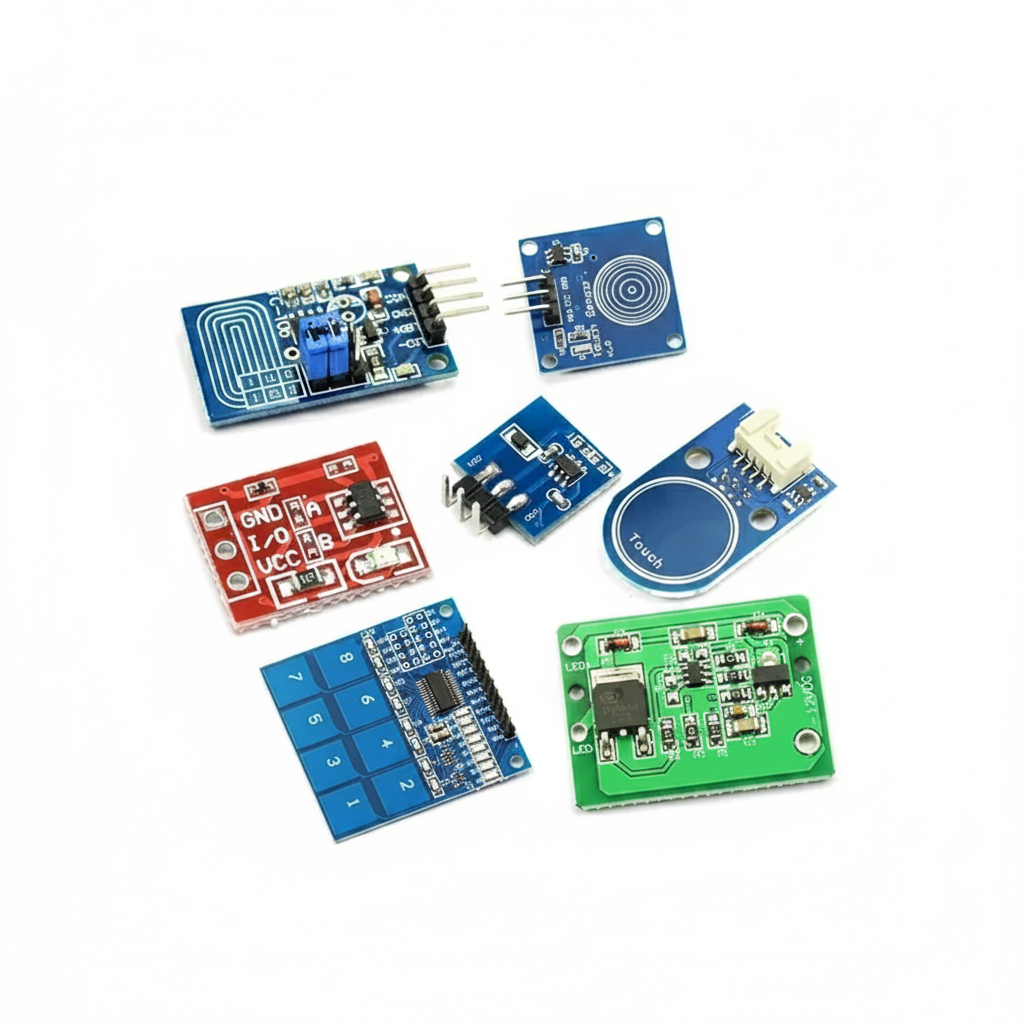

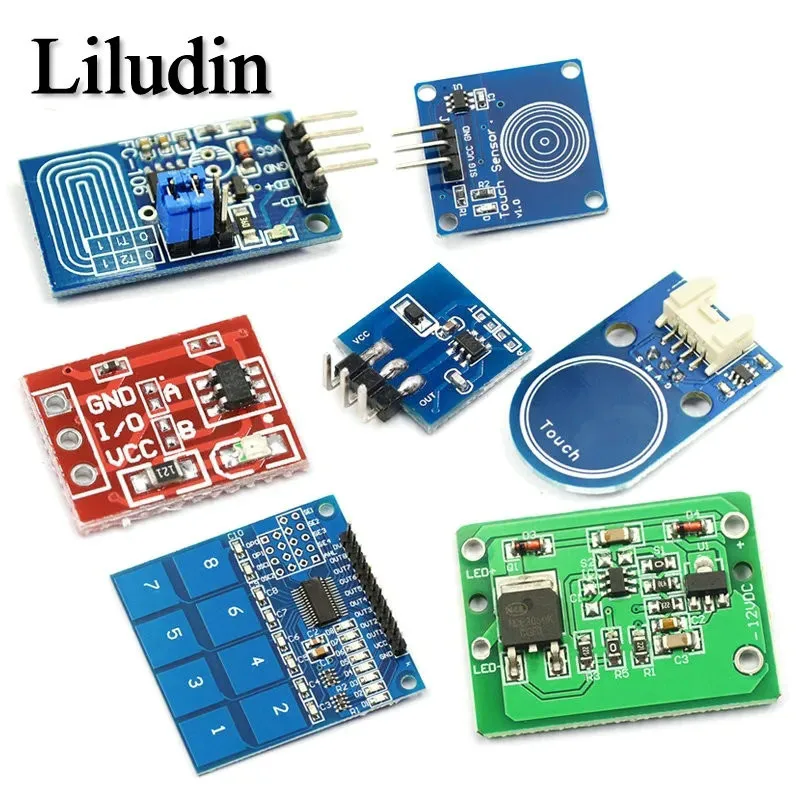

1/4/8/16 Channel TTP223 TTP224 TTP226 TTP229 Jog Digital Touch Button Sensor Capacitive Switch Modules Accessories for Arduino

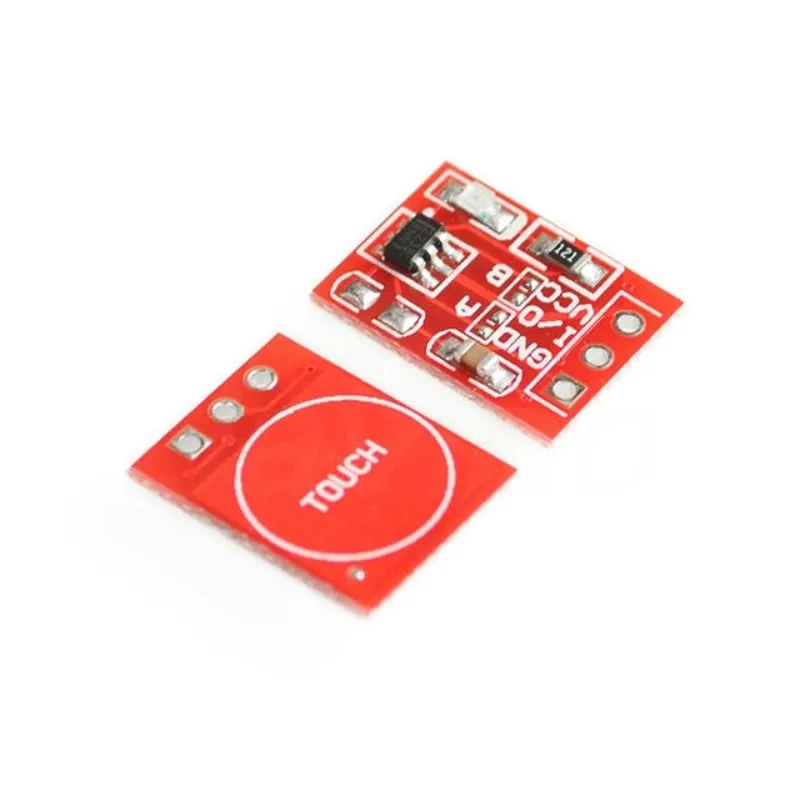

Trigger setting mode:(1- > Short ; 0- > No Short)
AB=00:No-lock High TTL level ouput;
AB=01:Self-lock High TTL level ouput;
AB=10:No-lock Low TTL level ouput;
AB=11:Self-lock Low TTL level ouput;

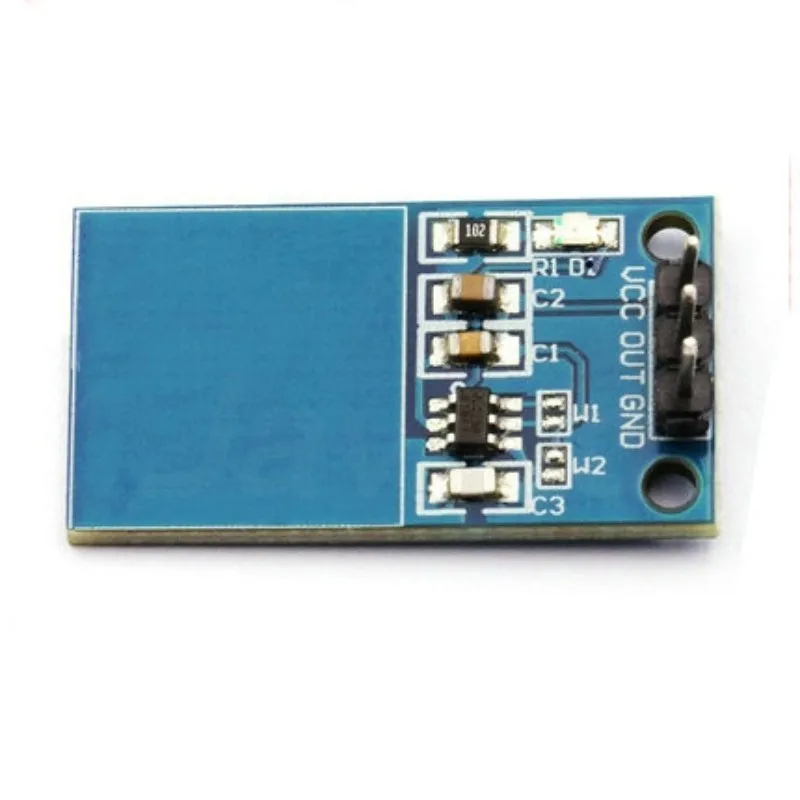

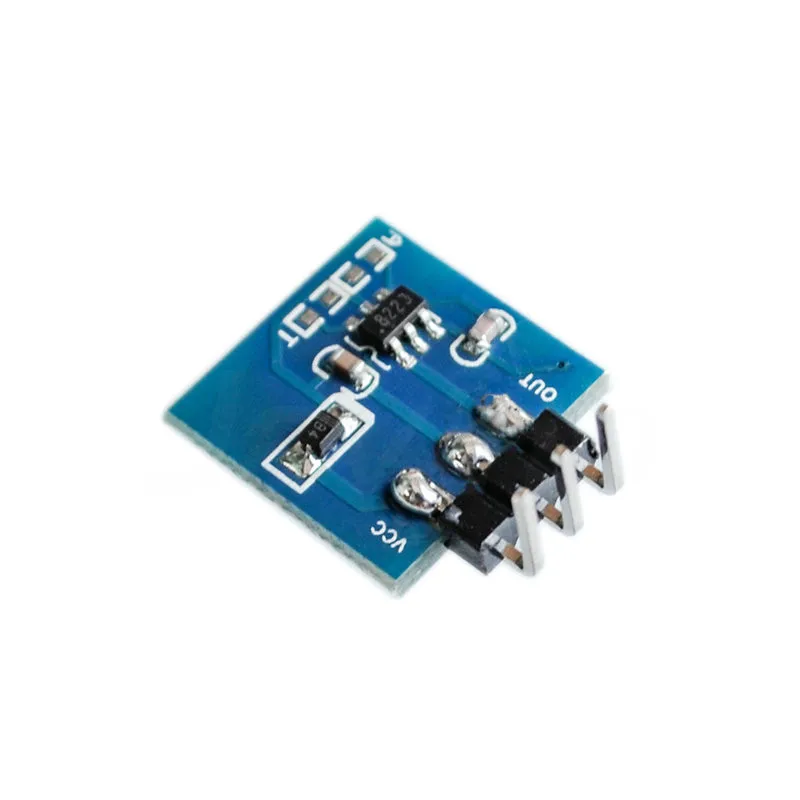

TTP223B Digital Touch Sensor Capacitive TTP223 Touch Switch Module Digital Sensor Capacitive Touch Switch

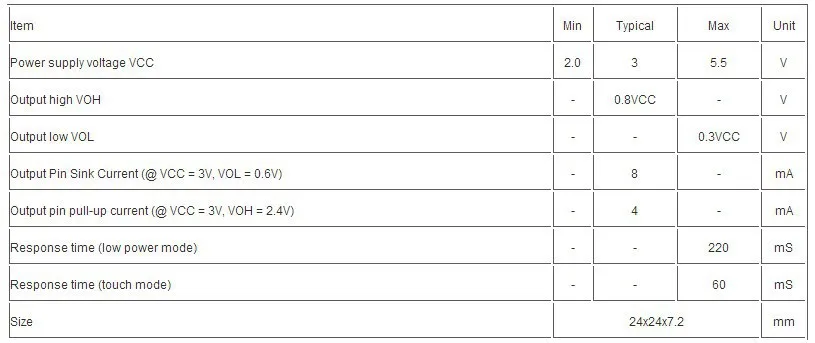

• The module is based on a touch-sensing IC  (TTP223B) capacitive touch switch module. In the normal state,the module output  low,low power consumption; When a finger touches the corresponding position, the module output high,if not touched for 12 seconds,switch to low-power mode.

• Jog type: the initial state is low,high  touch,do not touch is low ( similar touch of a button feature ).

• Module can be installed in such as surface  plastic,glass of non-metallic materials.

• In addition to the thin paper ( non-metallic )  covering the surface of the module,as long as the correct location of the  touch,you can make hidden in the walls,desktops and other parts of buttons.

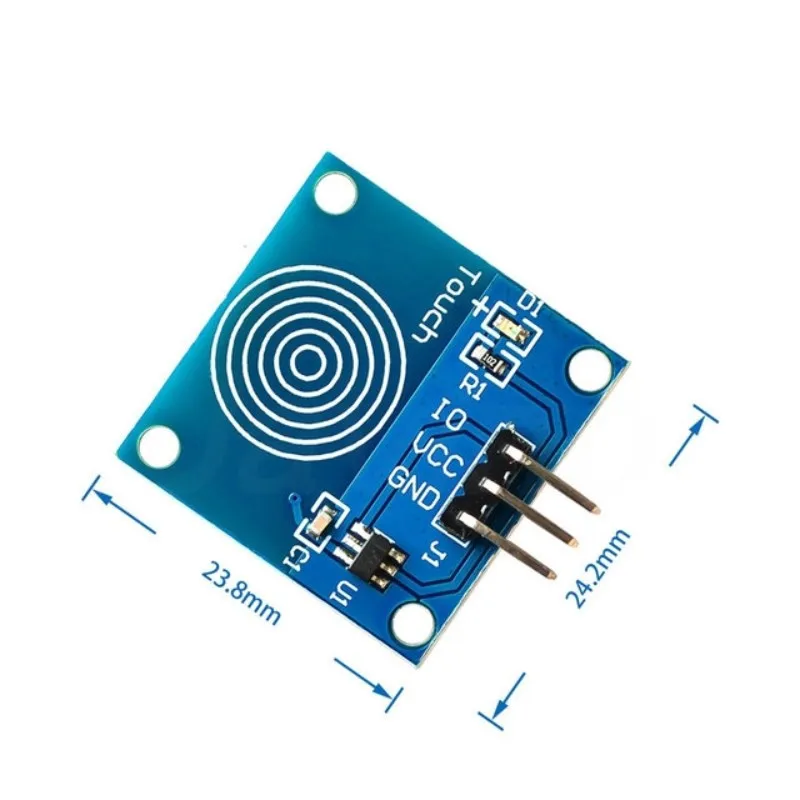

4. Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm,the positioning of the module is easy to install,to achieve inter-module combination.

• The module is based on a touch-sensing IC  (TTP223B) capacitive touch switch module. In the normal state,the module output  low,low power consumption; When a finger touches the corresponding position, the module output high,if not touched for 12 seconds,switch to low-power mode.

• Jog type: the initial state is low,high  touch,do not touch is low ( similar touch of a button feature ).

• Module can be installed in such as surface  plastic,glass of non-metallic materials.

• In addition to the thin paper ( non-metallic )  covering the surface of the module,as long as the correct location of the  touch,you can make hidden in the walls,desktops and other parts of buttons.

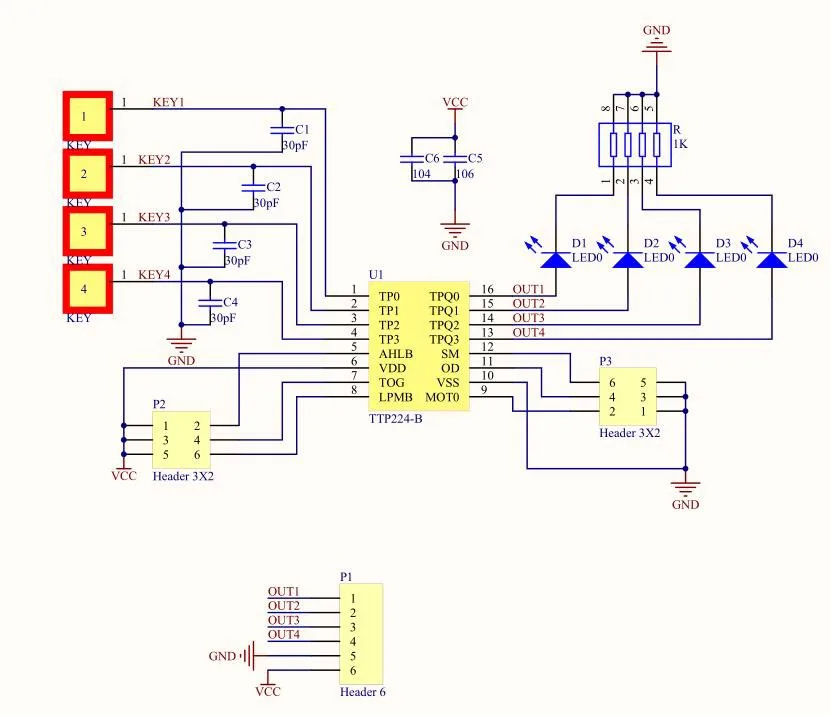

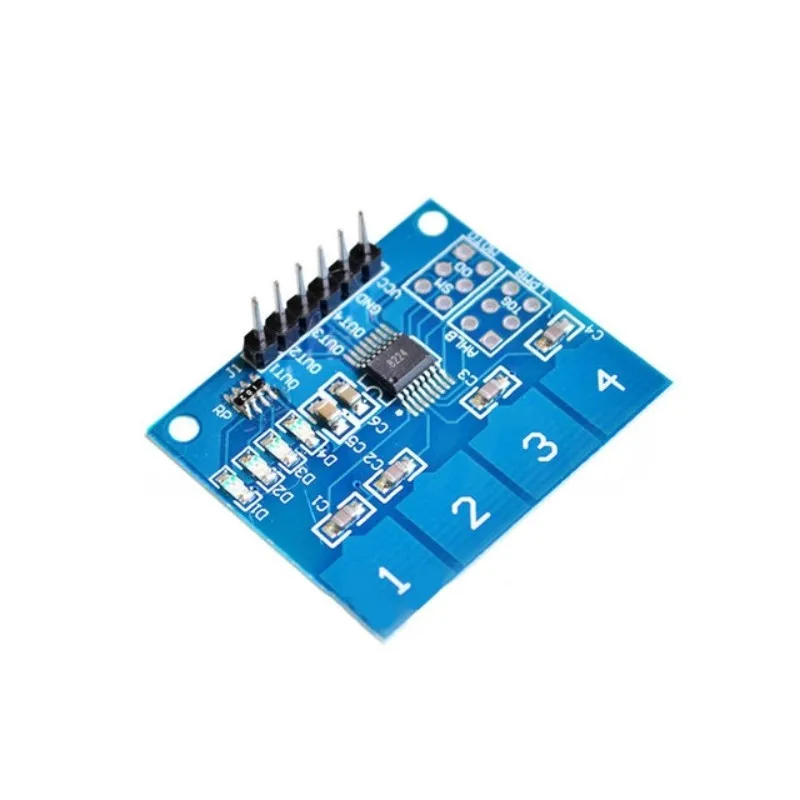

TTP224 / TTP226 / TTP229 Switch Touch Sensor Digital 4 / 8 / 16 channel Touch Capacitive Module

• Onboard TTP224 capacitive 4-button touch sensing IC

• Onboard 4-channel level status indicator

• Working voltage: 2.4V-5.5V

• Module can set output mode,key output mode,maximum output time and fast / low power selection

• PCB board size: 35 (mm) x 29 (mm)

•

PCB size:L23MM *W20MM
Hole distance:16MM
Aperture:2.5MM
Voltage range:2.4-5V
Maximum output current:500MA

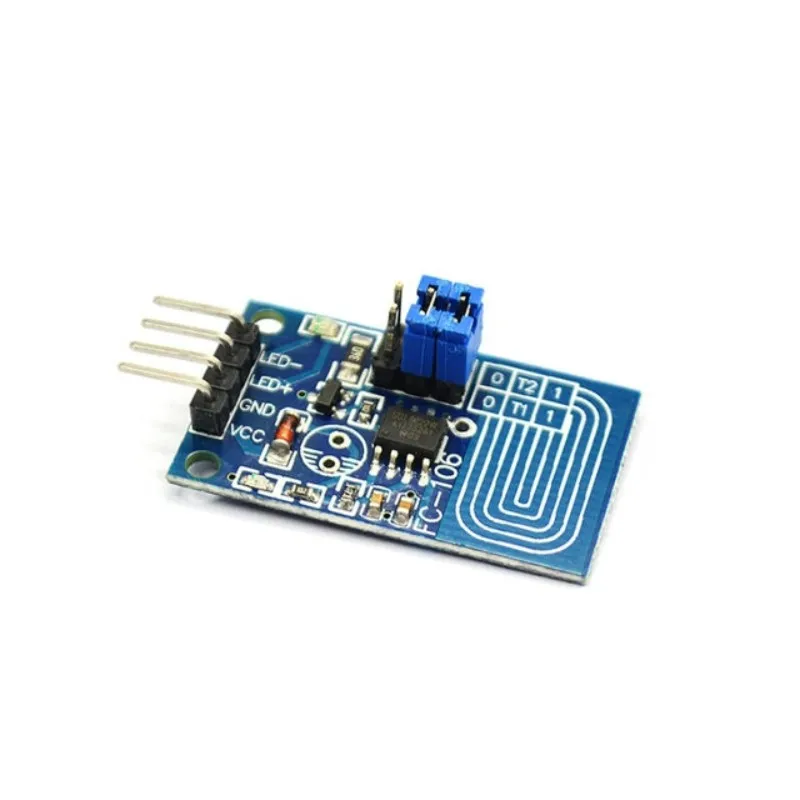

Feature:

1.The lamp brightness can be adjusted by requirement,it is very to operate.
2.It can touch in medium protection,such glass,acrylic,plastic,ceramics and so on,which is very safe.
3.Wide application of voltage range,you can choose arbitrarily between 2.4V to 4.5V.
4.Simple applied circuit,less peripheral devices,easy processing,low cost.
5.Anti power and phone interference,the EFT can reach above +/-2KV;the touch response sensitivity and reliability will not affected by the close distance or multi-angle mobile phone interference.
6.Install:Needn't to touch copper foil directly,the dimming can be processed across acrylic glass(above 3mm) or plastic.
7.Application:It can control LED module,light and so on.It is available for indoor LED,lighting lamp,DIY automotive lights dimming refit.
8.Function:Single touch,using the principle of capacitance touch .The default function is switch,dimming,with brightness memories LED touch dimming.It will light slowly when turn on the lights,and become dark slowly when turn off,which effectively avoid the stimulation to eyes.
9.Dimming mode:Non-polar PWM dimming.
10.Wiring method:PCB board(VCC,GND) is power input,(LED+,LED-) is connected with the LED lamps of positive and negative level (fingerprint) touch area,also can wire to lead out (the wiring should not be too long),copper skin area should be 2x3cm.With copper foil copper foil board module will side to the shell side.
11.Using method
a.Click touch(touch duration time is less than 550ms) can control the lamp.Click once,the lamp lights;click again,the lamp off.The initial brightness of lights lit the fixed for the whole brightness of 90%.
b.Press the touch at long time (touch duration time is more than 550ms),you can achieve stepless dimming the lights. Press long time once,light levels gradually increase light levels when released after the release time parked in the corresponding brightness,long time if more than three seconds,the light levels to achieve maximum brightness does not change; again long press touch,light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time,if a long time more than three seconds,the light levels after reaching the minimum brightness does not change.


Note:

the constant voltage dimmer output connect with LED,the upper limit must be coscade current-limiting resistance.Size for manual measurement,there may be a 0 to 2 cm error,belongs to the normal phenomenon

Package:

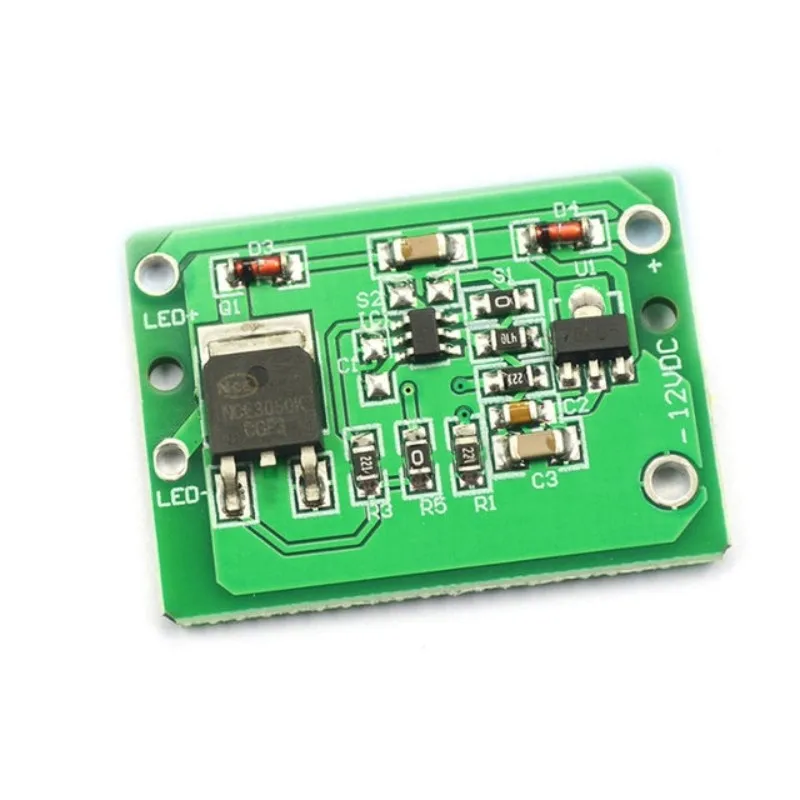

1  x  Capacitive Touch LED Dimmer PWM Control Switch Module
