5.8G Microwave Induction Switch 220V Intelligent Energy Saving Control Microwave Radar Sensor

Product selling points

1: Easy to use and install

2: Fully automatic sensing: Automatically turn on the light when sensing a person, turn on the light when coming and turn off the light when walking, safely save electricity, and be unaffected by external influences such as sound and objects

3: Sensitive sensing, accurately identifying the movement of living and non living organisms, minimizing the rate of misoperation.

4: Stable and reliable performance

5: Automatic light metering: Automatically recognizes the intensity of ambient light, meets lighting requirements and lights up when there are people present. Otherwise, it will not light up.

Product Overview:

When someone enters the sensor and meets the lighting demand, the microwave switch will automatically turn on, the load appliance will start working, and the delay system will be activated. As long as the human body does not leave the sensing area, the load appliance will continue to work. When the human body leaves the sensing area, the sensor begins to calculate a delay. When the delay ends, the sensor switch automatically closes and the load appliance stops working. Truly achieved, safe, convenient, intelligent, and energy-saving.

Product Features:

1. Sensitive sensing, accurately identifying the movement of living and non living organisms, minimizing the rate of misoperation.

2. Strong anti-interference: It adopts a working frequency of 5.8GHz and is less affected by external natural factors, with stable and reliable performance.

3. Automatic metering: Automatically recognize the intensity of ambient light, meet lighting requirements, and turn on the light when there are people. Otherwise, it will not light up.

4. Fully automatic sensing: Automatically turn on the light when sensing a person, turn on the light when coming or going, and turn off the light when walking. It is safe and energy-saving, and is not affected by external factors such as sound or objects.

Three technical parameters:

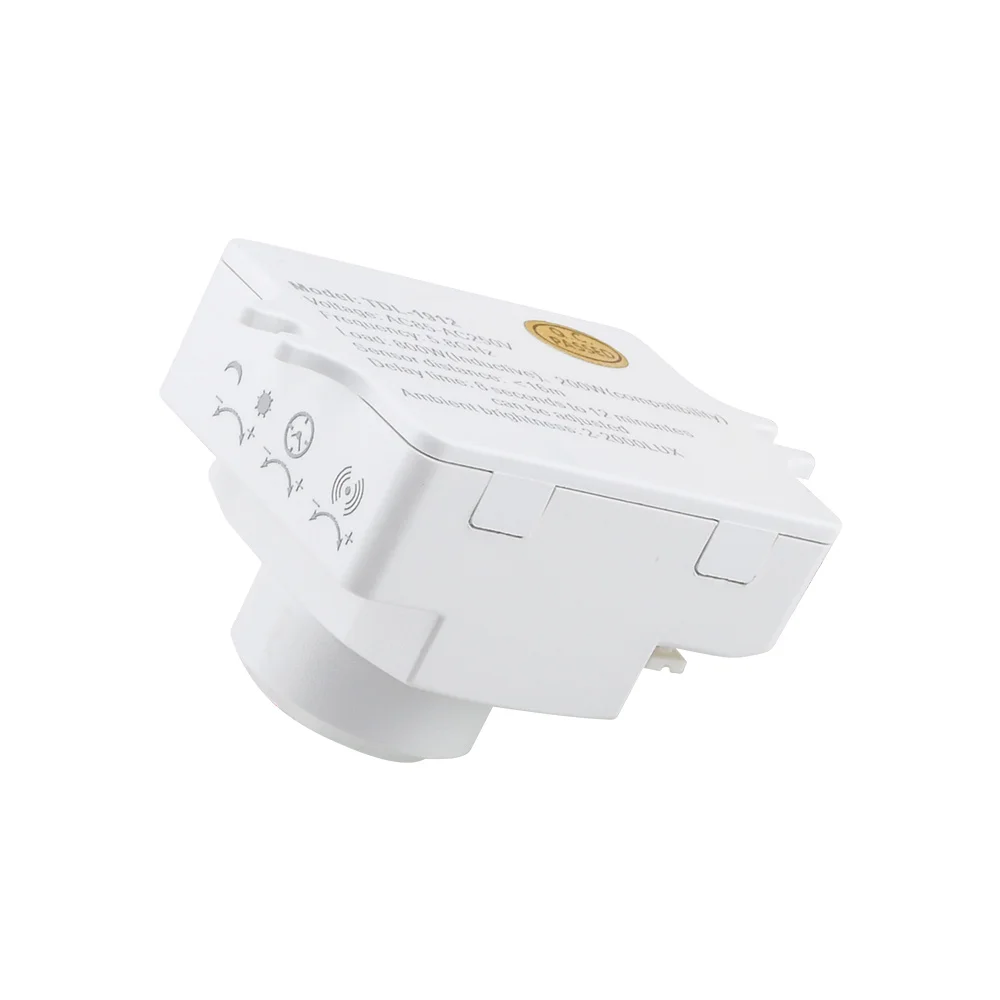

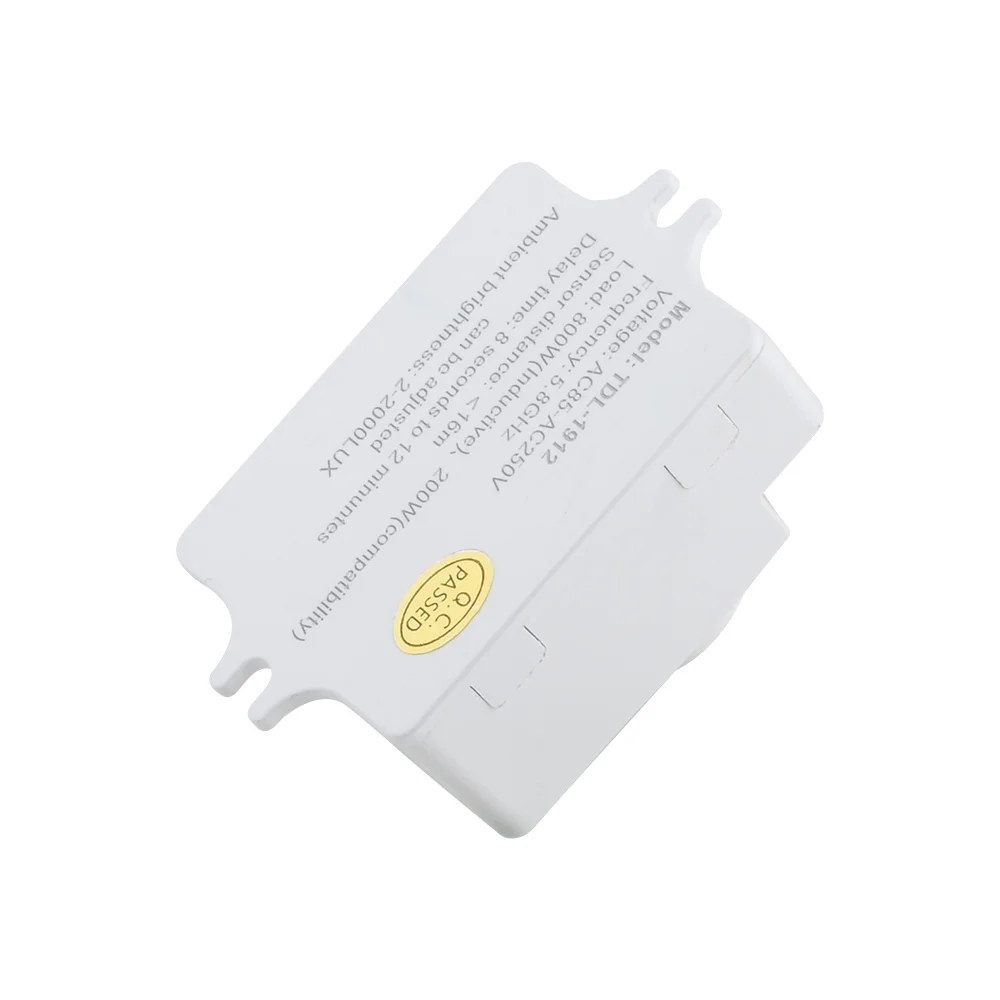

Product model: TDL-1912

Working voltage: AC85-250V

Standby power consumption: 0.9W

Transmission power: ＜ 10mA

Working frequency: 5.8GHz

Sensing distance: 2-16 meters (adjustable)

Working delay: adjustable from 8 seconds to 12 minutes

Light control illumination: 2-200LUX adjustable

Load power: 800W (resistive load) 200W (capacitive load)

Four precautions:

1. Please disconnect the power supply before installation to avoid danger

2. The product is not waterproof, please pay attention to moisture and waterproofing.

3. The microwave induction angle is 360 degrees, please pay attention to the installation method.

4. The internal high-voltage power of the product is strictly prohibited for non professionals to disassemble, otherwise the consequences will be borne by oneself.

Using testing methods:

1. Ensure the correct wiring and installation of the micro liquid sensor and the load lamp;

2. The use of microwave sensors (with ceiling mounted method)
