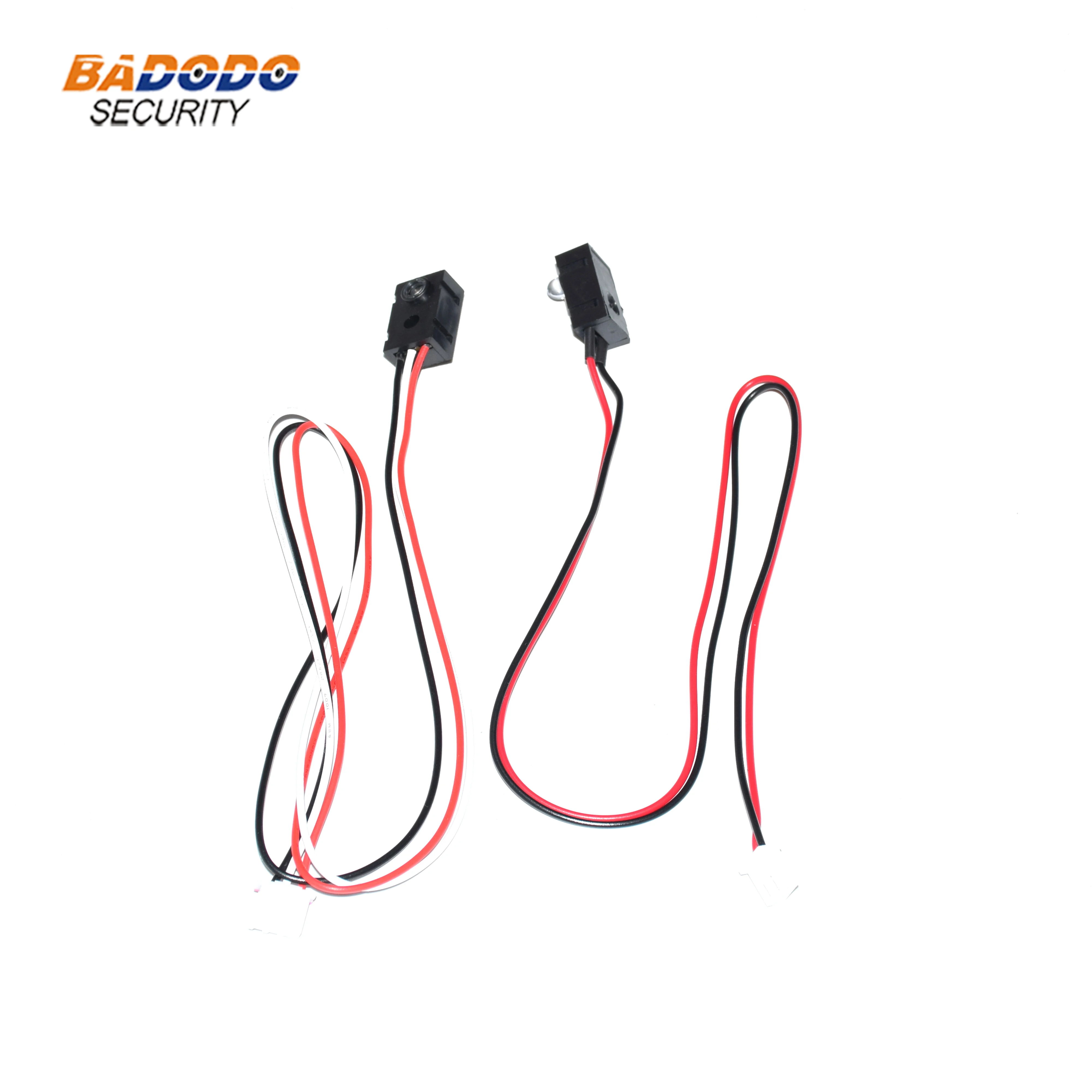

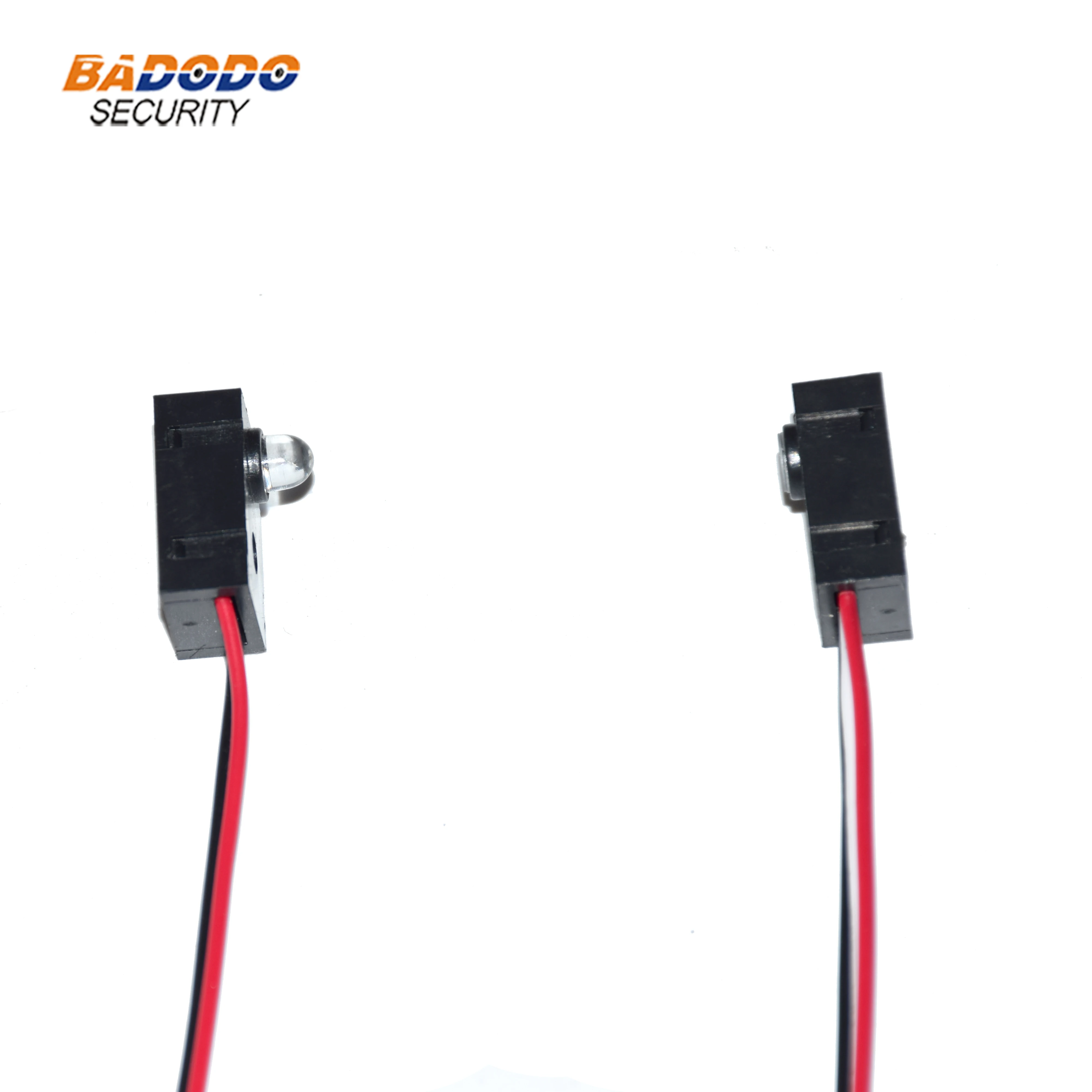

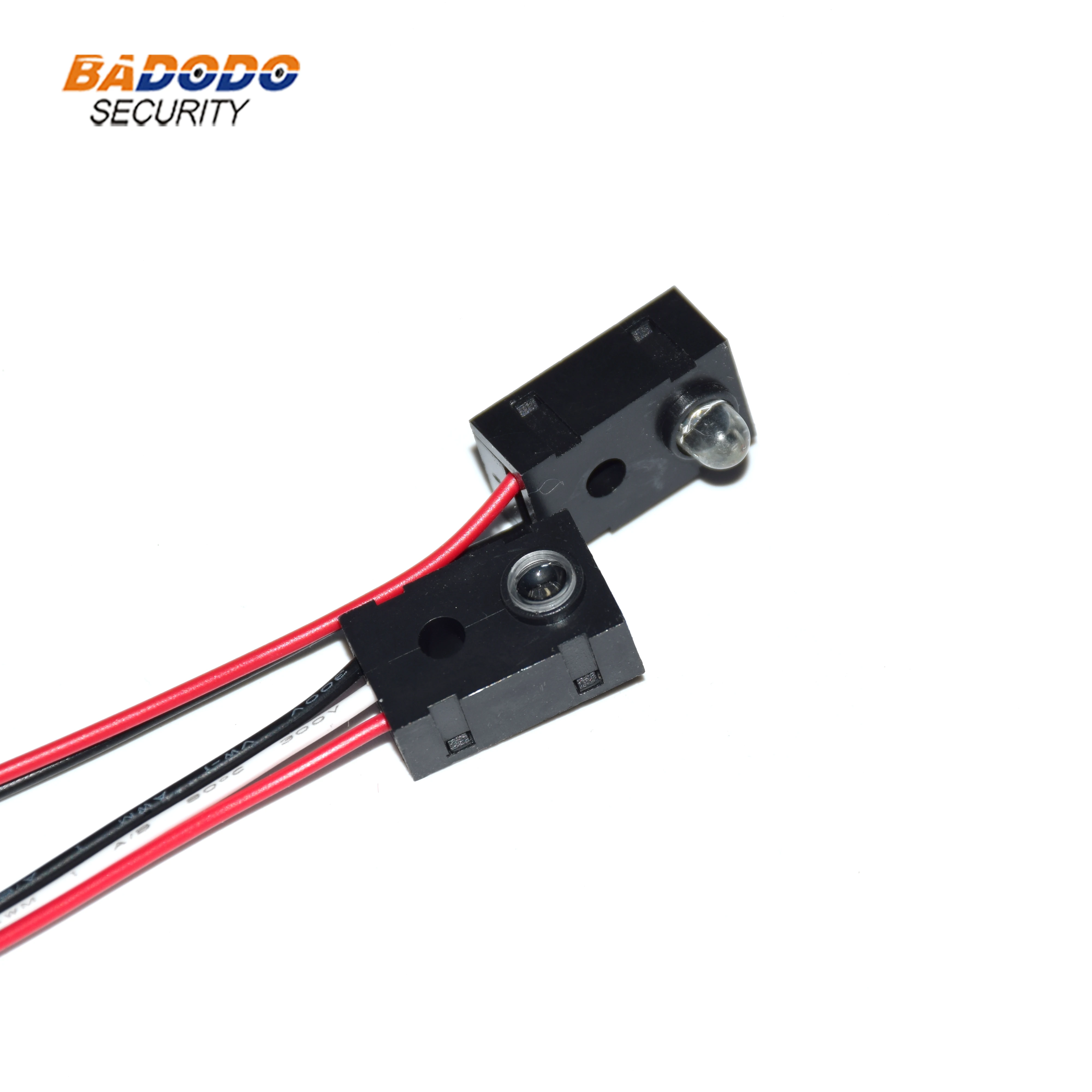

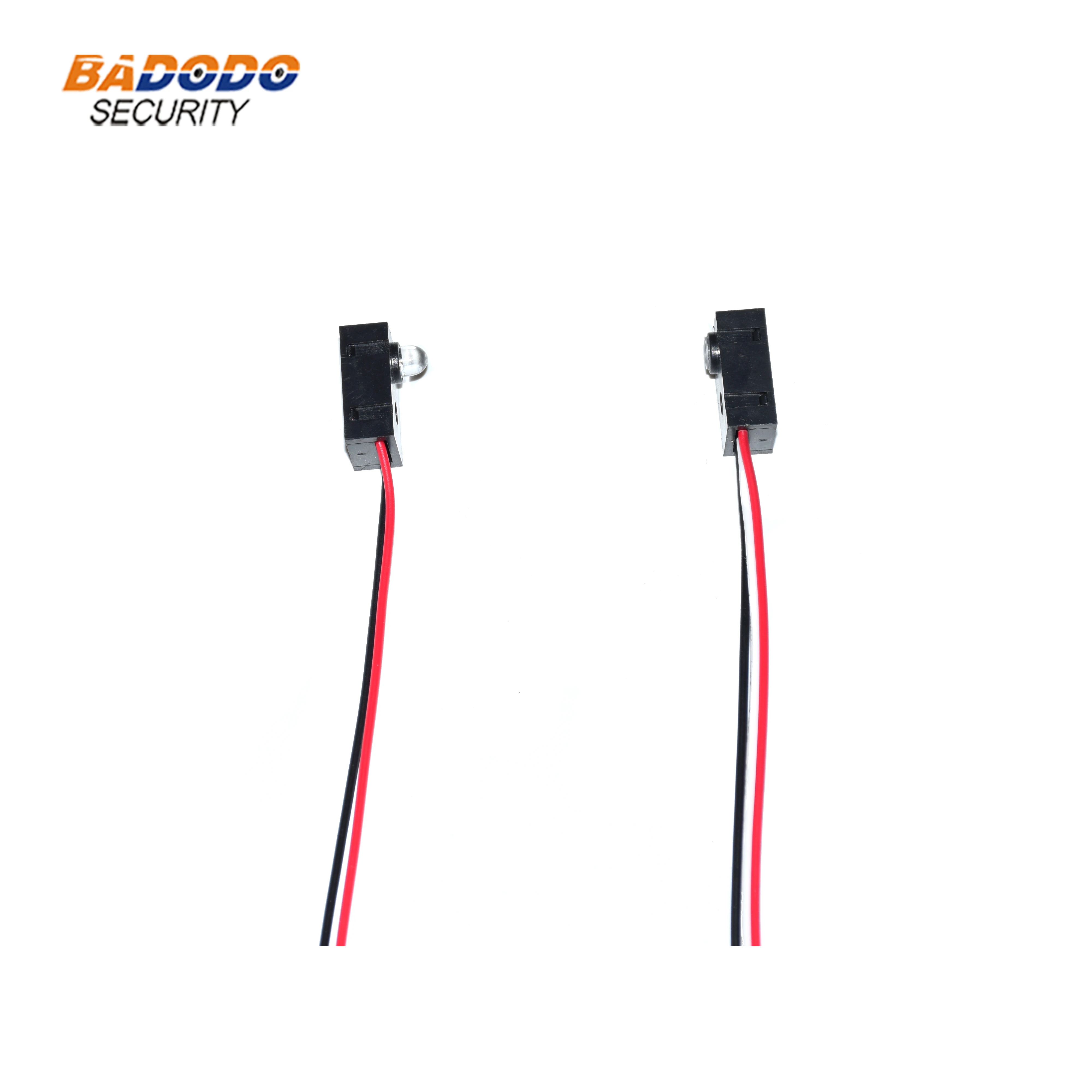

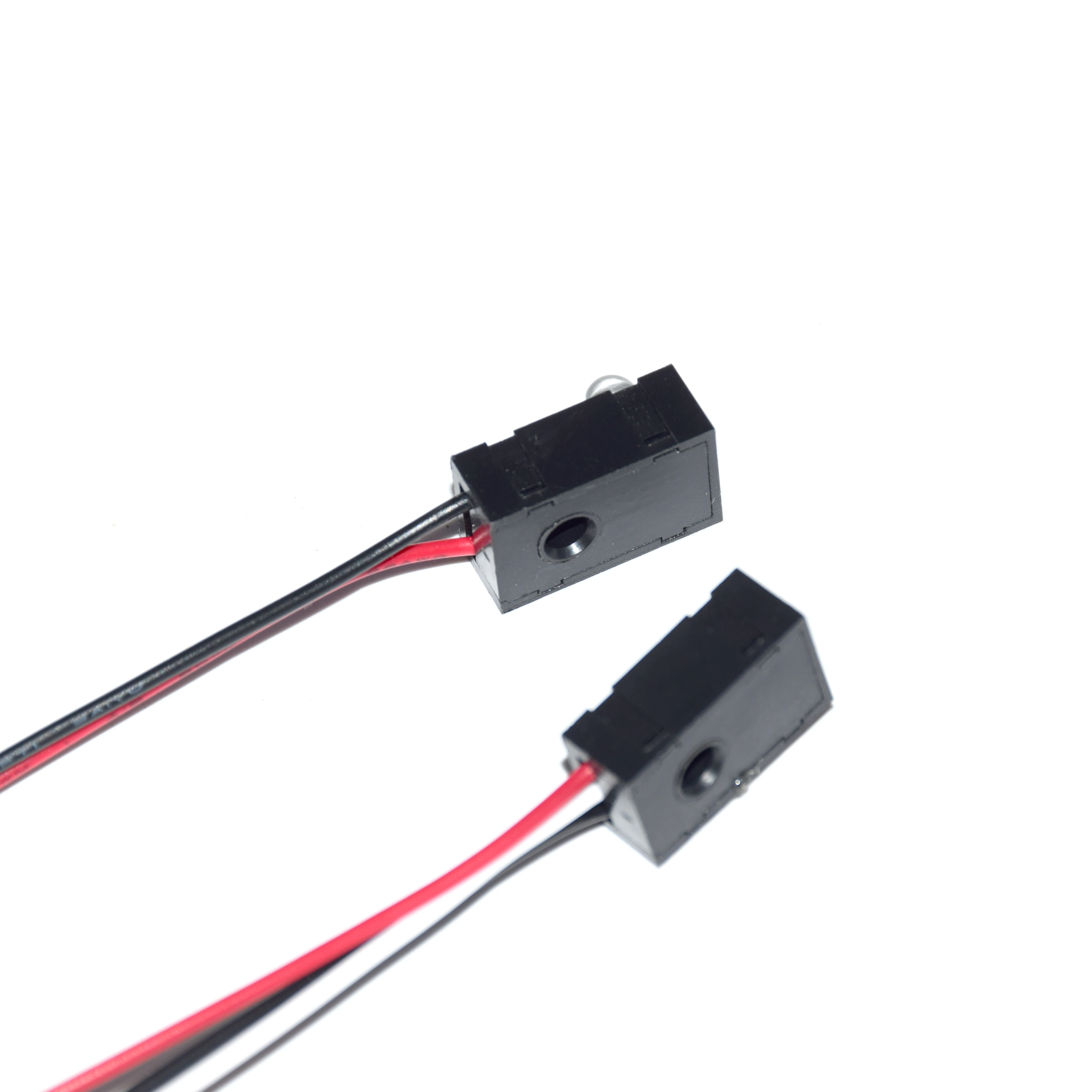

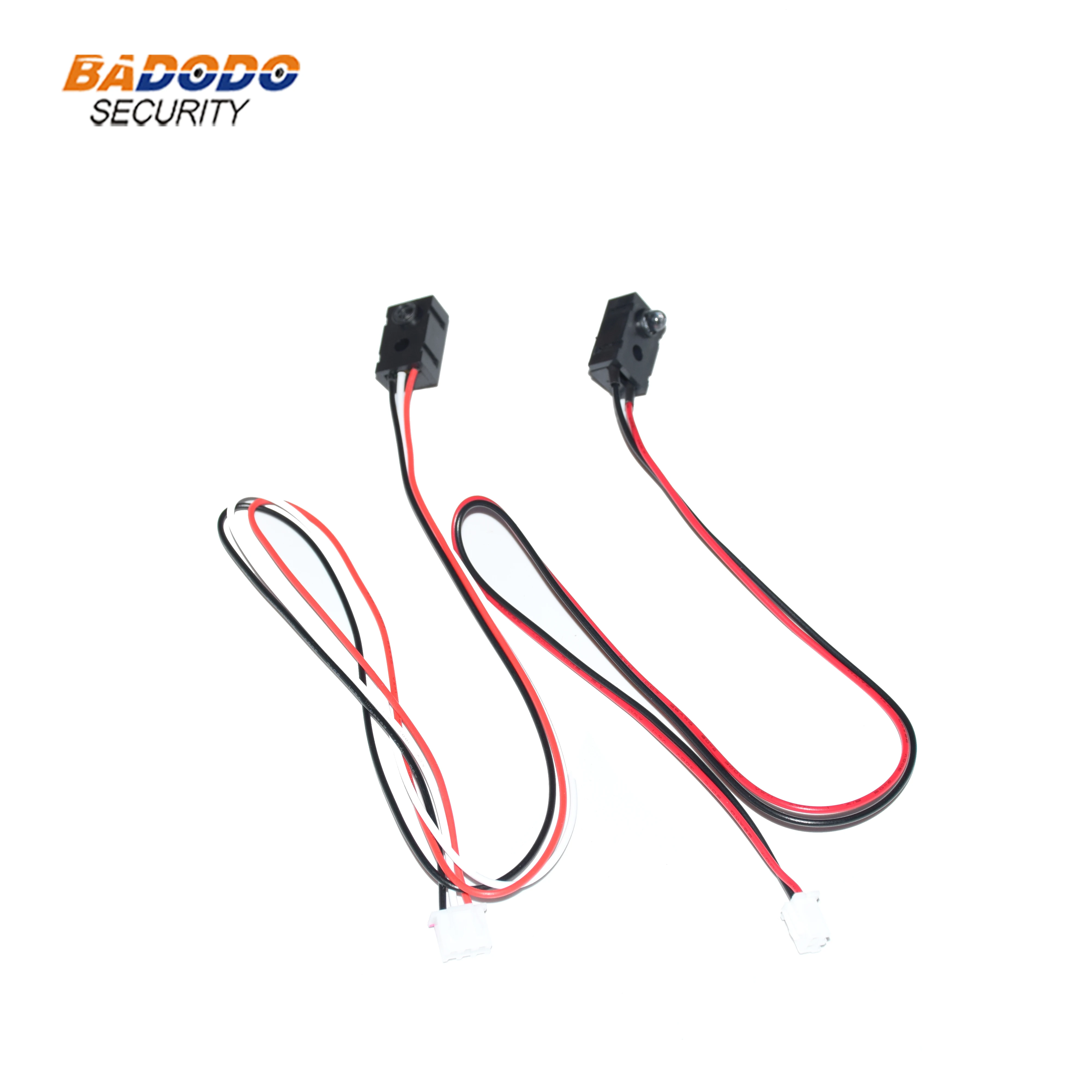

DC5V Infrared Beam Sensor Detector Alarm Photoelectric Switch Detect Distance 1m NPN NO or NC Output
Specification：Detect Distance : 1mWork Voltage : DC5VWork Current : 42mAOutput Current : 16mA ( Can directly connect to relay )Output : NPN (NO, normal open )Transmitter Angle : Line ( Infrared )Receiver Angle : ＜ 10°Response Time : 2msWork Temperature : -25 ~ 60 °CWork Environment : Indoor ( Not waterproof )Normal Open : The voltage between Vcc and Vout is 0V, and when there have an obstacle, the voltage is 5V.The voltage between Vout and GND is 5V, and when there have an obstacle, the voltage
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762Specification：
Detect Distance : 1m
Work Voltage : DC5V
Work Current : 42mA
Output Current : 16mA ( Can directly connect to relay )
Output : NPN (NO, normal open )
Transmitter Angle : Line ( Infrared )
Receiver Angle : ＜ 10°
Response Time : 2ms
Work Temperature : -25 ~ 60 °C
Work Environment : Indoor ( Not waterproof )

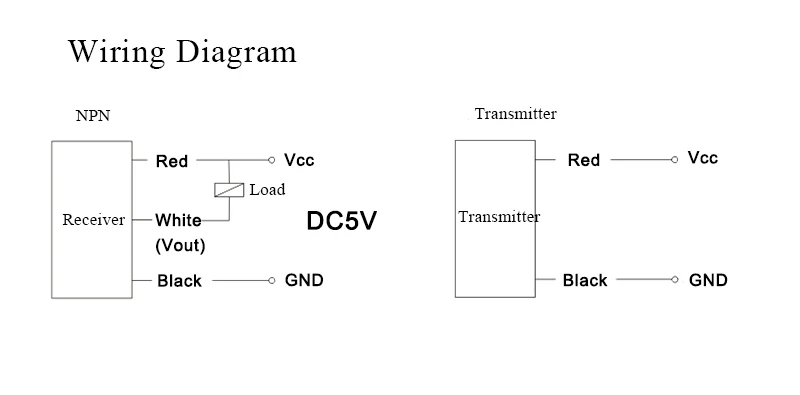

Normal Open : The voltage between Vcc and Vout is 0V, and when there have an obstacle, the voltage is 5V.
The voltage between Vout and GND is 5V, and when there have an obstacle, the voltage is 0V.
Normal Close : The voltage between Vcc and Vout is 5V, and when there have an obstacle, the voltage is 0V.
The voltage between Vout and GND is 0V, and when there have an obstacle, the voltage is 5V.
