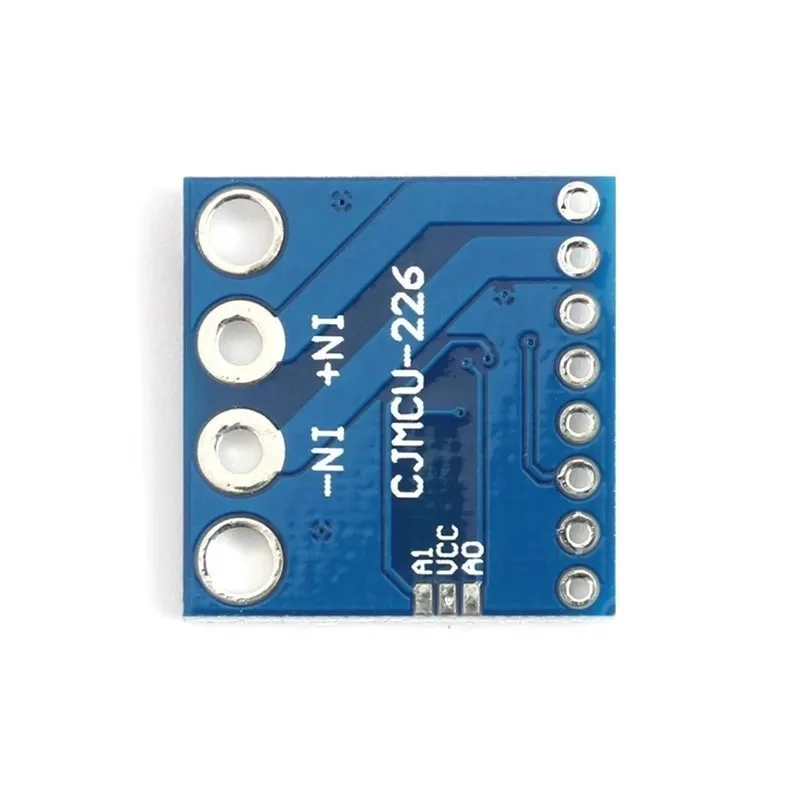

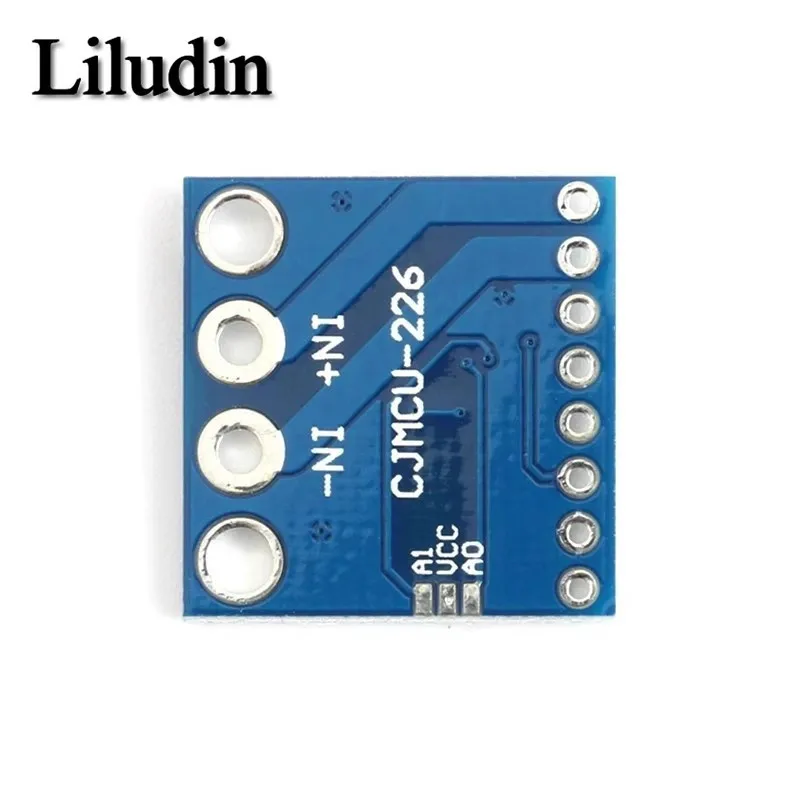

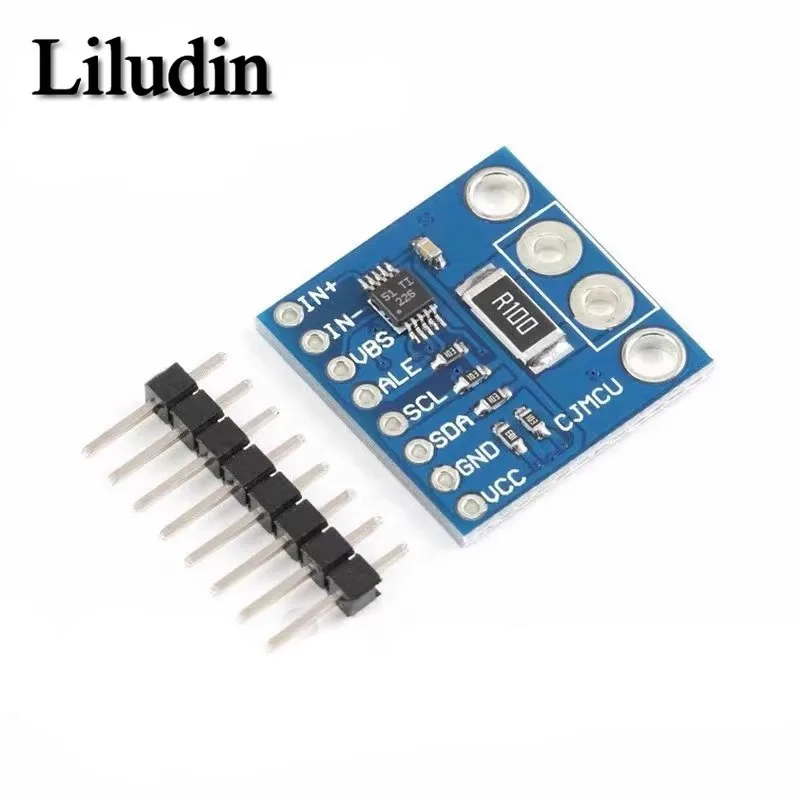

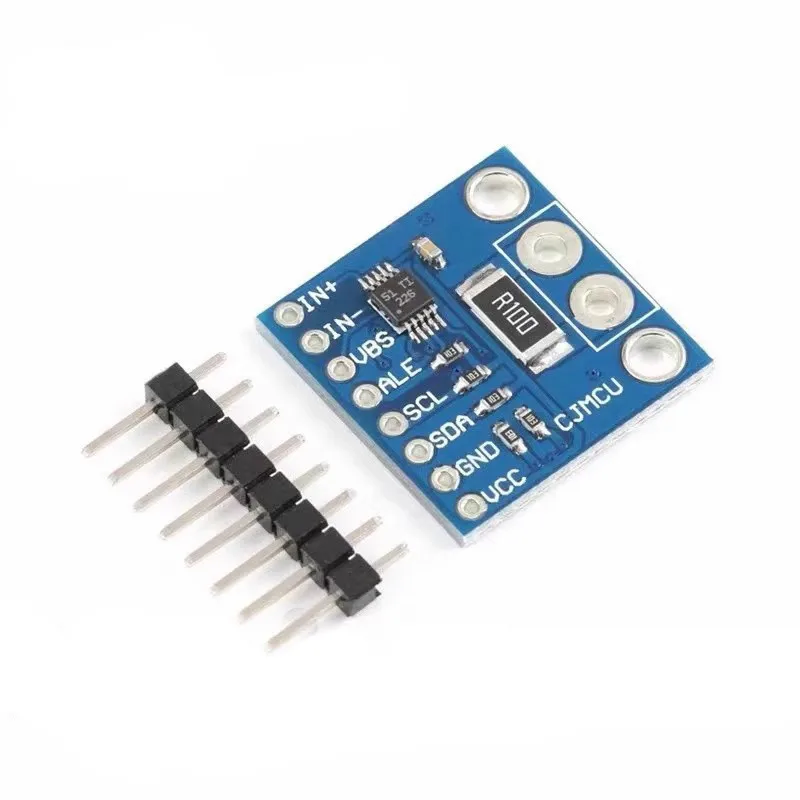

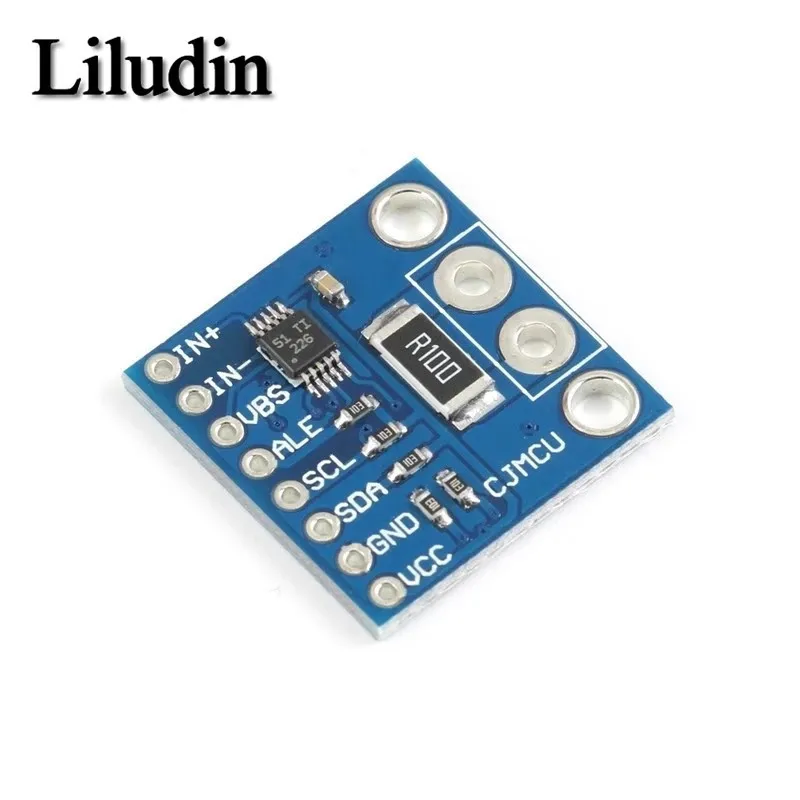

INA226 IIC I2C interface Bi-directional current/Power monitoring sensor module For Arduino

DescriptionThe INA226 is a current shunt and power monitor with an I2C™- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times,and averaging,combined with aninternal multiplier,enable direct readouts of current inamperes and power in watts.The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V,independent of the supply voltage. The device operates from a single 2.7-V to 5.5-

$9.99
In Stock
Secure checkout
Fast shipping
30-day returns

Need help before you buy?

Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.

(855) I-BUY-ROBO (855) 428-9762
Description
The INA226 is a current shunt and power monitor with an I2C™- or SMBUS-compatible interface. Thedevice monitors both a shunt voltage drop and bussupply voltage. Programmable calibration value,conversion times,and averaging,combined with aninternal multiplier,enable direct readouts of current inamperes and power in watts.
The INA226 senses current on common-mode bus voltages that can vary from 0 V to 36 V,independent of the supply voltage. The device operates from a single 2.7-V to 5.5-V supply,drawing a typical of 330μA of supply current. The device is specified over the operating temperature range between –40°C and125°C and features up to 16 programmable addresses on the I2C-compatible interface
Features
Senses Bus Voltages From 0 V to 36 V

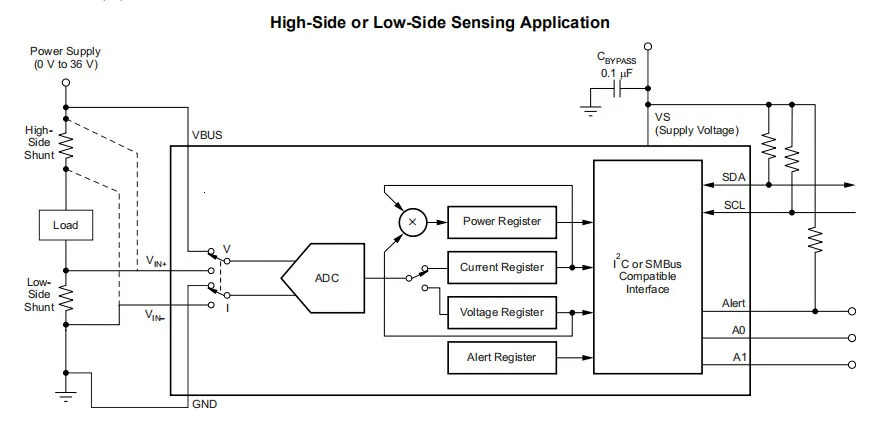

• High-Side or Low-Side Sensing
• Reports Current,Voltage,and Power
• High Accuracy:
  – 0.1% Gain Error (Max)
  – 10 μV Offset (Max)
• Configurable Averaging Options
• 16 Programmable Addresses
• Operates from 2.7-V to 5.5-V Power Supply
• 10-Pin,DGS (VSSOP) Package
Applications
• Servers
• Telecom Equipment
• Computing
• Power Management
• Battery Chargers
• Power Supplies
• Test Equipme

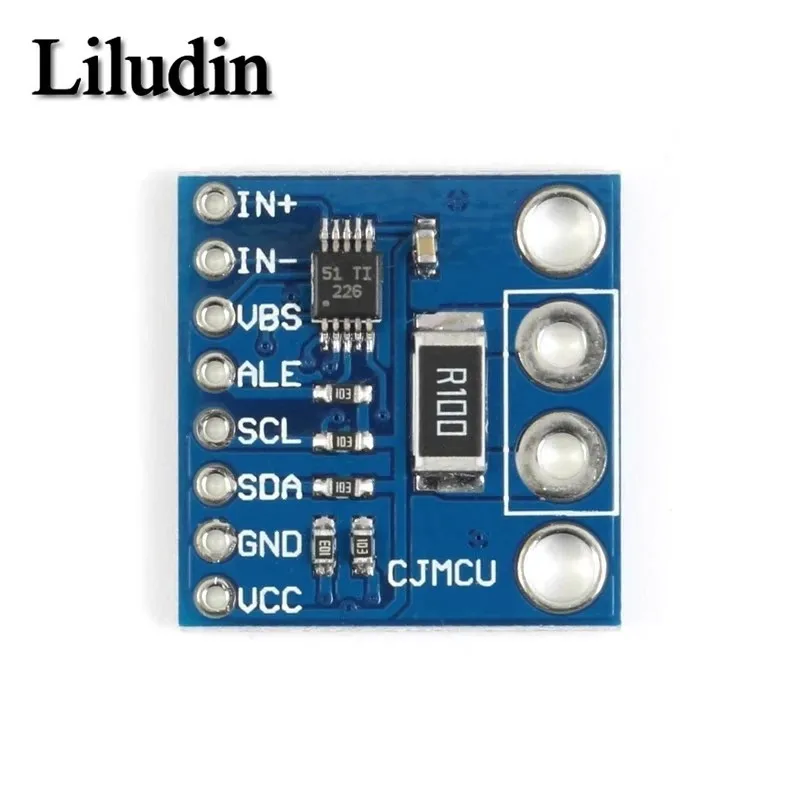

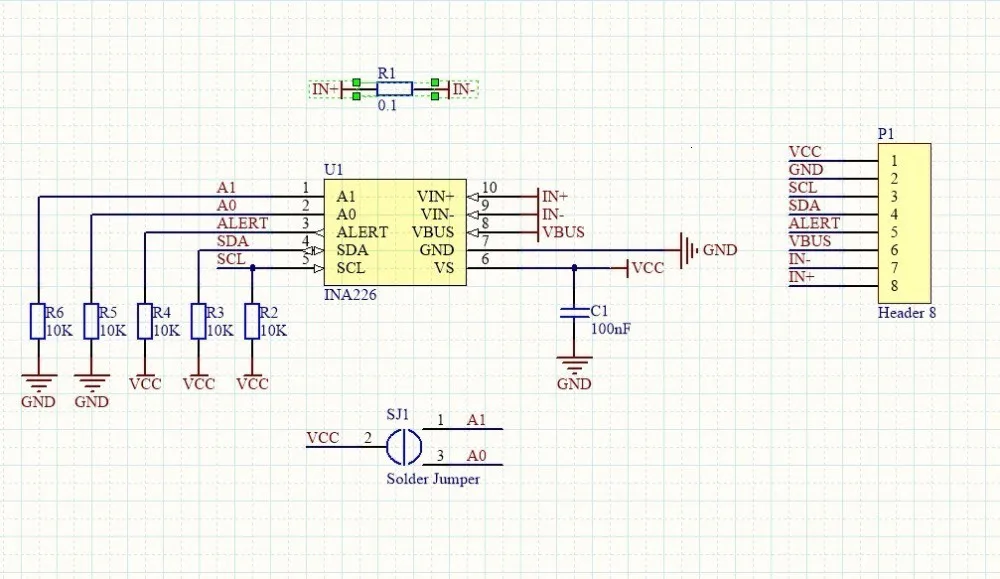

Pin Description

  • VBUS: bus voltage input

  • SDA/SCL: IIC bus data and clock signal lines

  • ALERT: Multi-function alarm output

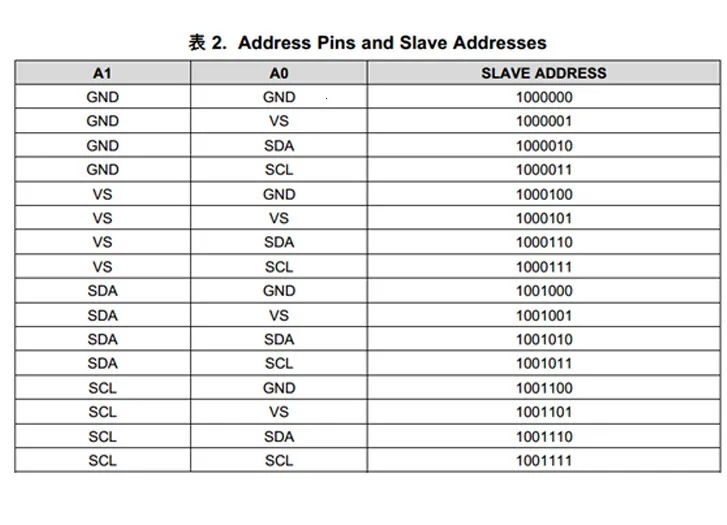

  • A0/A1: IIC address line

  • IN+/IN-: non-inverting analog input,inverting analog input
