Snakol T600 Infrared Thermometer Non-contact -50~600℃ Digital Laser Temperature Meter LCD display Pyrometer Point Gun Tester
Infrared Thermometer Non-contact -50~600℃ Digital Laser Temperature Meter LCD display Pyrometer Point Gun Tester ToolsIntroduction:This series of infrared thermometers can measure the surface temperature of opaque objects. The optical components of the measuring instrument can sense the reflected and transmitted energy emitted by objects, and collect the energy onto the detector, making it suitable for quickly measuring the surface temperature of various high-temperature, toxic, or difficult to
Need help before you buy?
Call iBuyRobotics for product guidance, compatibility questions, bulk orders, or support.
(855) I-BUY-ROBO (855) 428-9762This
series of infrared thermometers can measure the surface temperature of
opaque objects. The optical components of the measuring instrument can
sense the reflected and transmitted energy emitted by objects, and
collect the energy onto the detector, making it suitable for quickly
measuring the surface temperature of various high-temperature, toxic, or
difficult to contact objects.
The thermometer consists of an optical
system, photoelectric sensor, signal amplifier, signal processing
circuit, and LCD display. The optical system gathers the infrared energy
radiated from the surface of an object to a photoelectric sensor, which
converts the energy into corresponding electrical signals. The signals
are then converted into readings and displayed on an LCD through a
signal amplifier and signal processor circuit.
Specifications:
Measuring range°C | -50°C-600°C | Battery | AAA battery X 2 (Without Battery) |
Measuring range°F | -58°F-1112°F | Screen | LCD backlit display |
Object distance ratio | D:S =12:1 | °C/°F adjustable | √ |

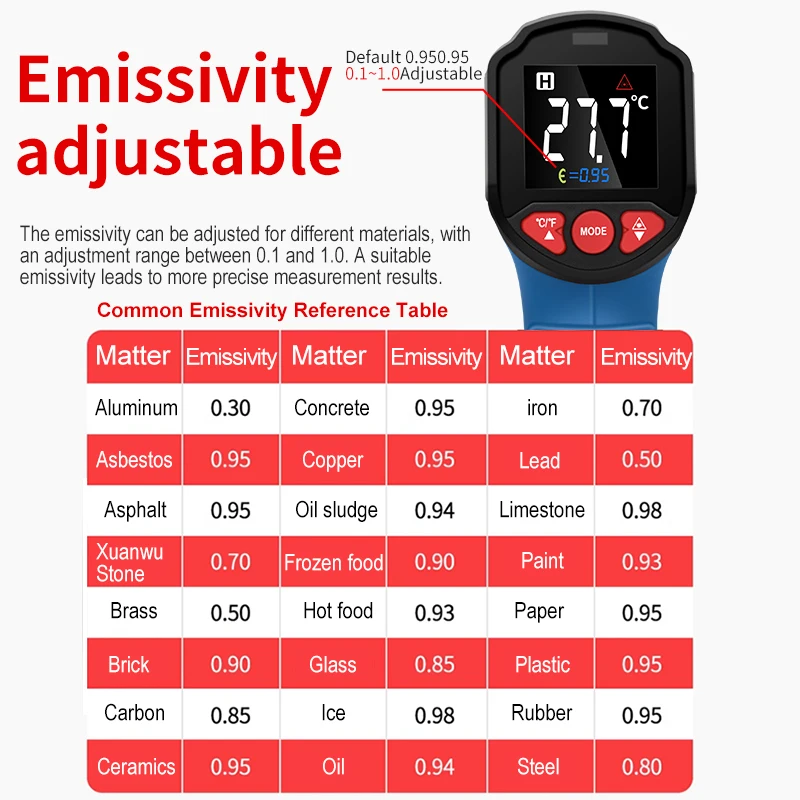

Emissivity | The default 0.95 is adjustable | Maximum temperature minimum temperature | √ |

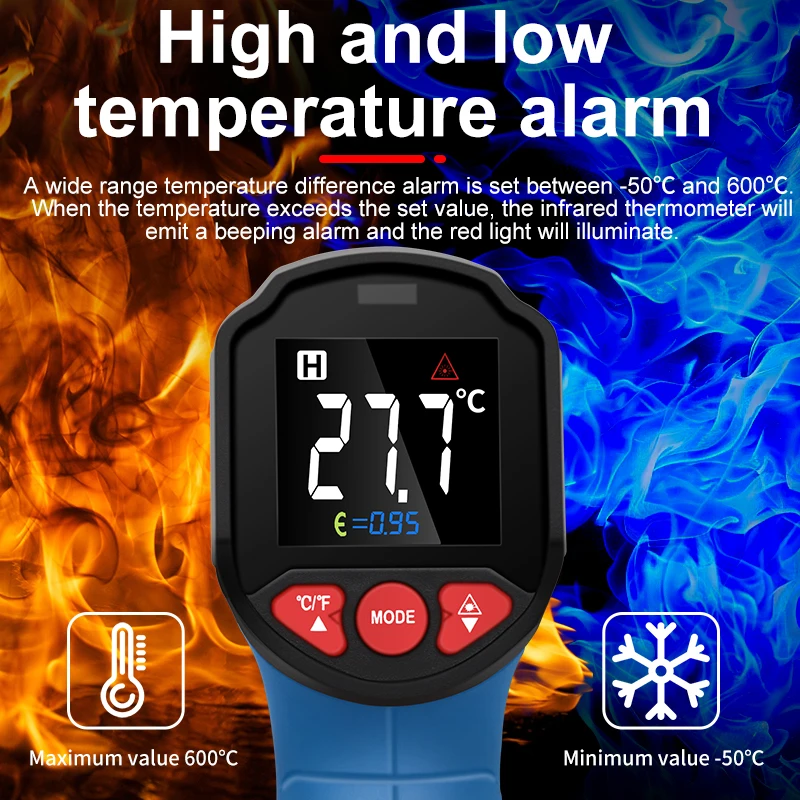

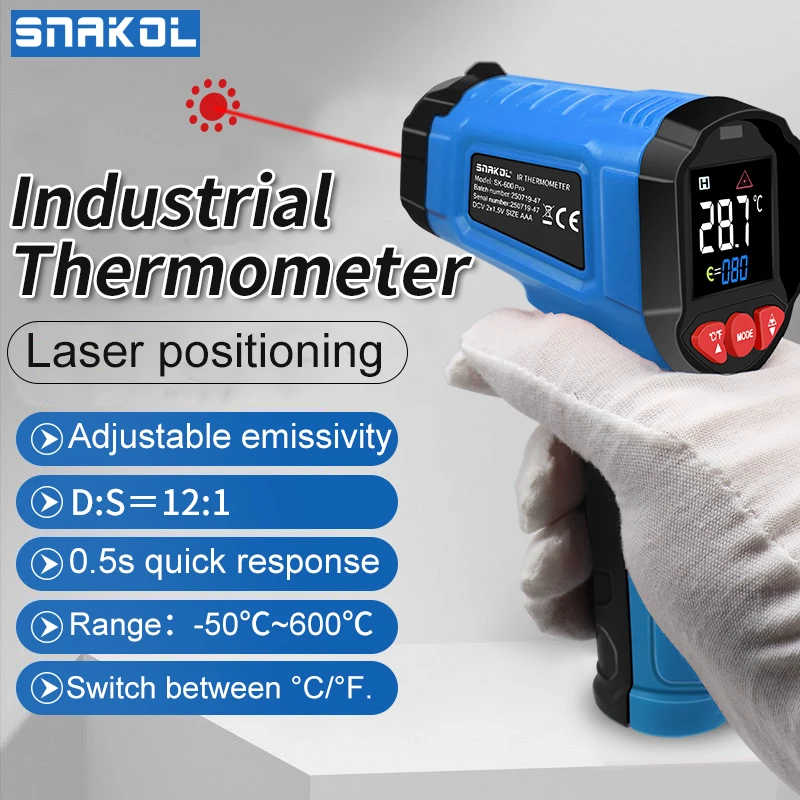

Laser positioning | √ | High low temperature warning | √ |
Auto power off | √ | Maximum value | √ |
Low power prompt | √ | Weight | 105g |
Data retention | √ | Material | ABS |
1 * Infrared Thermometer
1 * Packaing box
1 * Manual
Safety Notice
1. Warning:
To avoid potential harm to users, please read and follow the instructions below
Please do not aim the laser at the eyes or indirectly aim it at the eyes through reflective surfaces when using this device;
The
measuring instrument cannot measure through transparent surfaces such
as glass/plastic, otherwise the value measured by this instrument will
be the surface temperature of the transparent object;
Steam/ash
layer/smoke or other particles can form obstacles to the lens of the
instrument, affecting the accuracy of the measurement.
2. Attention:
To avoid damaging the thermometer or the device being tested, please protect them from the following effects.
EMF fields generated by arc welding machines and induction heaters;
Thermal
shock (due to significant or sudden temperature changes caused by the
environment, wait for 30 minutes for the thermometer to reach a stable
state before use).
Do not place the thermometer near or on high-temperature objects.
